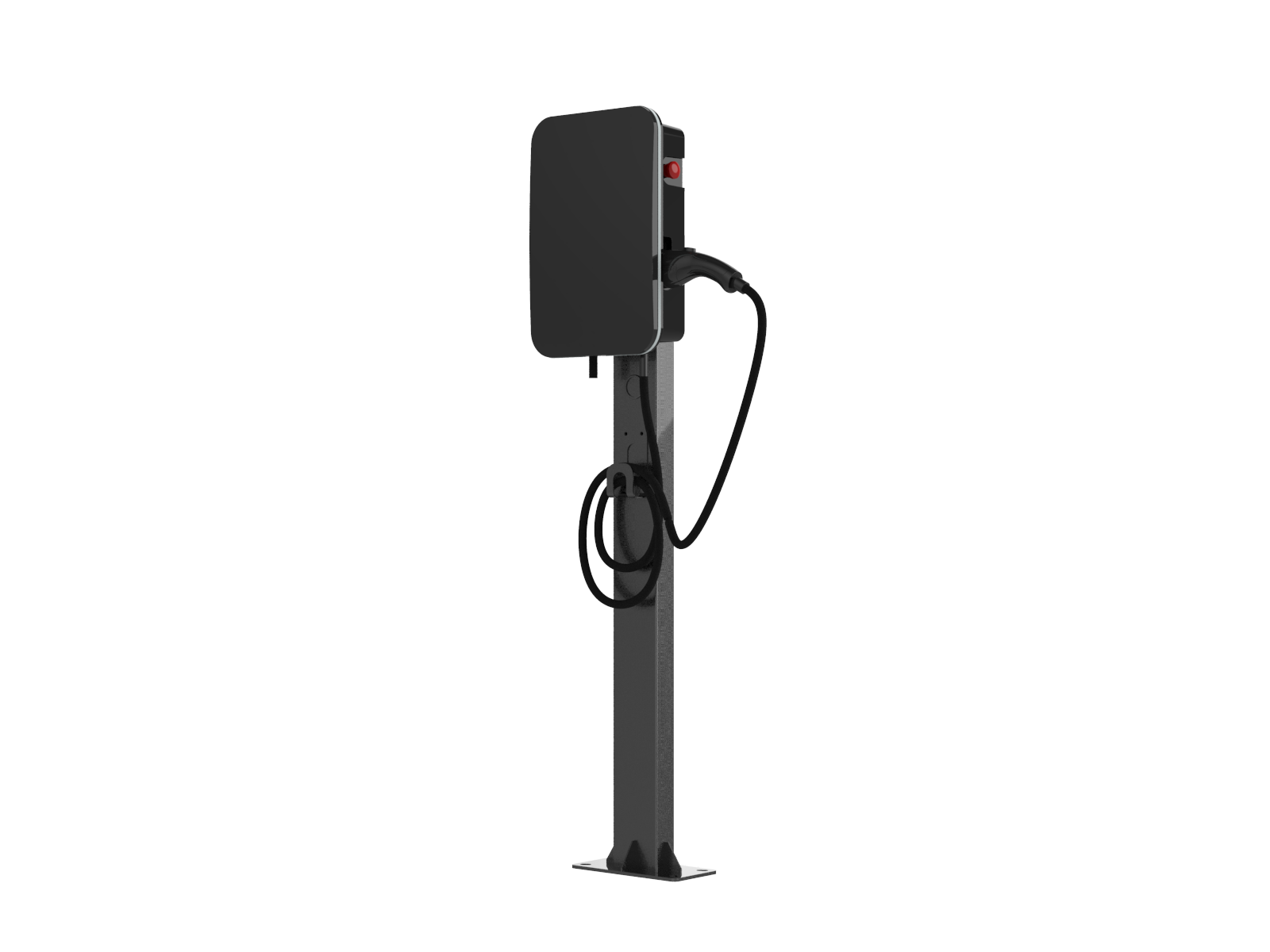

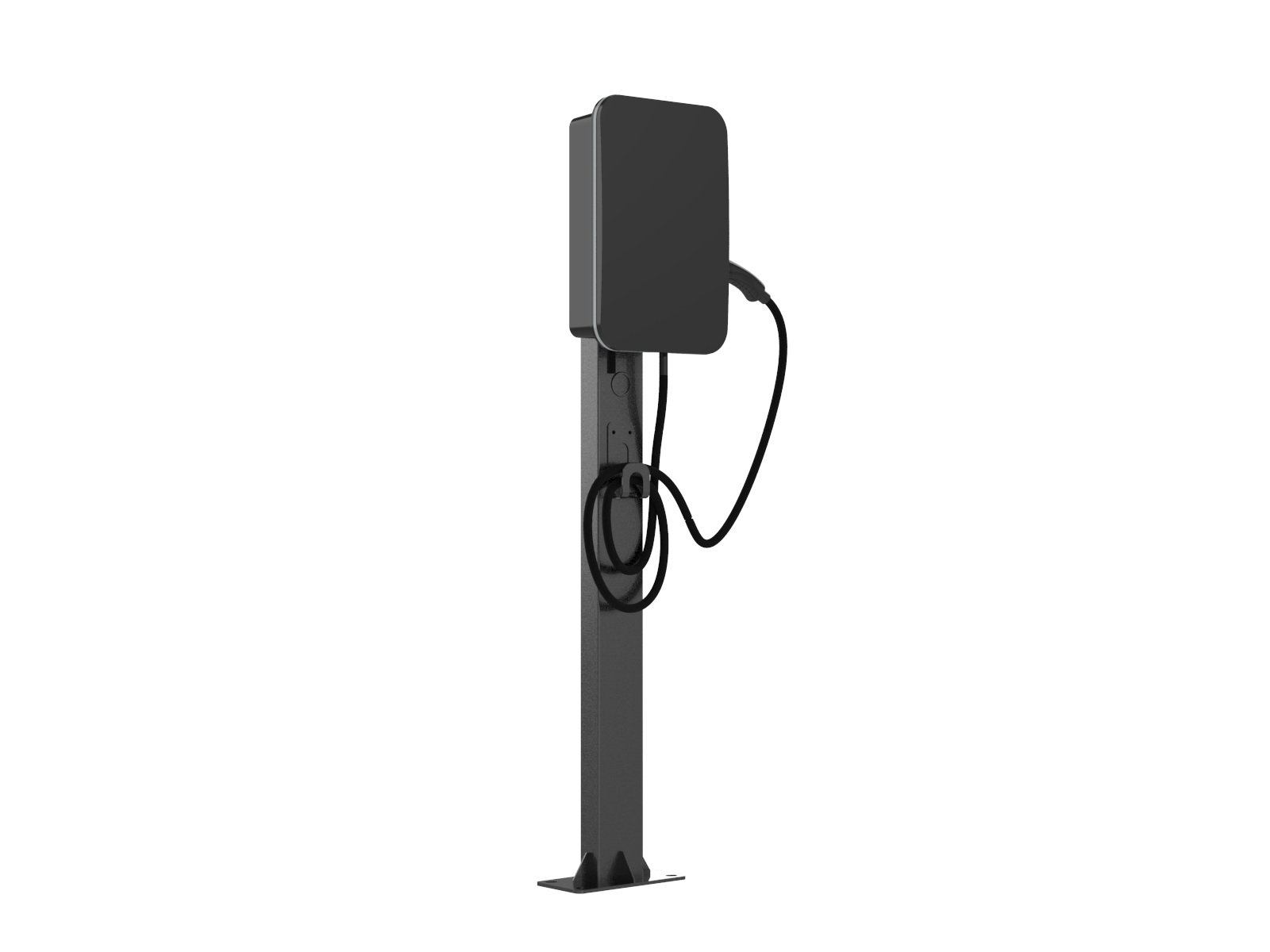

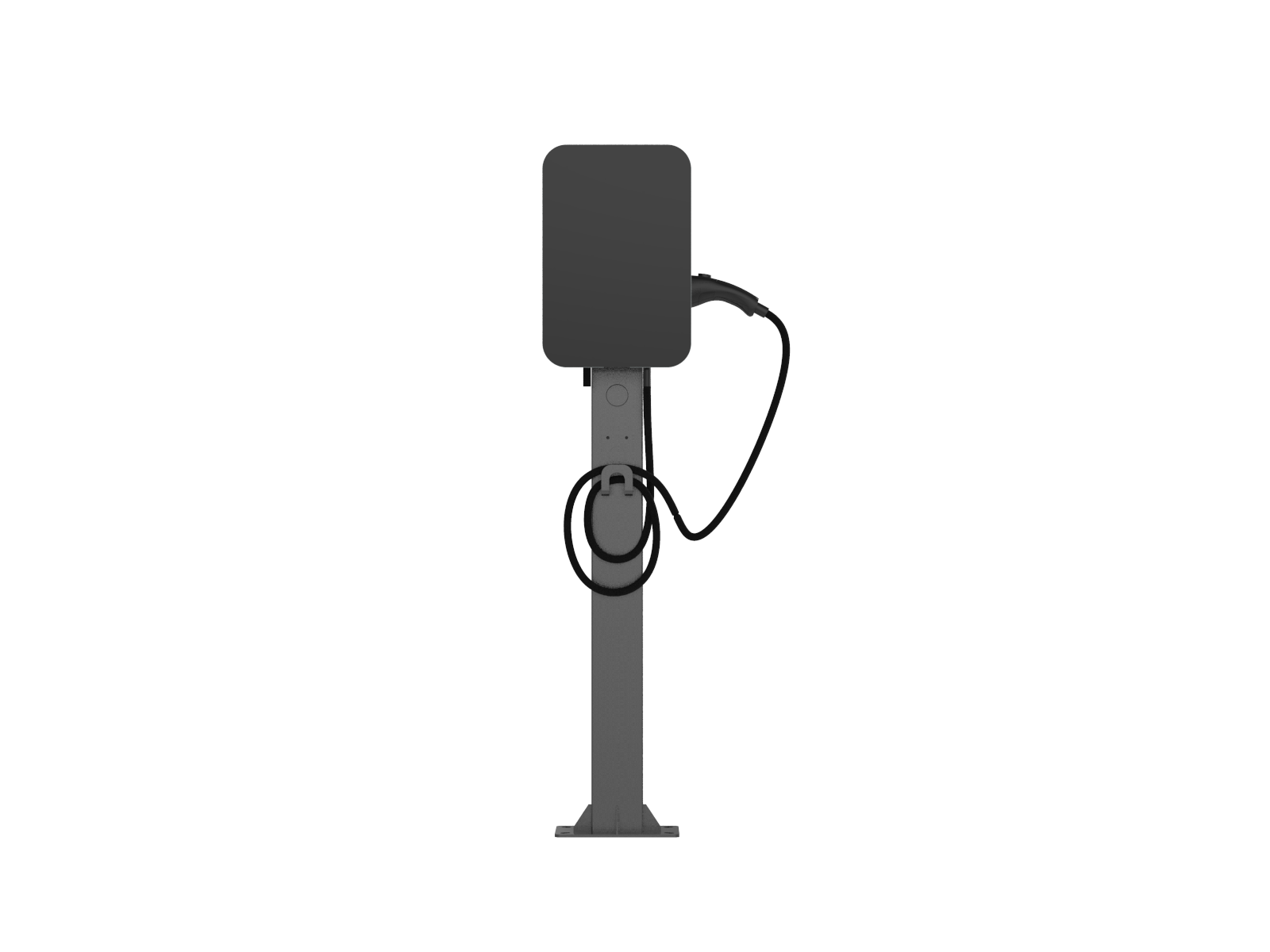

DQY-CY9200 Automotive Charging PileCharging Station
The DQY-CY9200 series integrated AC charging piles (7kW, 11kW, 21kW), compact, easy to operate, safe, reliable, with control, billing, communication. A6 series: 60kW AC system, 6 interfaces, charges 6 EVs simultaneously.
-
These charging stations communicate in real-time with station-level monitoring or operational management centers via 4G/5G networks, uploading live charging data. They are ideally suited for residential communities, underground garages, commercial parking lots, and office buildings.
Core Advantages & Features
-
Long Life & Low StandbyExceptionally long service life with a standby power consumption as low as 5W.
01 -
Smart MonitoringMulti-color LED indicators; supports remote startup and real-time data monitoring.
02 -
High Accuracy ChargingHigh metering accuracy of up to Active Power Class 1; supports orderly charging and intelligent power adjustment.
03 -
Flexible InstallationFlexible wall-mounted or floor-standing options for easy assembly, installation, and maintenance.
04 -
APP-Enabled & DurableAPP functionality for station locating, charging scheduling, and fast charging; constructed with high-quality, heat-resistant PBT plastic.
05 -
Comprehensive SafetyComprehensive safety with nine protection layers, an emergency stop switch, and an IP54 rating with UV protection for harsh environments.
06
Technical Parameters
| Item | Parameters Requirements | ||
|---|---|---|---|
| Product model | A1-7 AC Charging Station | A1-11 AC Charging Station | A1-21 AC Charging Station |
| AC input voltage | AC220±20% V | AC380±20% V | AC380±20% V |
| Maximum output current | 32 A | 16 A | 32 A |
| Maximum output power | 7 kW | 11 kW | 21 kW |
| AC power frequency | 50±1 Hz | 50±1 Hz | 50±1 Hz |
| Protection rating | IP54 | IP54 | IP54 |
Leakage protection device | ≤30 mA | ≤30 mA | ≤30 mA |
| Ambient temperature | -20℃-50℃ | -20℃-50℃ | -20℃-50℃ |
| Storage temperature | -40℃-75℃ | -40℃-75℃ | -40℃-75℃ |
| Relative humidity | 5%-95% | 5%-95% | 5%-95% |
| Altitude | ≤2000 m | ≤2000 m | ≤2000 m |
| Atmospheric pressure | 80 kPa | 80 kPa | 80 kPa |
| Output method | Single gun | Single gun | Single gun |
| Inlet method | Bottom inlet, bottom outlet | Bottom inlet, bottom outlet | Bottom inlet, bottom outlet |
