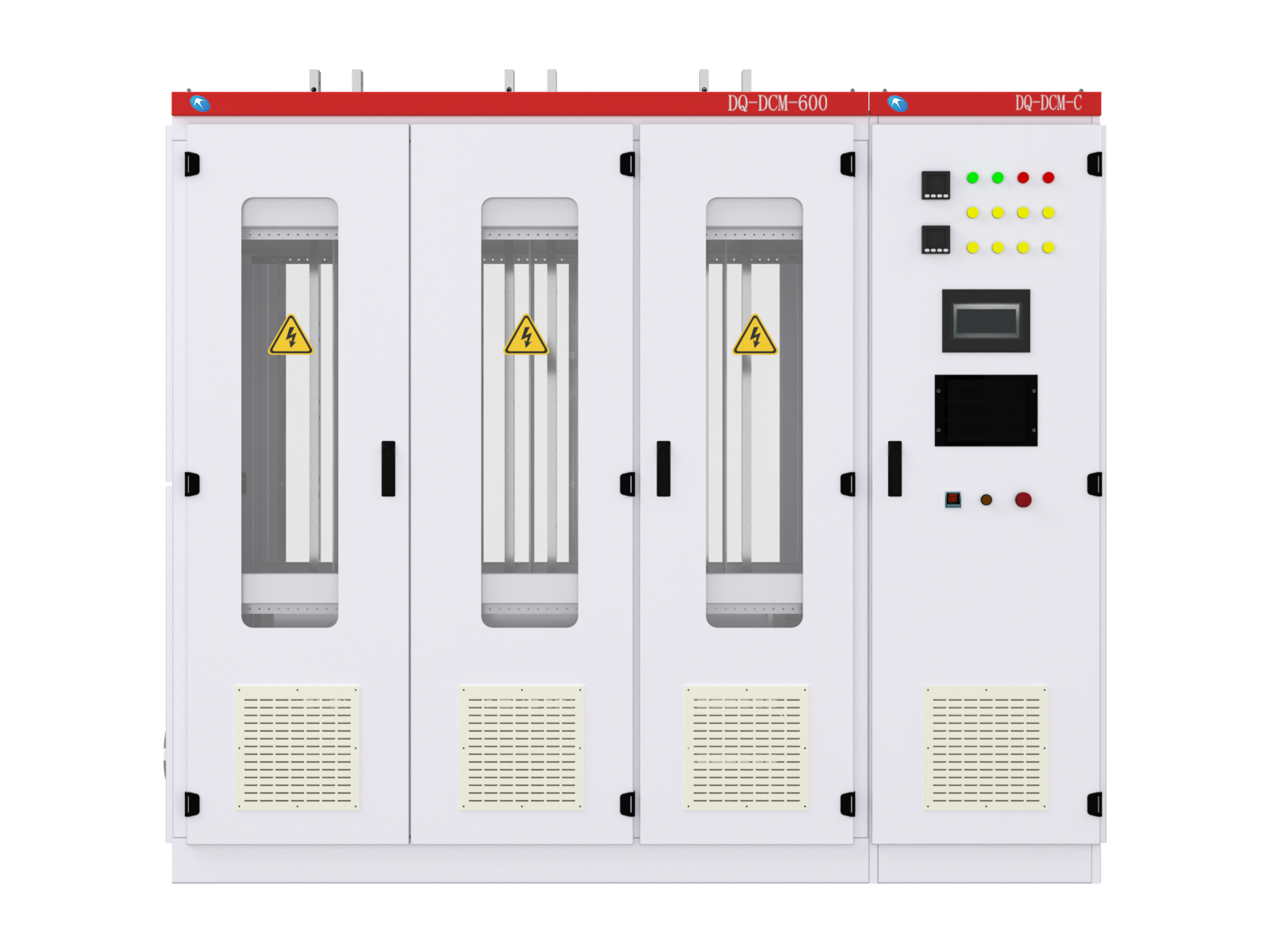

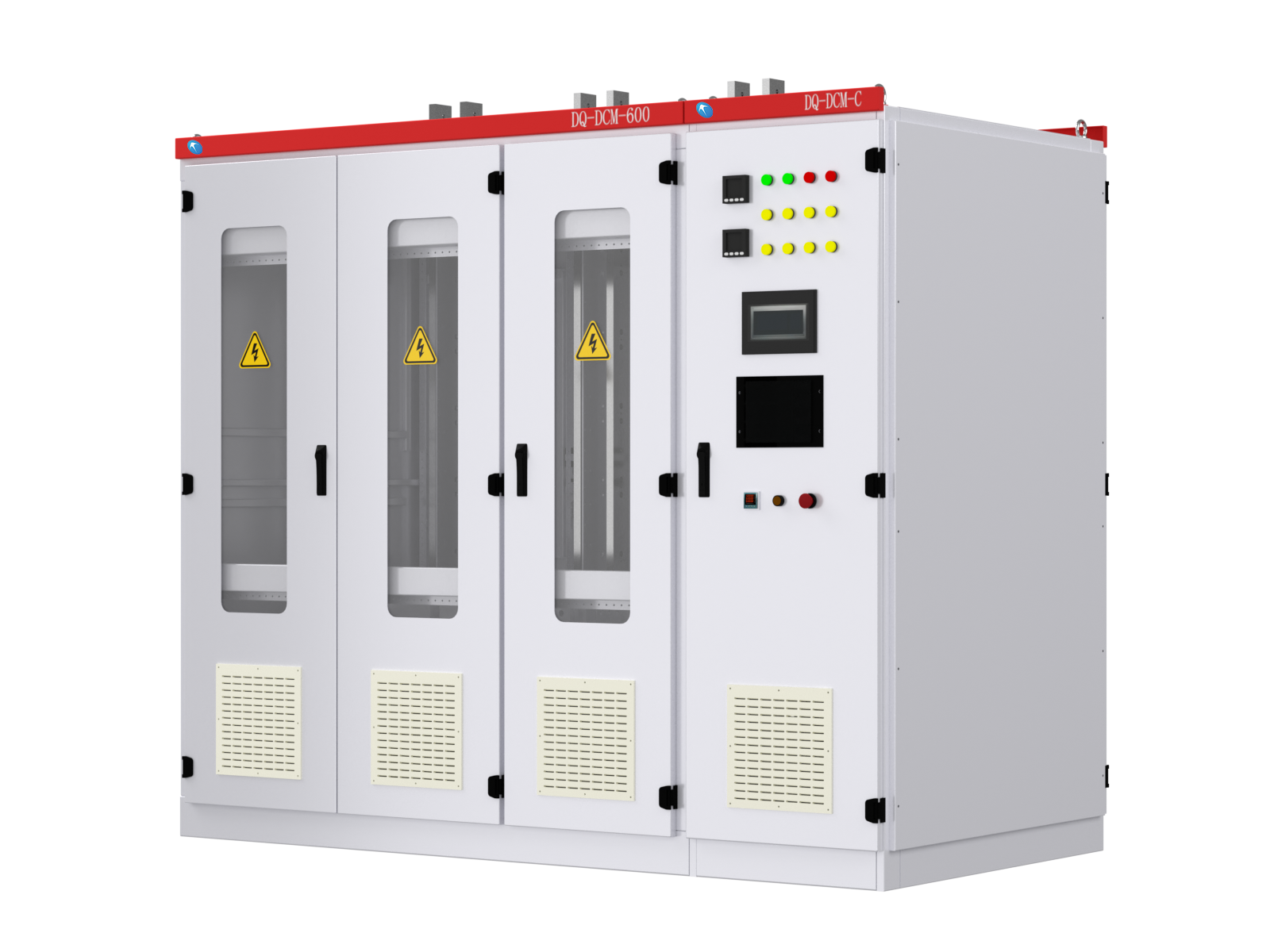

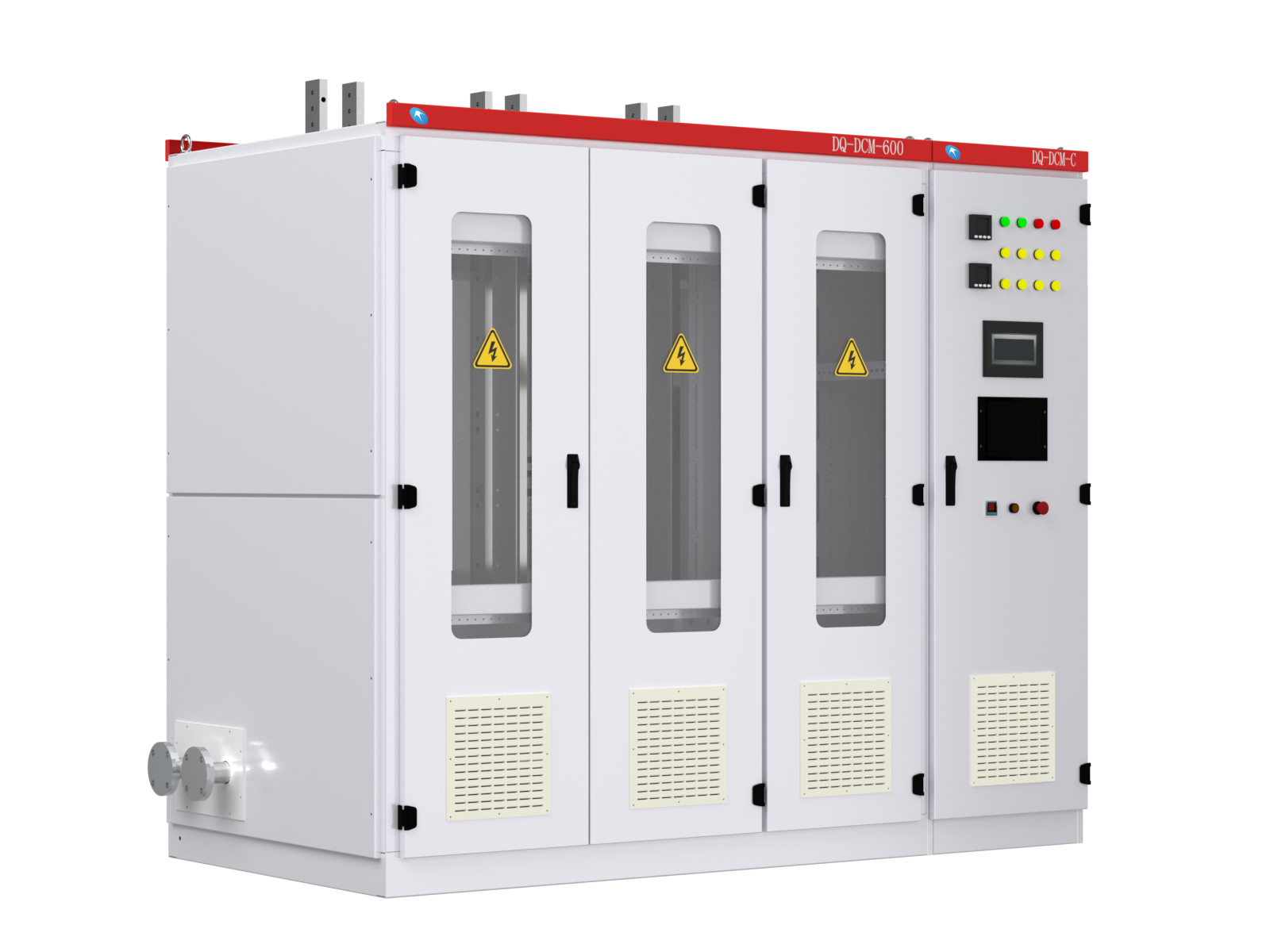

DQ-DCM DC Power SupplyPower Supply
The DQ-DCM system is a high-power DC power supply based on leading domestic and international technology. Utilizing diode and thyristor phase-shift control, it achieves efficient and stable high-power conversion for demanding applications in aerospace, metallurgy, electrolysis, and new materials industries. The system complies with GB/T 3859 and IEC standards.
-
It is characterized by high power quality and efficiency, significantly reducing DC ripple and grid harmonic pollution. The integrated core software and hardware technology ensures strong functionality and adaptability for custom applications, providing a reliable power source that meets strict operational standards.
Core Advantages & Features
-
Enhanced ReliabilityHigh reliability with comprehensive protection.
01 -
Optimized EfficiencyHigh efficiency through optimized design.
02 -
Low-Ripple PFLow ripple output and high power factor.
03 -
Core IntegrationIn-house core software, hardware, and integration technology.
04 -
Corrosion-Resistant CubicleRobust, CNC-processed cubicle with corrosion-resistant coating.
05 -
Dual InsulationBalanced press-fit design and double insulation.
06
Technical Parameters
| Basic Parameters | |
|---|---|
| Rectifier type | Diode rectifier, thyristor rectifier |
| Pulse number | 12-pulse, 24-pulse |
| Installation location | Indoor |
| Input voltage | 10 kV, 50 Hz, 3 PH |
| Output voltage | 0~750 V (DC) or customized according to customer requirements |
| Output current | DC200 A~20 kA or customized according to customer requirements |
| Control power supply | AC 220 V / 380 V |
| Output | Fiber-optic trigger control, regulating power cabinet output |
| Control | PLC fully automatic intelligent control |
| Stability accuracy | ±0.1% |
| Power factor | ＞0.98 |
| Harmonic content | Compliant with GB/T 14549-1993 "Power Quality - Harmonics in Public Supply Network" requirements for current and voltage harmonics |
| Operating mode | Continuous operation |
| Cooling method | Water-to-water cooling |
| Protection functions | Overvoltage protection, commutation protection, fault protection, overheat protection, etc. |
