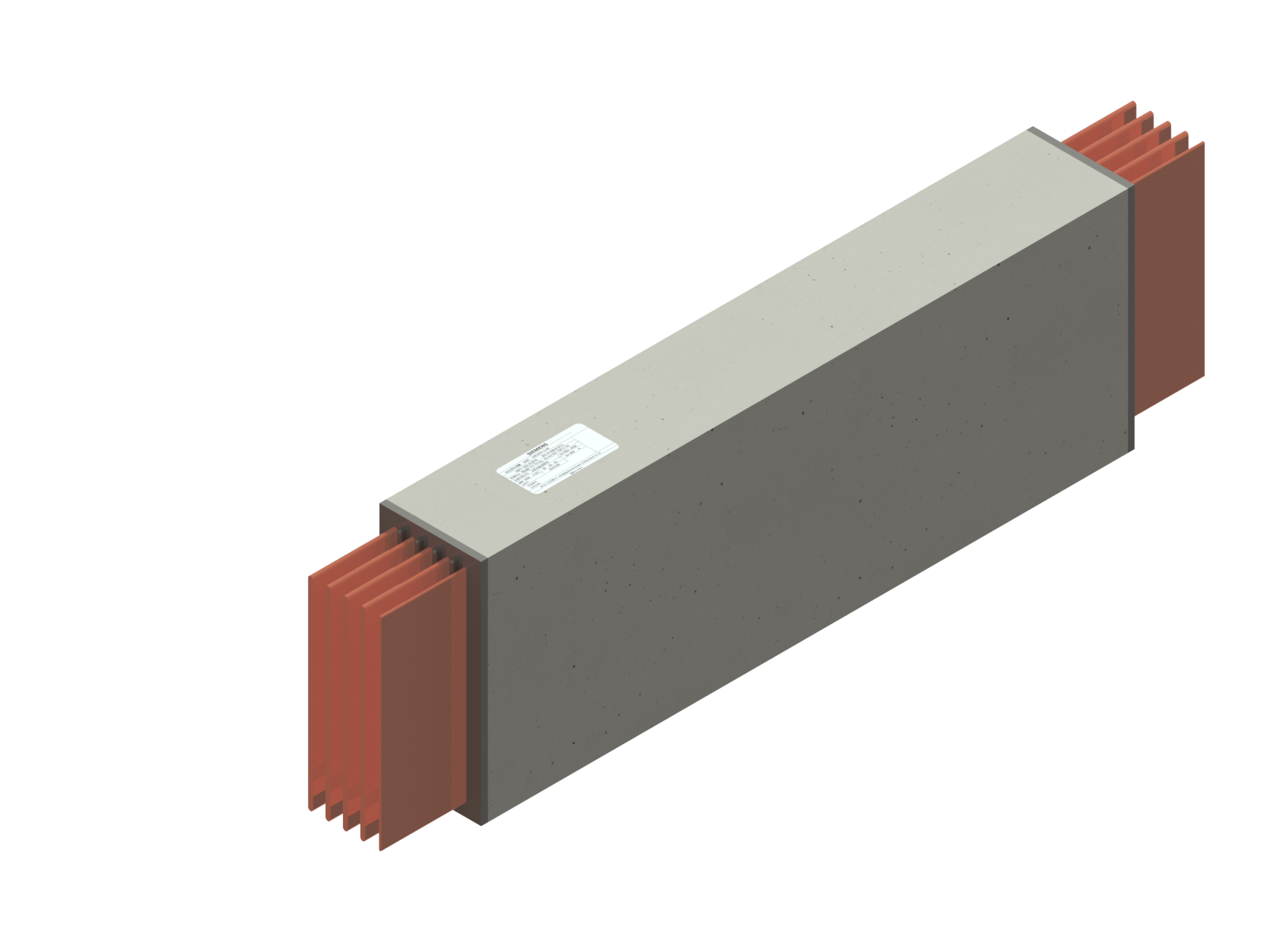

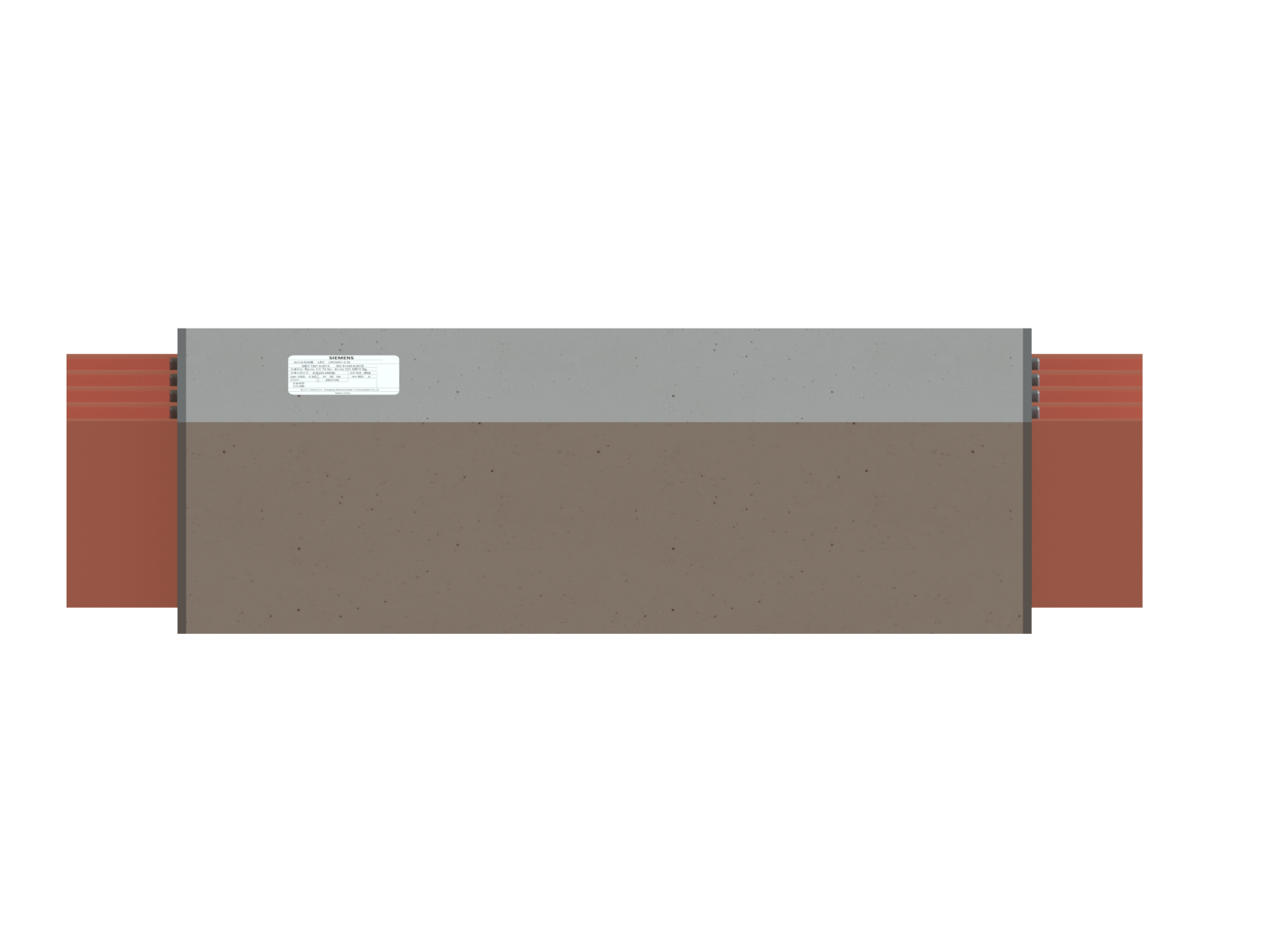

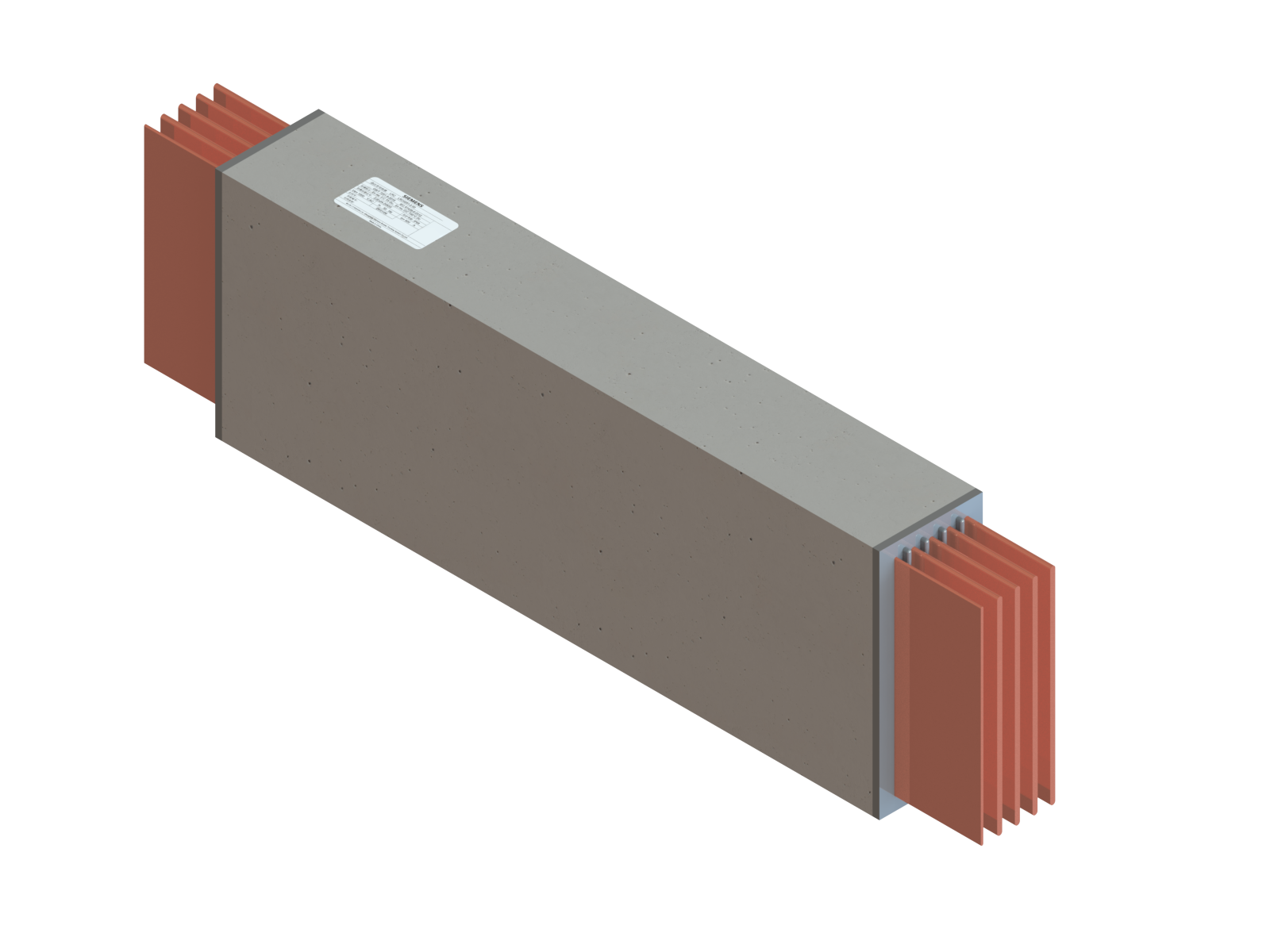

LR Cast-Resin Busbar Trunking SystemBusbar and Cable Tray
LR Cast-Resin Busbar Trunking System provides IP68 high protection such as waterproof, fire/corrosion/explosion-resistant, eco-safe, maintenance-free. Ideal for harsh environments, widely used in petrochemical, coal mining, electronics, docks, shipyards, wastewater treatment, and steel industries.
-
IP68 protection enables long-term submerged reliable operation & stable power transmission. Boasting high dynamic-thermal stability, low fire load, compact design (space-saving), easy maintenance-free installation, and short commissioning time, its epoxy-resin and inert mineral composite enclosure ensures low magnetic permeability, low impedance, and minimal power loss.
Core Advantages & Features
-
Manufacturing ProcessEquipped with German vacuum-casting and mixing technology, enabling digitally controlled continuous metering, homogeneous blending, and vacuum mixing of raw materials.
01 -
Production FormulaThe epoxy resin and curing agent mixture provides low shrinkage, high fluidity, easy curing, strong adhesion, and short solidification time.
02 -
Busbar ConnectionUses monobloc torque-bolt integrated connectors for simple, time-saving, and reliable installation.
03 -
Waterproof DesignWith IP68 protection, the system prevents dust ingress and ensures long-term reliable operation even under continuous submersion.
04 -
Fireproof DesignThe LR series busbar can prevent flame propagation without requiring additional fire-barrier modules.
05 -
Anti-Corrosion DesignThe cured synthetic resin provides excellent resistance to alkalis, acids, solvents, and most molds, making it suitable for extreme environments.
06 -
Explosion-Proof DesignThe epoxy-cast busway system features a highly sealed structure that prevents flammable gases from coming into contact with live conductors.
07
Technical Parameters
| Basic Parameters | |
|---|---|
| Current rating | 400 A ~ 6300 A |
| Rated insulation voltage | 1000 V |
| Rated operating voltage | 1000 V |
| Rated frequency | 50/60 Hz |
| Rated operating current | 400-6300 A |
| Protection degree | IP68 |
| Enclosure material | Epoxy resin and inorganic mineral mixture |
| Installation method | Horizontal, vertical, or overhead installation |
| Color | Light grey, approx. RAL7032 |
Product Documents
-
Product Brochure
-
LR Super Compact Resina Busbar System
2025-11-25
Download PDF
