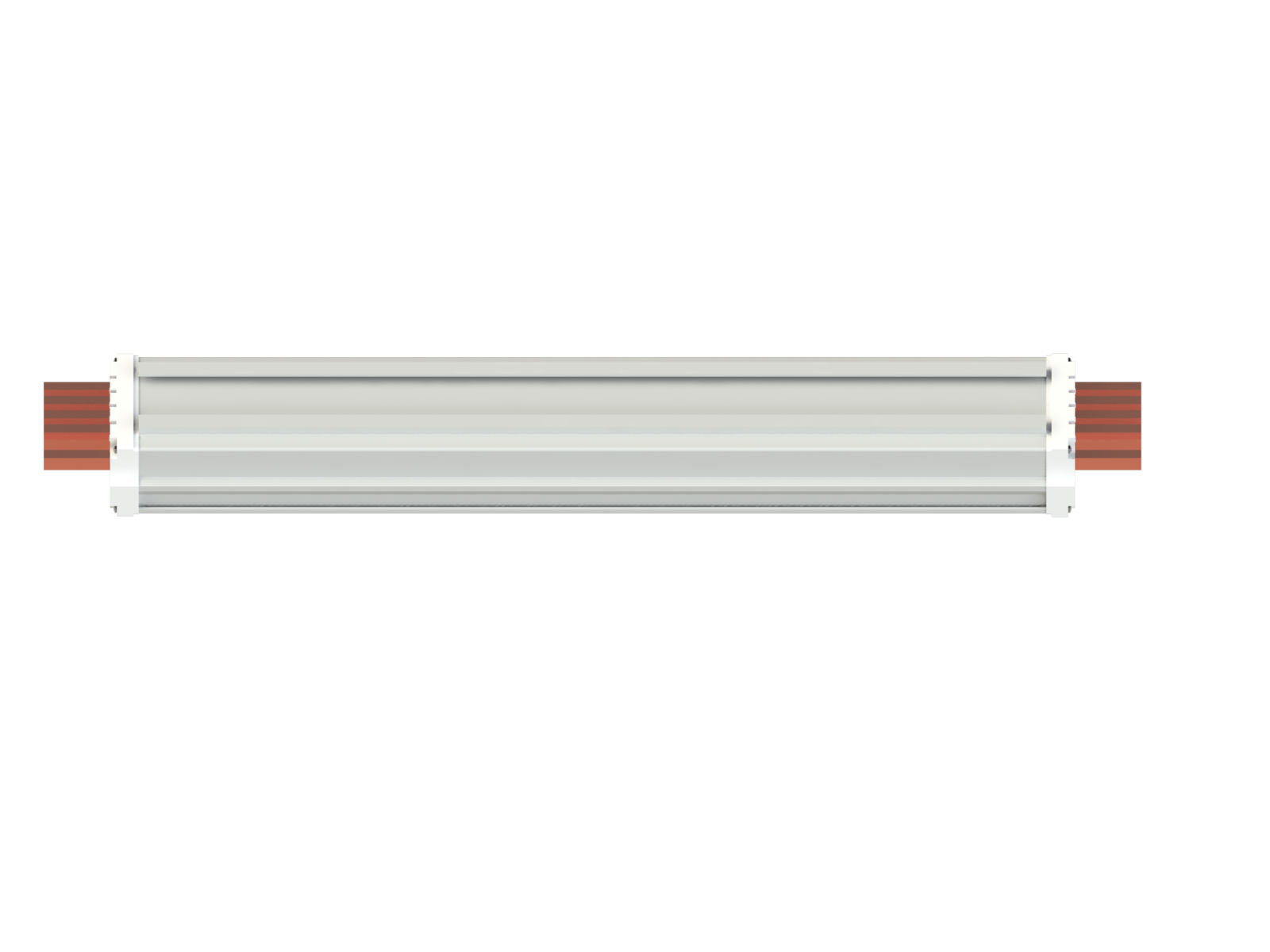

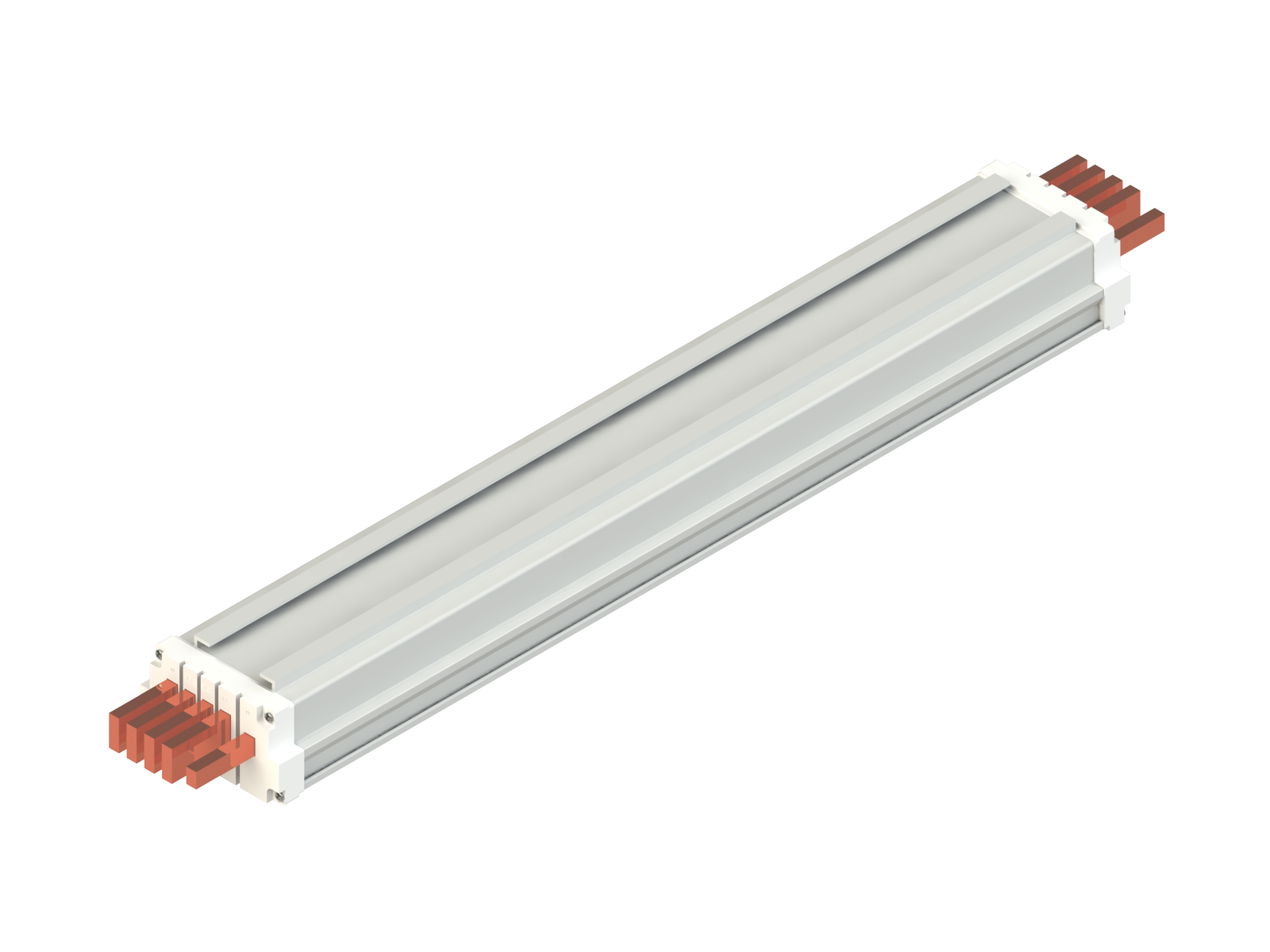

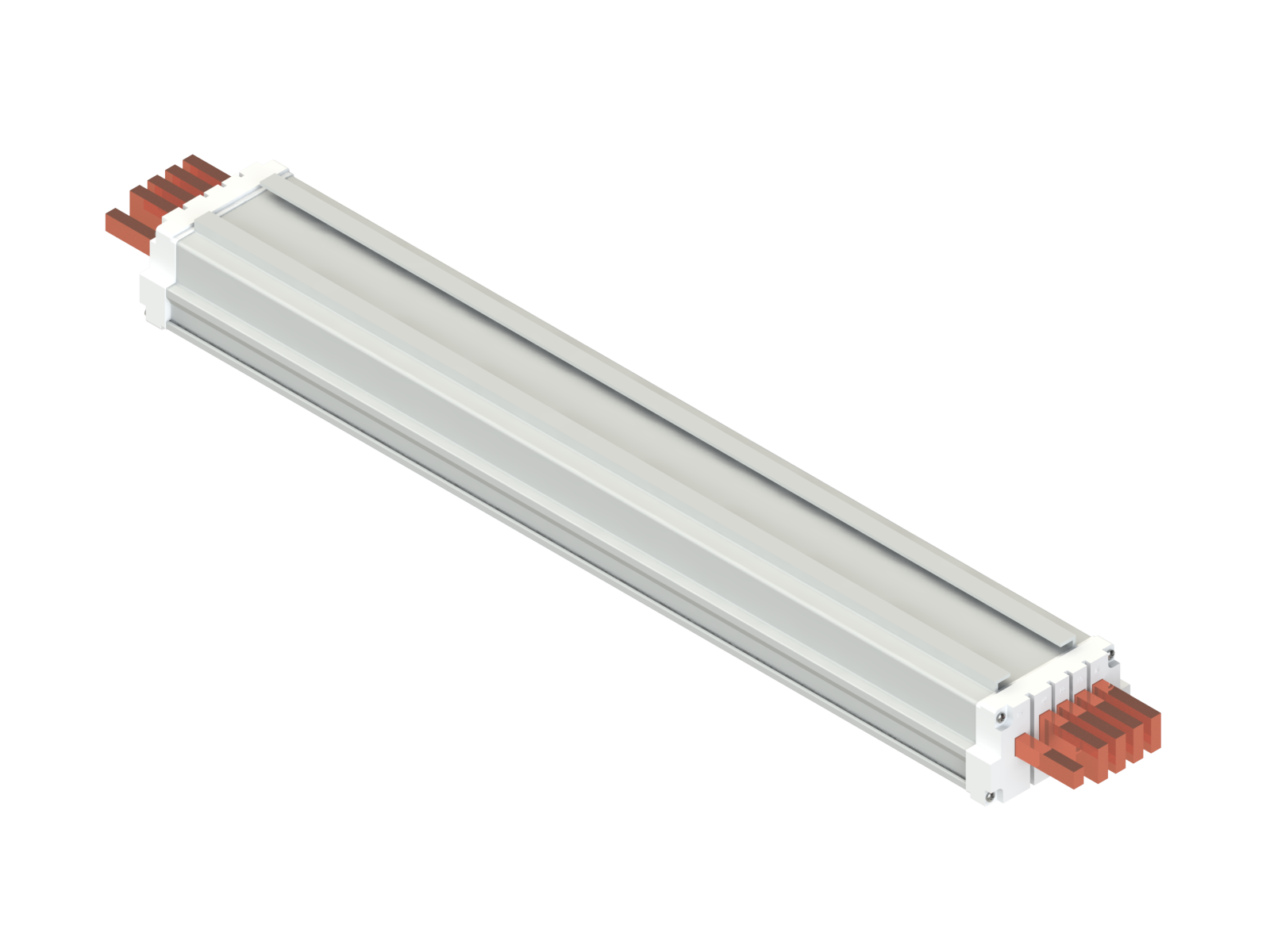

XL-F Data Center Busbar Trunking SystemBusbar and Cable Tray
The XL-F Series Air-Type Busbar Trunking System is designed for three-phase AC 50 Hz/1000 V intelligent distribution systems in data-center terminal applications.
-
The XL-F Air-Type Busbar features a compact structure, reliable performance, flexible design, long service life, and easy installation and maintenance. It supports full-position plug-in boxes, has been certified by CCC and ASTA. It has passed seismic tests up to intensity 9, with a service life exceeding 30 years.
Core Advantages & Features
-
Lightweight Corrosion-ResistantConstructed from high-quality aluminum–magnesium alloy profiles, the enclosure is lightweight, corrosion-resistant, and low in magnetic loss with a clean, modern finish.
01 -
Halogen-Free Heat-ResistantThe insulating materials are halogen-free thermoplastic PA6 (nylon) and thermoset DMC, providing Class B (130 °C) heat resistance and excellent mechanical and electrical properties.
02 -
Real-Time Monitoring & AlertsThe feeder and plug-in boxes are equipped with multifunction meters that enable real-time monitoring of the busway and its downstream power consumption, while also providing fault alarms and related alerts.
03
Technical Parameters
| Basic Parameters | |
|---|---|
| Current rating | 160 A ~ 630 A |
| Standards compliance | IEC61439.1/6 and GB/T7251.1/6 |
| Ambient temperature | -5℃~40℃（average not exceeding 35℃） |
| Protection degree | IP43 |
| Enclosure material & finish | Aluminum-magnesium alloy, powder-coated RAL 7032 (or as specified) |
| Rated insulation voltage | 1000 V |
| Rated operating voltage | 1000 V |
| Rated frequency | 50 Hz |
| Power frequency withstand voltage | 2200 V/5s |
