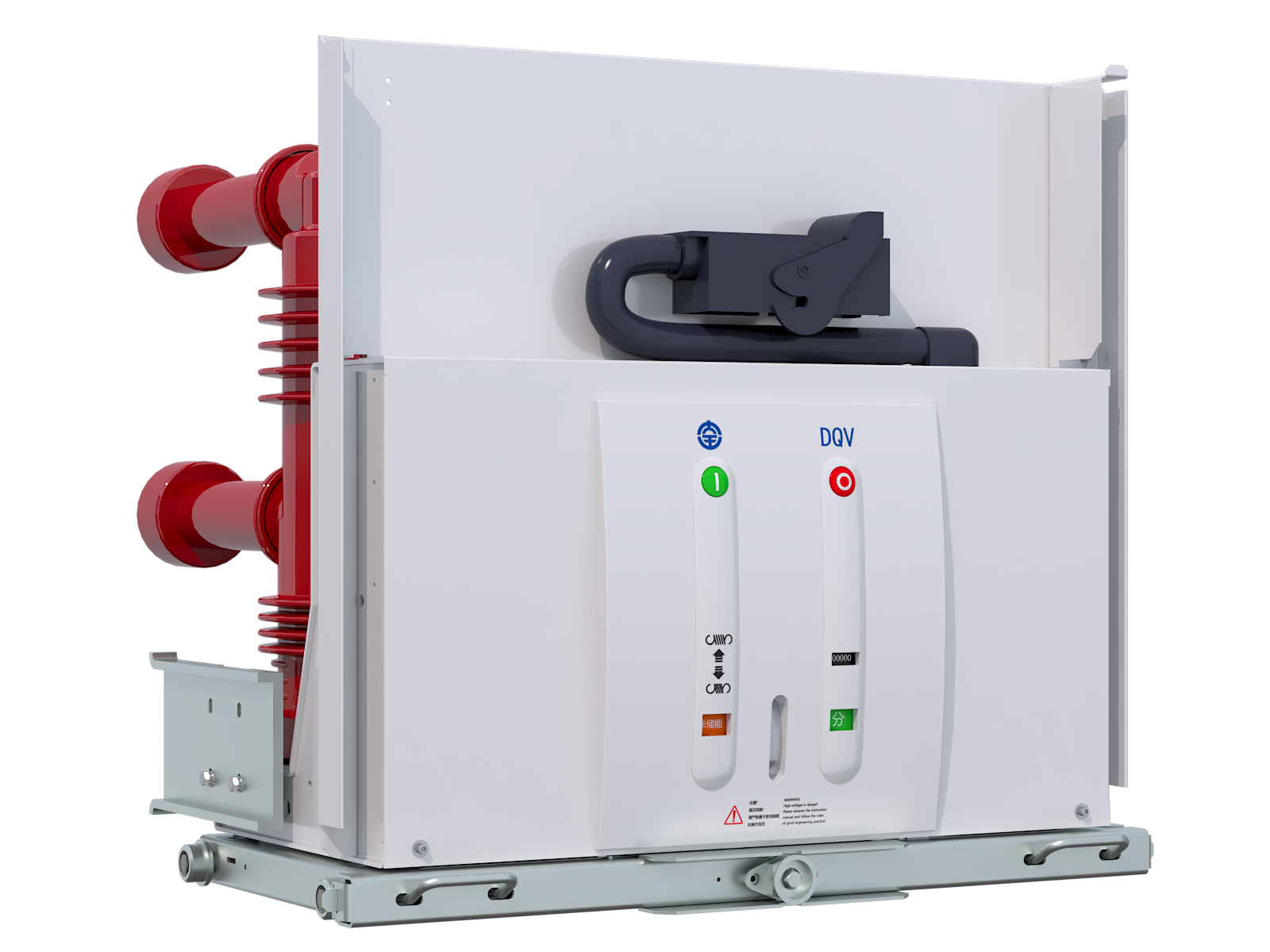

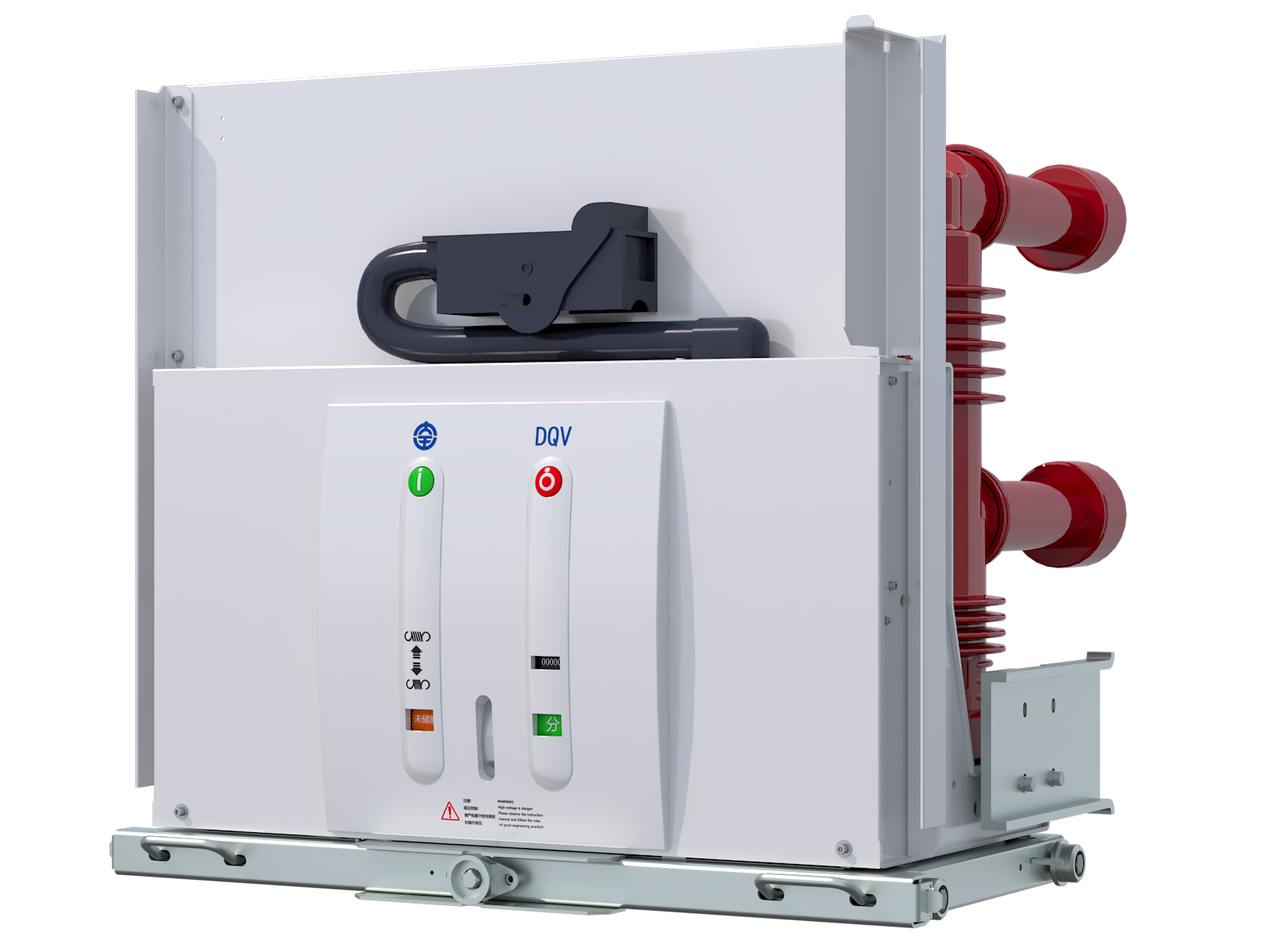

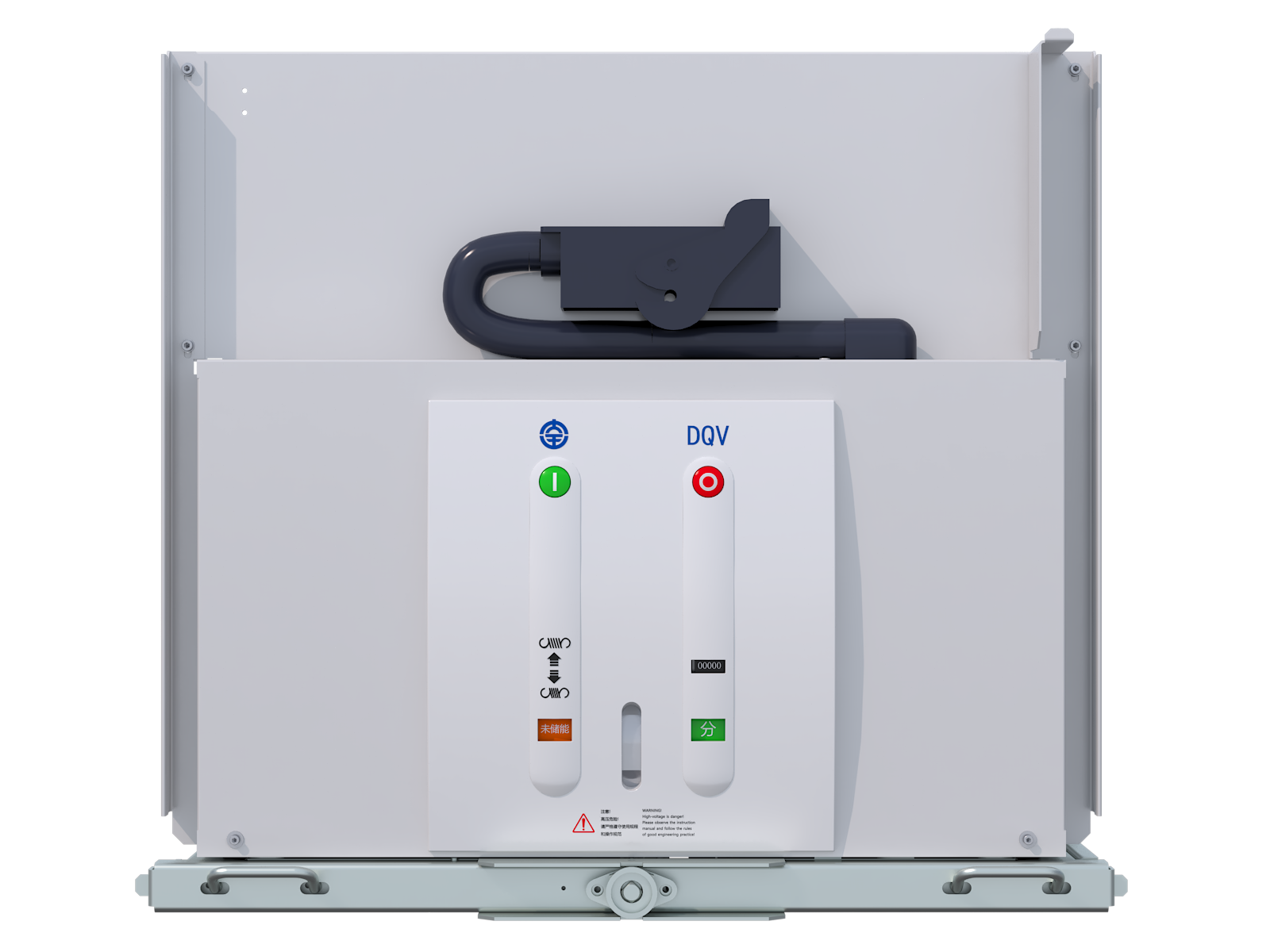

DQV-24 Indoor Smart High-Voltage Vacuum Circuit BreakerIntelligent Medium-Voltage Breakers
The DQV series is a new generation of indoor high-voltage vacuum circuit breakers, developed to leading international standards. It complies with GB/T1984, DL/T403, and IEC62271-100, guaranteeing reliable global operation.
This product is extensively applied in power plants, power systems, metallurgy, petrochemicals, environmental protection, rail transit, and municipal engineering, even in high-altitude conditions.
Core Advantages & Features
-
Serial CompatibilityHigh degree of serialization for compatibility and strong interchangeability with mainstream industry products.
01 -
Efficient Spring MechanismMature spring operating mechanism with a simple structure, high transmission efficiency, low energy loss, and low noise.
02 -
Modular ReliabilityModular circuit board for easy replacement, self-locking connectors ensure highly reliable electrical connections.
03 -
Solid-Sealed InsulationThe main circuit utilizes solid-sealed pole columns for solid insulation.
04 -
Smart Monitoring OptionOptional smart components with an online monitoring expert diagnostic system.
05
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 24 kV |
| Rated frequency | 50/60 Hz |
| Phase spacing | 210 mm, 275 mm |
| Cubicle dimensions | 800 mm, 1000 mm |
| Rated current | 630 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A, 4000 A |
| Rated short-circuit breaking current (effective value) | 25 kA, 31.5 kA |
| Rated short-circuit making current (peak) | 63 kA, 80 kA |
| Rated power-frequency withstand voltage | 65 kV |
| Rated lightning impulse withstand voltage | 125 kV |
Rated short-circuit current breaking operations | 30 times |
| Mechanical life | 10000 times |
Product Documents
-
Product Brochure
-
DQV Series
2025-09-02
Download PDF
