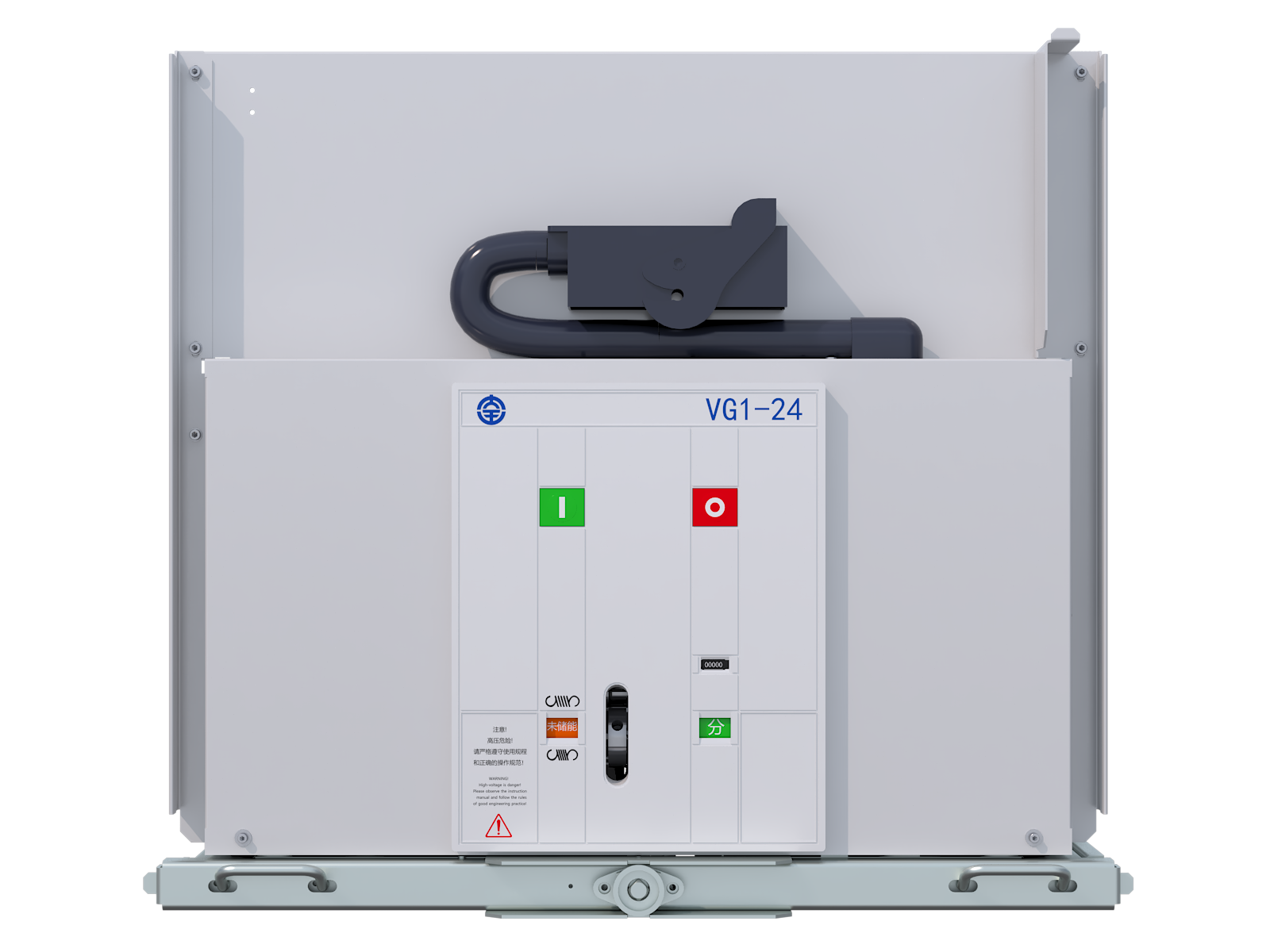

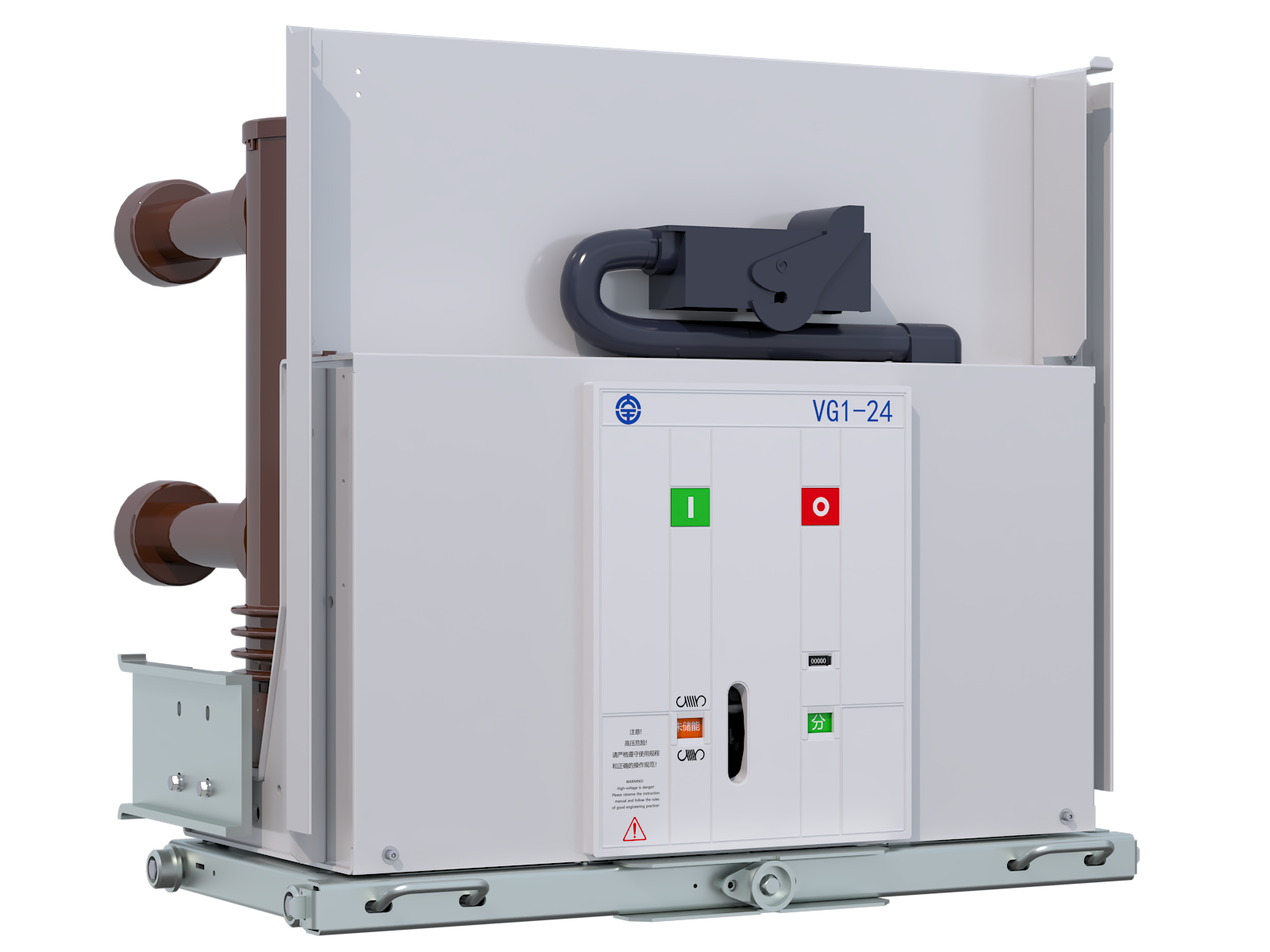

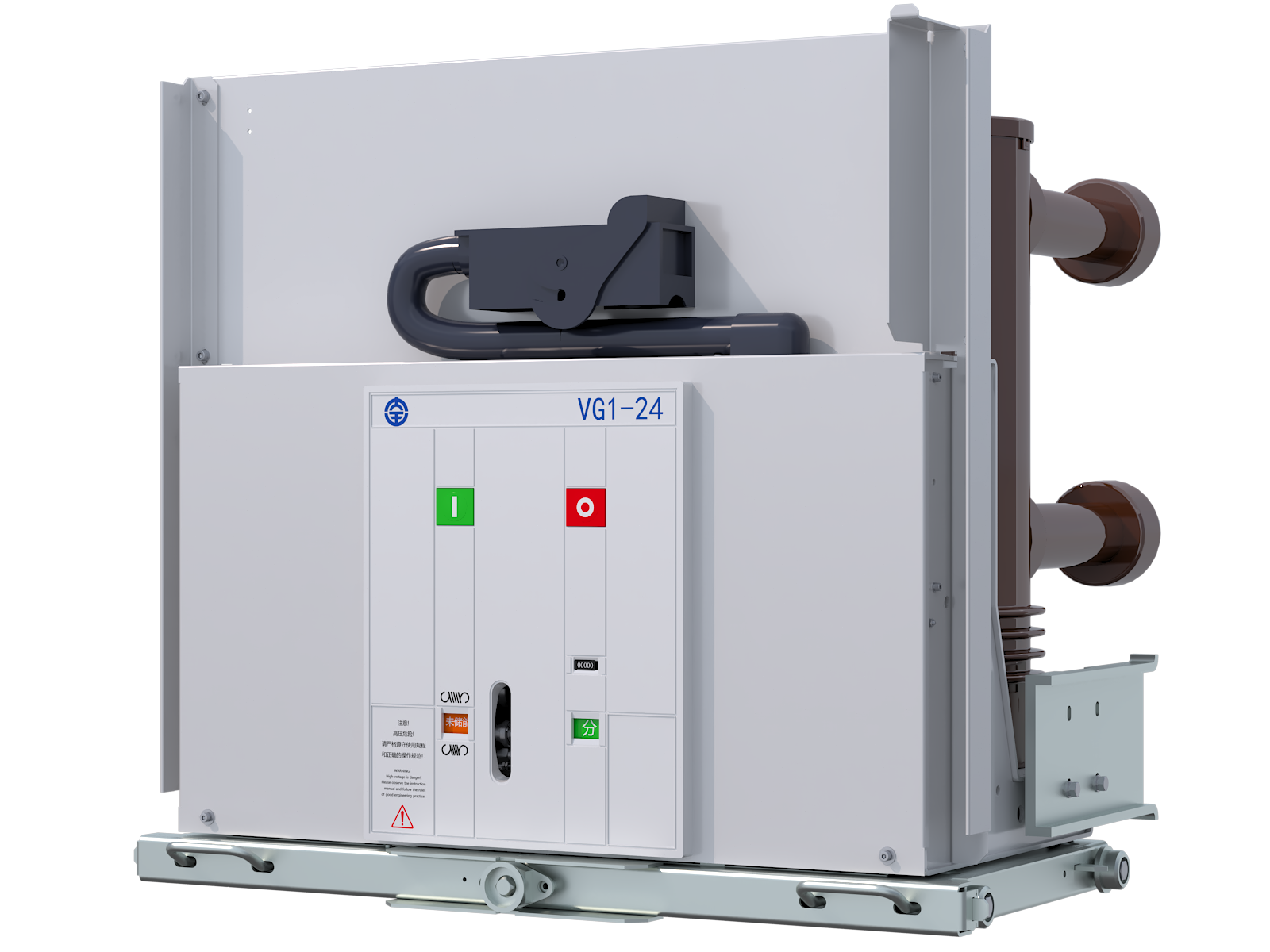

VG1-24 Indoor High-Voltage Vacuum Circuit BreakerIntelligent Medium-Voltage Breakers
VG1-24 indoor HV vacuum circuit breaker is self-developed, domestically leading, compliant with GB/T1984, DL/T403 and IEC62271-100, reliable globally. Used in power plants, grids, metallurgy, petrochemicals and urban infrastructure.
-
Main circuit in enclosed three-phase insulated cylinder with the operating mechanism longitudinally mounted. Self-developed spring mechanism: simple, reliable, durable, with full mechanical-electrical interlocks.
Core Advantages & Features
-
Serial InterchangeabilityHigh degree of serialization for consistency and strong interchangeability with mainstream industry products.
01 -
Efficient Spring MechanismMature spring operating mechanism with a simple structure, high transmission efficiency, low loss, and low noise.
02 -
Modular Reliable DesignModular circuit board for easy replacement, self-locking connectors ensure high electrical connection reliability.
03 -
Composite Insulation CoolingMain circuit uses a composite insulation structure with insulating cylinders for effective heat dissipation.
04 -
Intelligent Monitoring OptionOptional intelligent components with an online monitoring expert diagnostic system.
05
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 24 kV |
| Phase spacing | 275 mm |
| Cubicle dimensions | 1000 mm |
| Rated current | 630 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A, 4000 A |
| Rated short-circuit breaking current (effective value) | 25 kA, 31.5 kA |
| Rated short-circuit making current (peak) | 63 kA, 80 kA |
| Rated power frequency withstand voltage | 65 kV |
| Rated lightning impulse withstand voltage | 125 kV |
Rated short-circuit current breaking operations | 30 times |
| Mechanical life | 10000 times |
Product Documents
-
Product Brochure
-
VG1 Series Indoor High-Voltage Vacuum Circuit Breaker
2025-09-02
Download PDF
