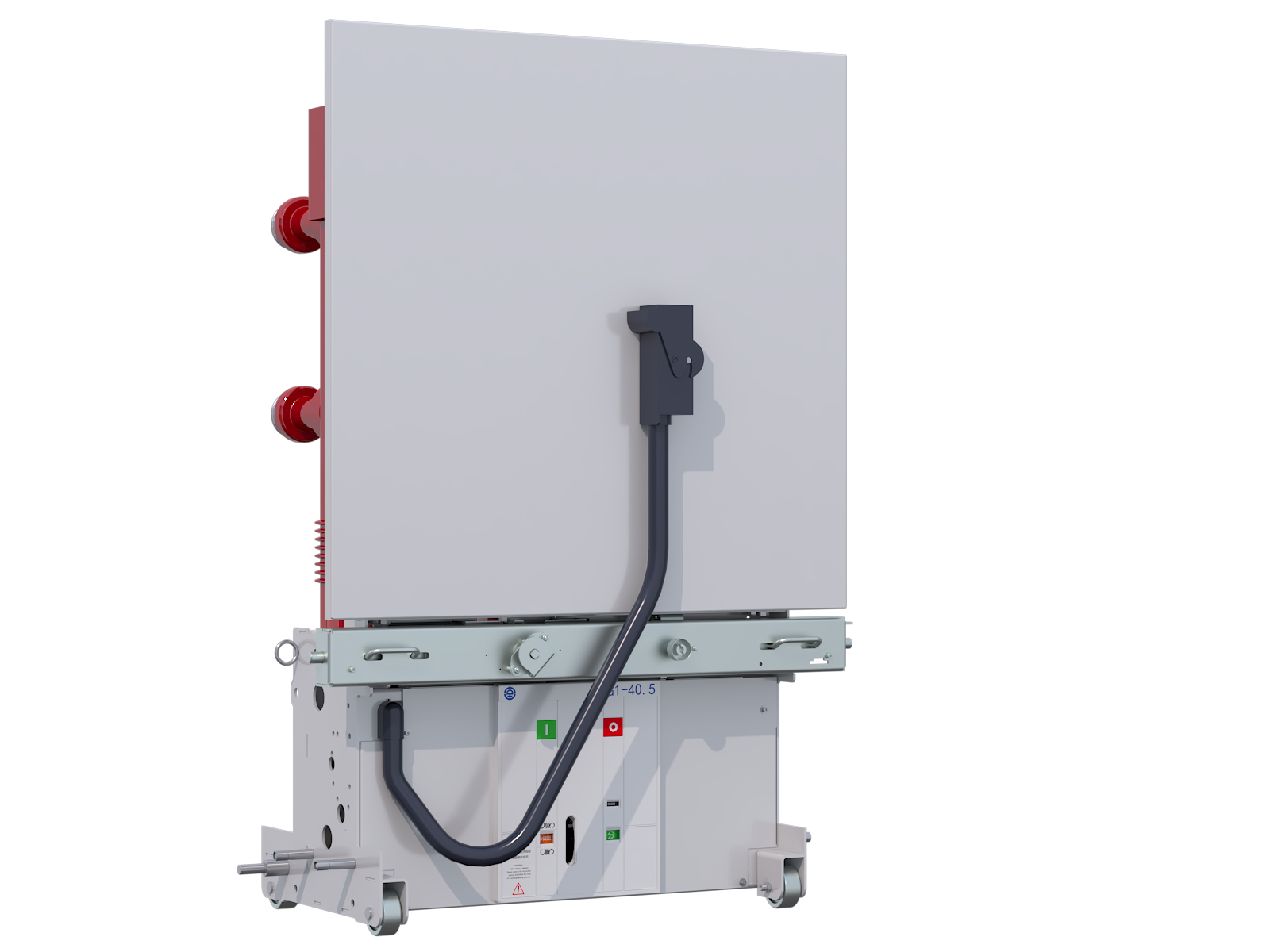

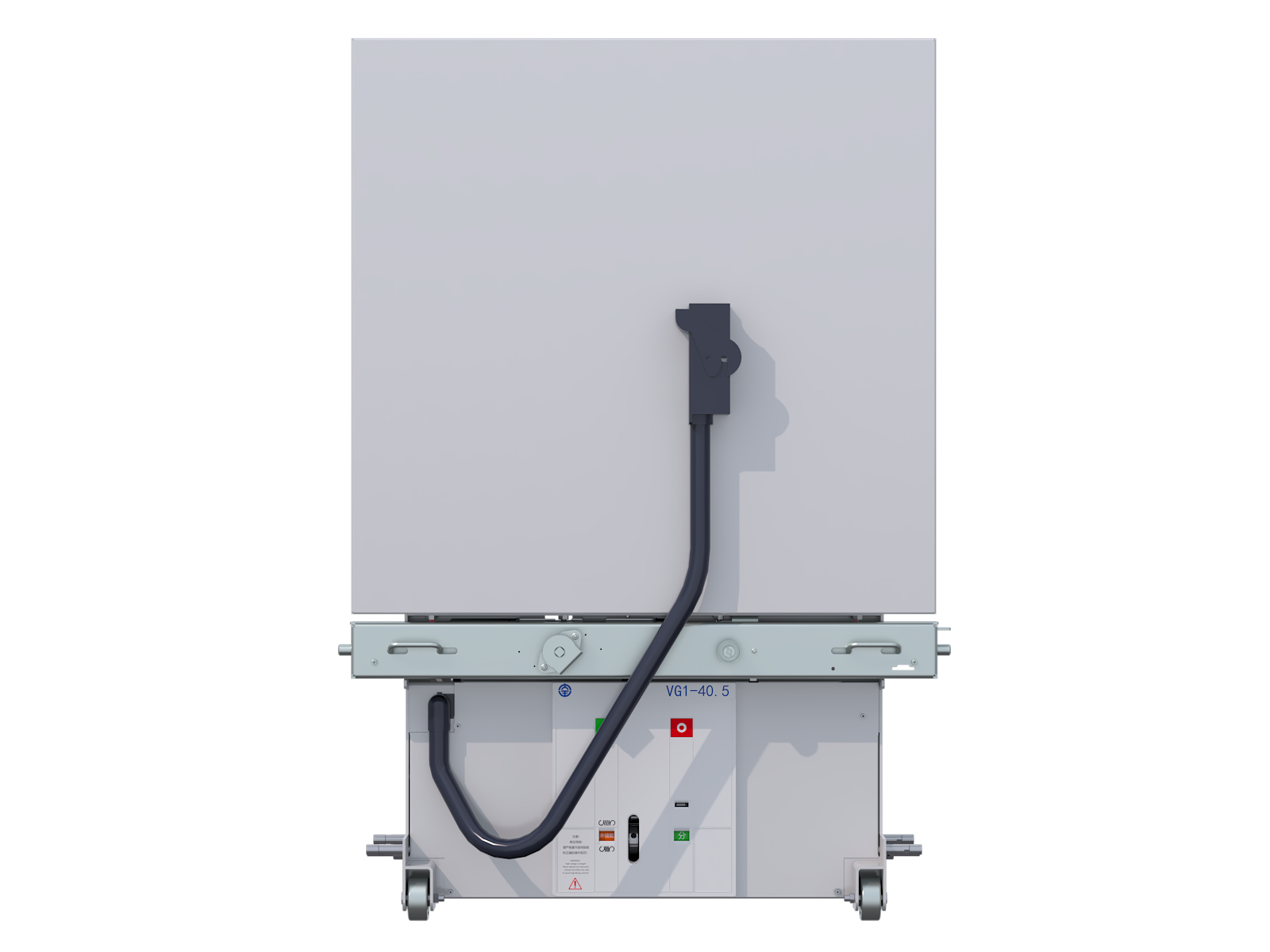

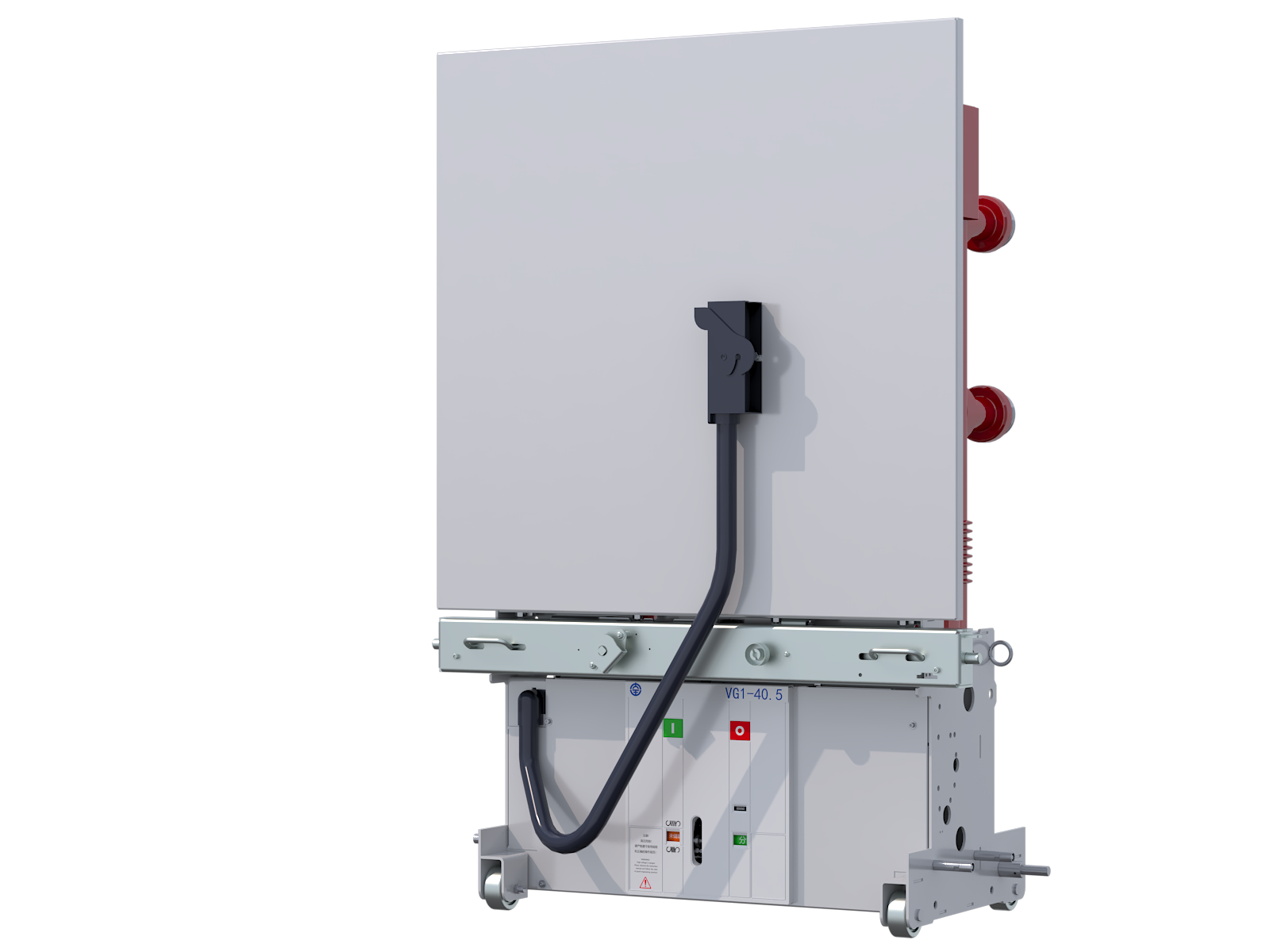

VG1-40.5 Indoor High-Voltage Vacuum Circuit BreakerIntelligent Medium-Voltage Breakers
The VG1-40.5 is a vacuum circuit breaker developed to a leading domestic level, fully compliant with GB/T1984, DL/T403, and IEC62271-100 for stable, global operation.
-
It is suitable for power plants, power grids, metallurgy, petrochemicals, and urban infrastructure. The main circuit is enclosed in a three-phase insulated cylinder, and the self-developed spring mechanism is reliable and features comprehensive interlocks.
Core Advantages & Features
-
Serial InterchangeabilityHigh degree of serialization for strong interchangeability with mainstream products.
01 -
Efficient Spring MechanismMature spring operating mechanism, simple structure, high efficiency, low loss, low noise.
02 -
Modular Reliable DesignModular circuit board for easy replacement, self-locking connectors ensure reliable connections.
03 -
Composite Insulation CoolingMain circuit uses a composite insulation structure for good heat dissipation.
04 -
Intelligent Monitoring OptionOptional intelligent components with an online monitoring expert diagnostic system.
05
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 40.5 kV |
| Phase spacing | 280 mm, 300 mm, 440 mm |
| Cubicle dimensions | 1200 mm, 1400 mm, 1680 mm |
| Rated current | 630 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A, 4000 A |
| Rated short-circuit breaking current (effective value) | 25 kA, 31.5 kA |
| Rated short-circuit making current (peak) | 63 kA, 80 kA |
| Rated power frequency withstand voltage | 95 kV |
| Rated lightning impulse withstand voltage | 185 kV |
Rated short-circuit current breaking operations | 30 times |
| Mechanical life | 10000 times |
