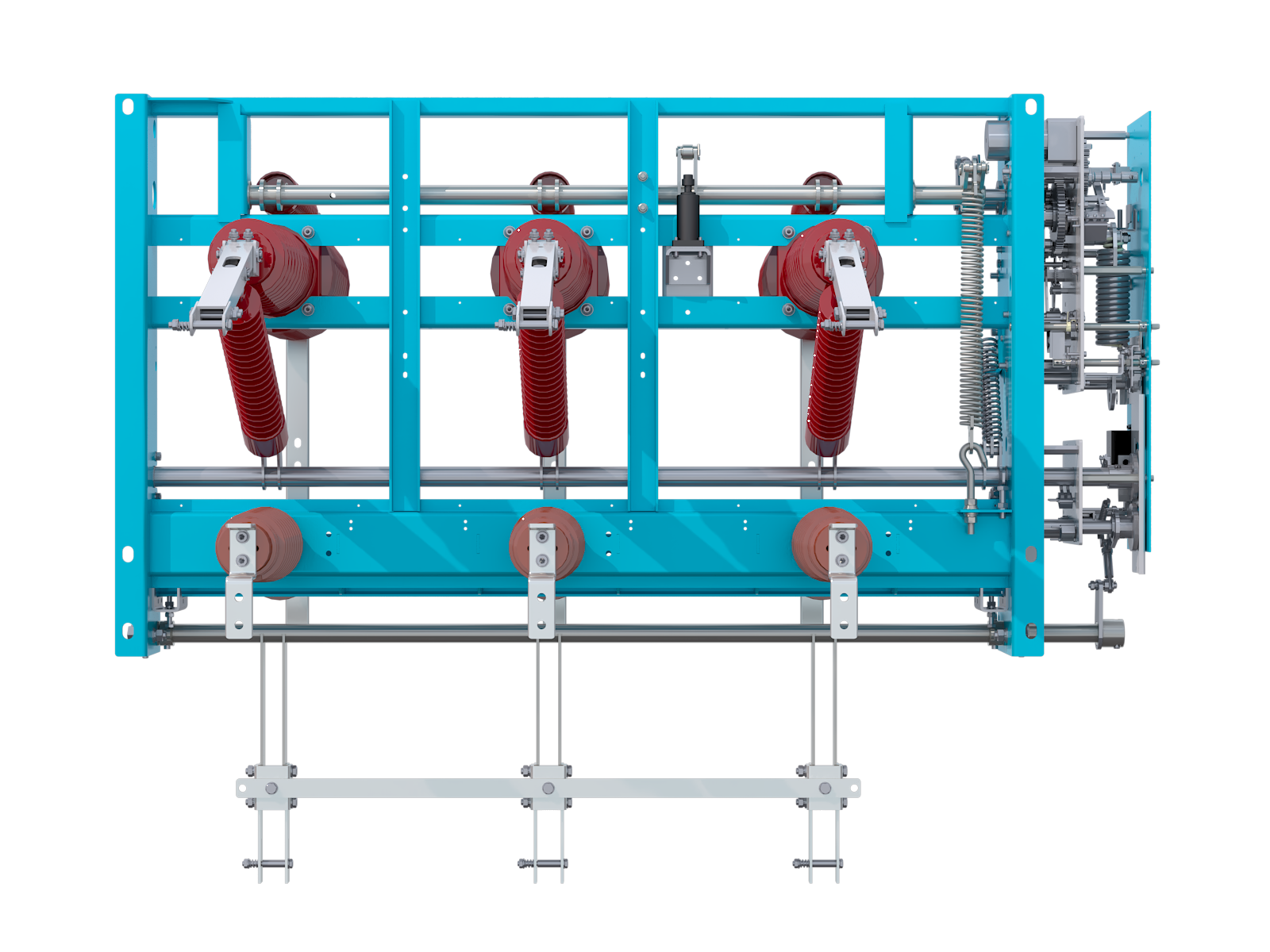

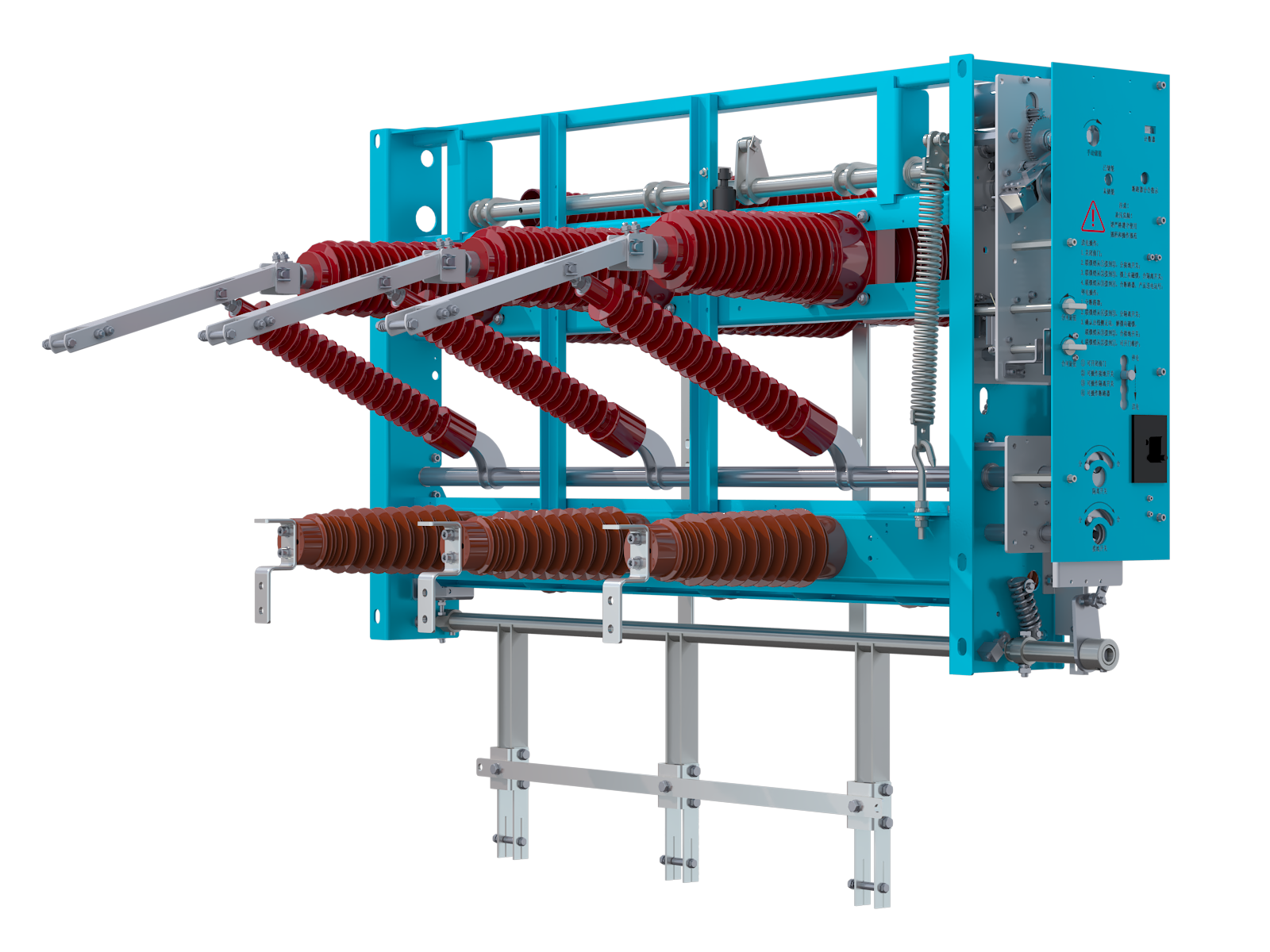

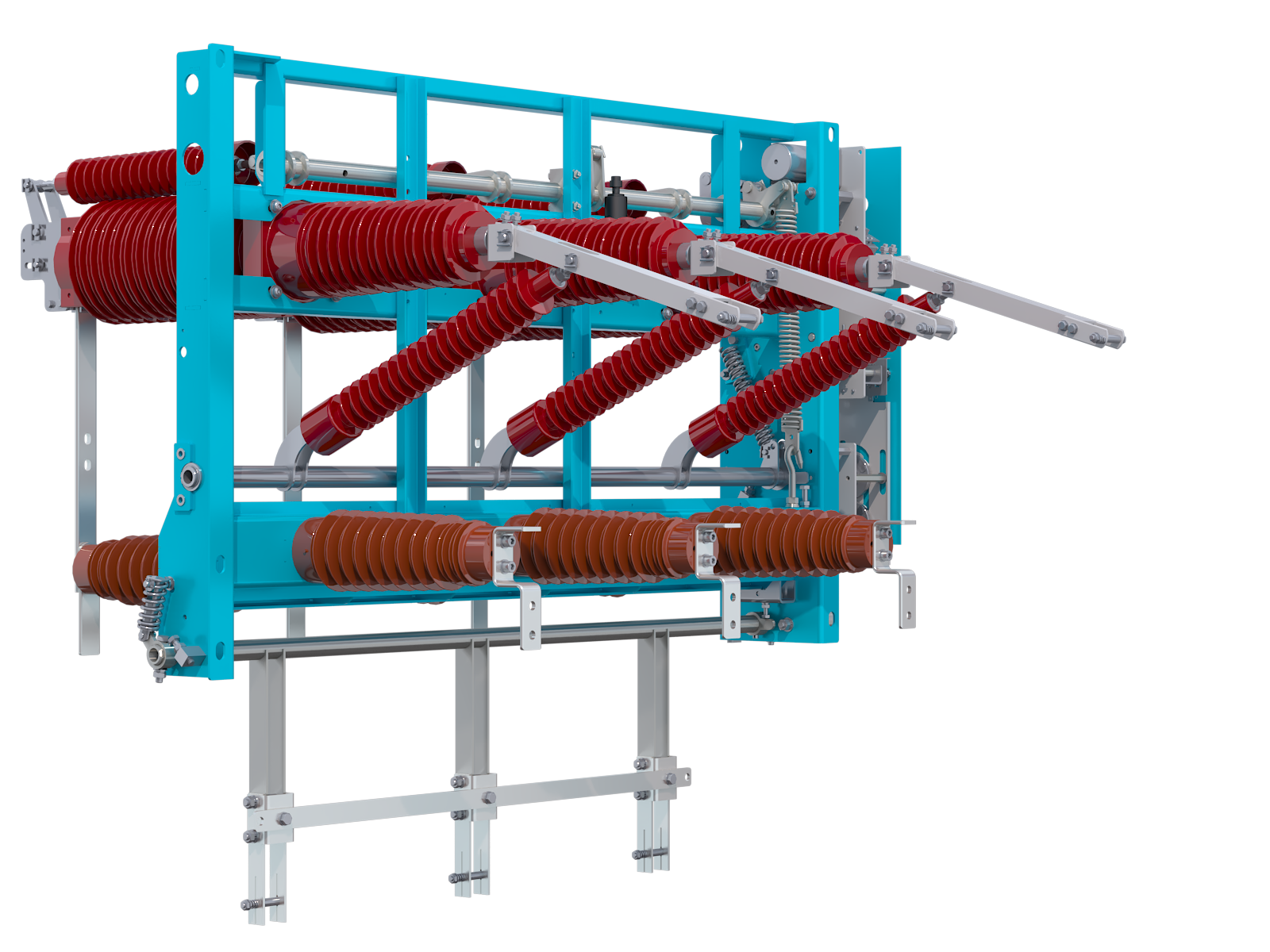

VG3-40.5 Combined Indoor High-Voltage Vacuum Circuit BreakerIntelligent Medium-Voltage Breakers
The VG3-40.5 is a new, isolated vacuum circuit breaker with a leading domestic design. It is designed for three-phase AC 50Hz systems (rated voltage 40.5kV) and is ideal for 35kV cubicle type substations in wind and solar power generation networks.
-
It can break load, overload, and short-circuit currents. It can also function as a standalone unit in power systems. The vacuum interrupters are solid-sealed, and the design separates the disconnector/ground switch from the circuit breaker into two compartments for safe maintenance.
Core Advantages & Features
-
Durable Compact DesignHigh breaking capacity, safety, long electrical life, compact, lightweight, and virtually maintenance-free.
01 -
Safe Compartment MaintenanceLeft-right arrangement of disconnector, ground switch, and circuit breaker into separate compartments for dead-safe maintenance.
02 -
Reliable Current InterruptionAbility to break rated, overload, and short-circuit currents, visible isolation break, knife-switch type grounding switch.
03 -
Miniature Spring OperationMiniaturized spring operating mechanism with electric/manual charging and open/close operations.
04 -
Comprehensive Mechanical InterlockingComprehensive mechanical interlocking (five-preventions) between disconnector, circuit breaker, and ground switch.
05 -
High-Altitude CompatibilityAltitude capability up to 4000 meters.
06
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 40.5 kV |
| Rated short-time withstand current | 31.5 kA (4s) |
| Rated peak withstand current | 80 kA |
| Rated current of circuit breaker | 630 A, 1250 A |
| Rated short-circuit breaking current of the circuit breaker (effective value) | 25 kA, 31.5 kA |
| Rated short-circuit making current of the circuit breaker (peak) | 63 kA, 80 kA |
| Rated short-circuit breaking current operations of the circuit breaker | 30 times |
| Mechanical life: circuit breaker | 10000 times |
| Mechanical life: isolating switch | 2000 times |
| Mechanical life: grounding switch | 2000 times |
| Rated lightning impulse withstand voltage | 185 kV |
Rated power frequency withstand voltage | 95 kV |
