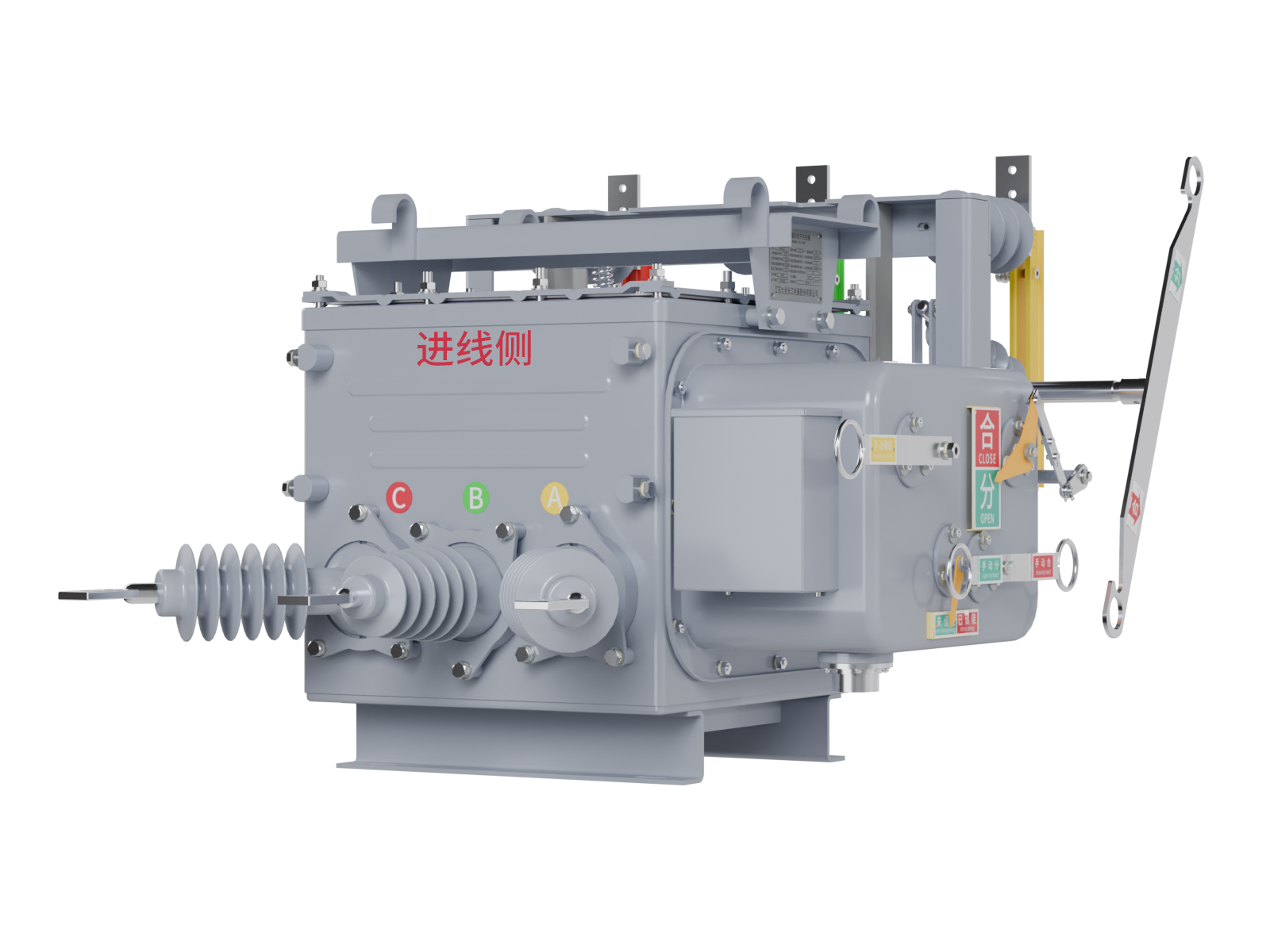

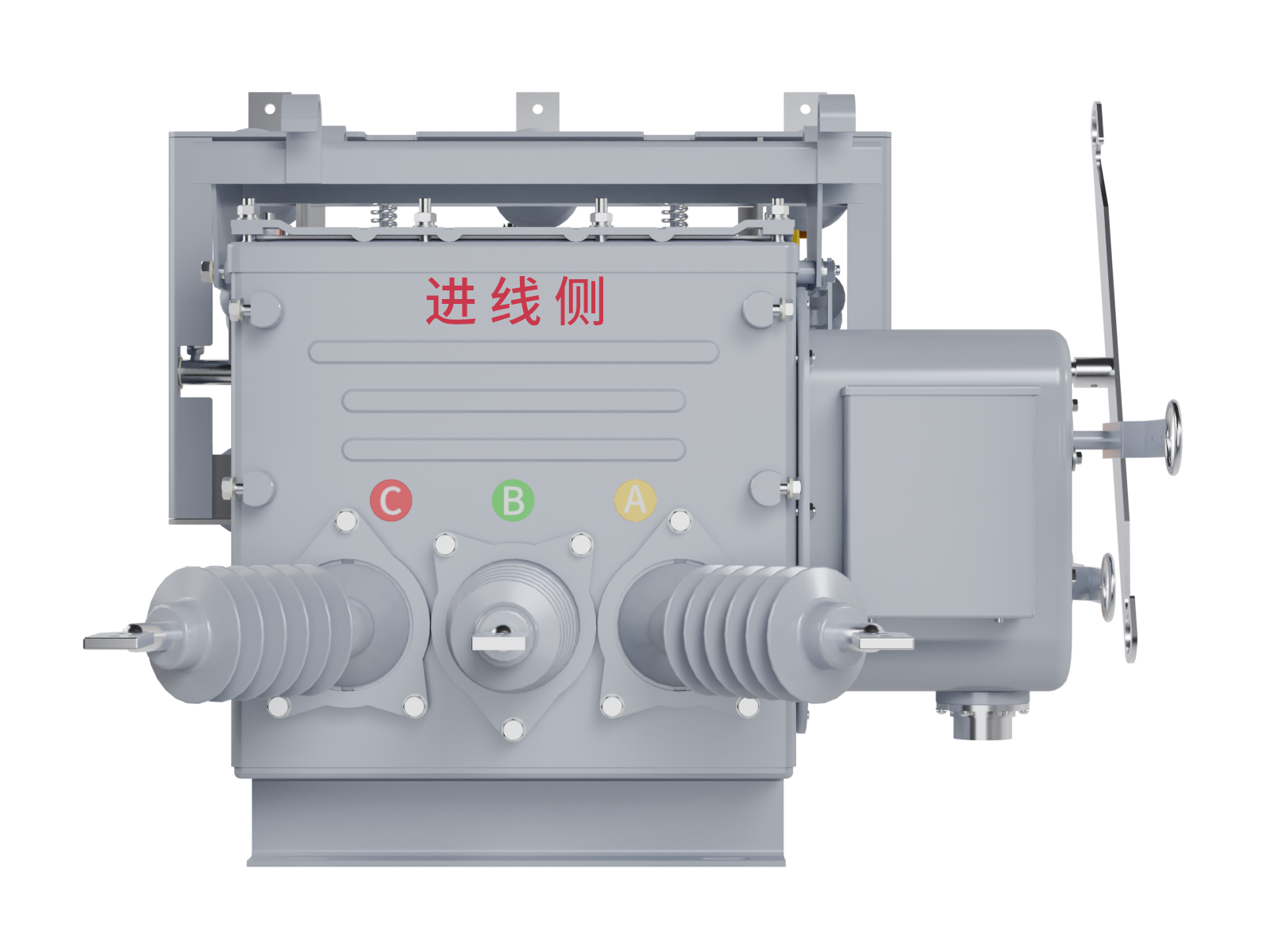

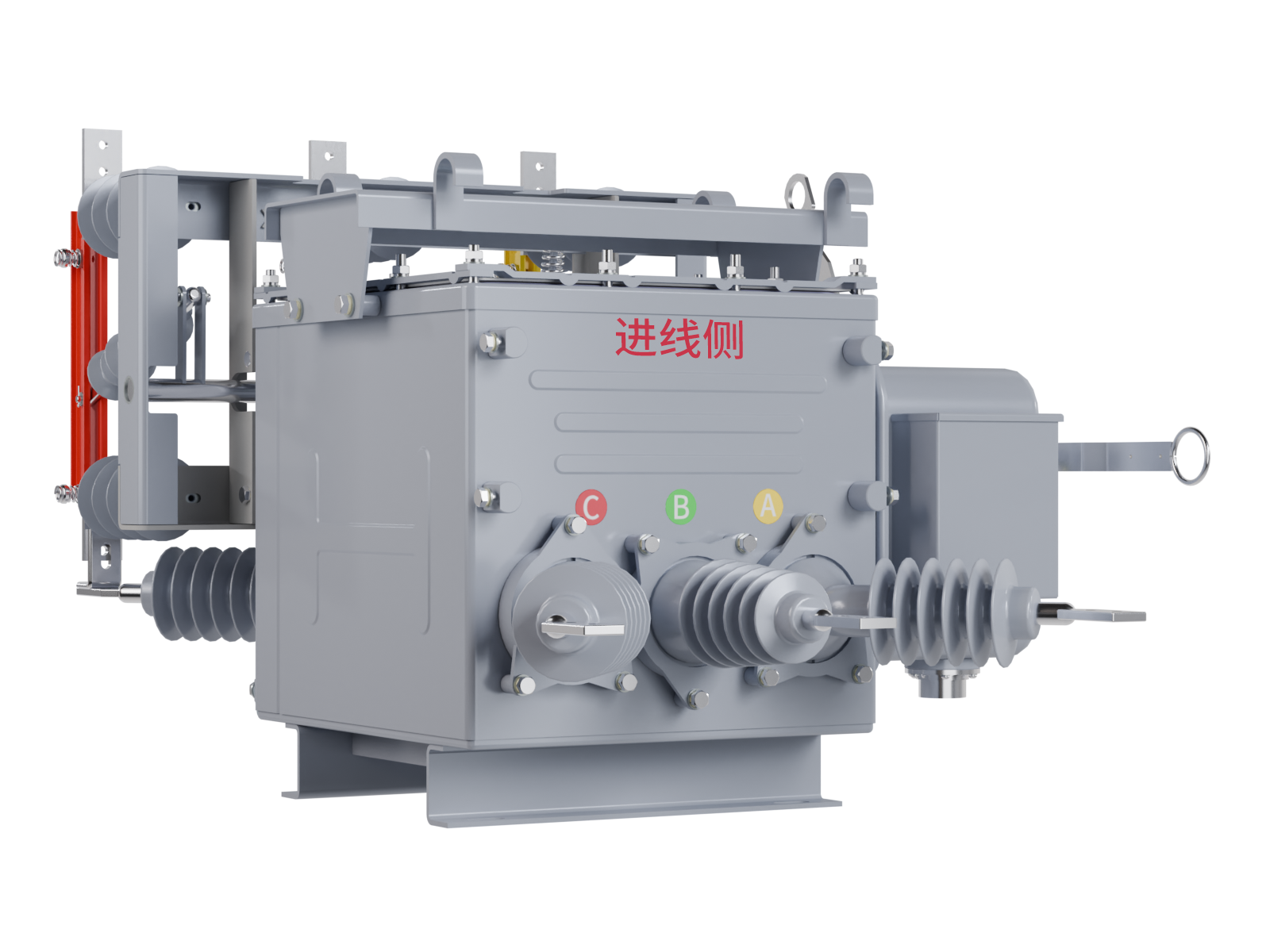

ZW20-12 Common Tank Outdoor High-Voltage Vacuum Circuit BreakerIntelligent Medium-Voltage Breakers
The ZW20-12 is a leading domestic, common tank outdoor vacuum circuit breaker compliant with GB/T1984 and DL/T403. With added CTs, PTs, and FTUs, it enables protection and automation features.
-
It is designed for 12kV overhead line grids. It uses a three-phase common tank design with SF₆ gas insulation. The sealed, explosion-proof tank is maintenance-free. The miniaturized mechanism ensures low operating power and high reliability.
Core Advantages & Features
-
Flexible OperationElectric/manual energy storage and open/close, locally or remotely.
01 -
Low Operating Power and High ReliabilityMiniaturized mechanism with low consumption and high-performance bearings.
02 -
Maintenance-Free DesignSealed structure protects all internal components from the environment.
03 -
Incoming and Outgoing Line MethodsSilicone rubber sleeves provide UV resistance, sufficient insulation, and excellent external performance.
04 -
Explosion-Proof SafetyFor safe operation, an explosion-proof device is fitted on the tank top.
05 -
Multi-Function ConfigurableCan be equipped for protection, reclosing, and remote communication functions.
06
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 12 kV |
| Rated frequency | 50 Hz |
| Rated current | 630 A |
| Rated short-circuit breaking current | 20 kA, 25 kA |
| Rated short-circuit making current (peak) | 50 kA, 63 kA |
| Rated short-time withstand current (4s) | 20 kA, 25 kA |
| Rated peak withstand current (peak) | 50 kA, 63 kA |
| Mechanical life | 10000 times |
| Rated current breaking operations | 10000 times |
| Rated short-circuit breaking current operations | 30 times |
| Power frequency withstand voltage (1min) phase-to-phase, phase-to-earth/isolation (dry test) | 42/48 kV |
| Power frequency withstand voltage (1min) phase-to-phase, phase-to-earth (wet test) | 34 kV |
| Lightning impulse withstand voltage (peak) phase-to-phase, phase-to-earth/isolation | 75/85 kV |
Product Documents
-
Product Brochure
-
ZW20-12 Outdoor High-Voltage AC Vacuum Circuit-Breaker
2025-09-02
Download PDF
