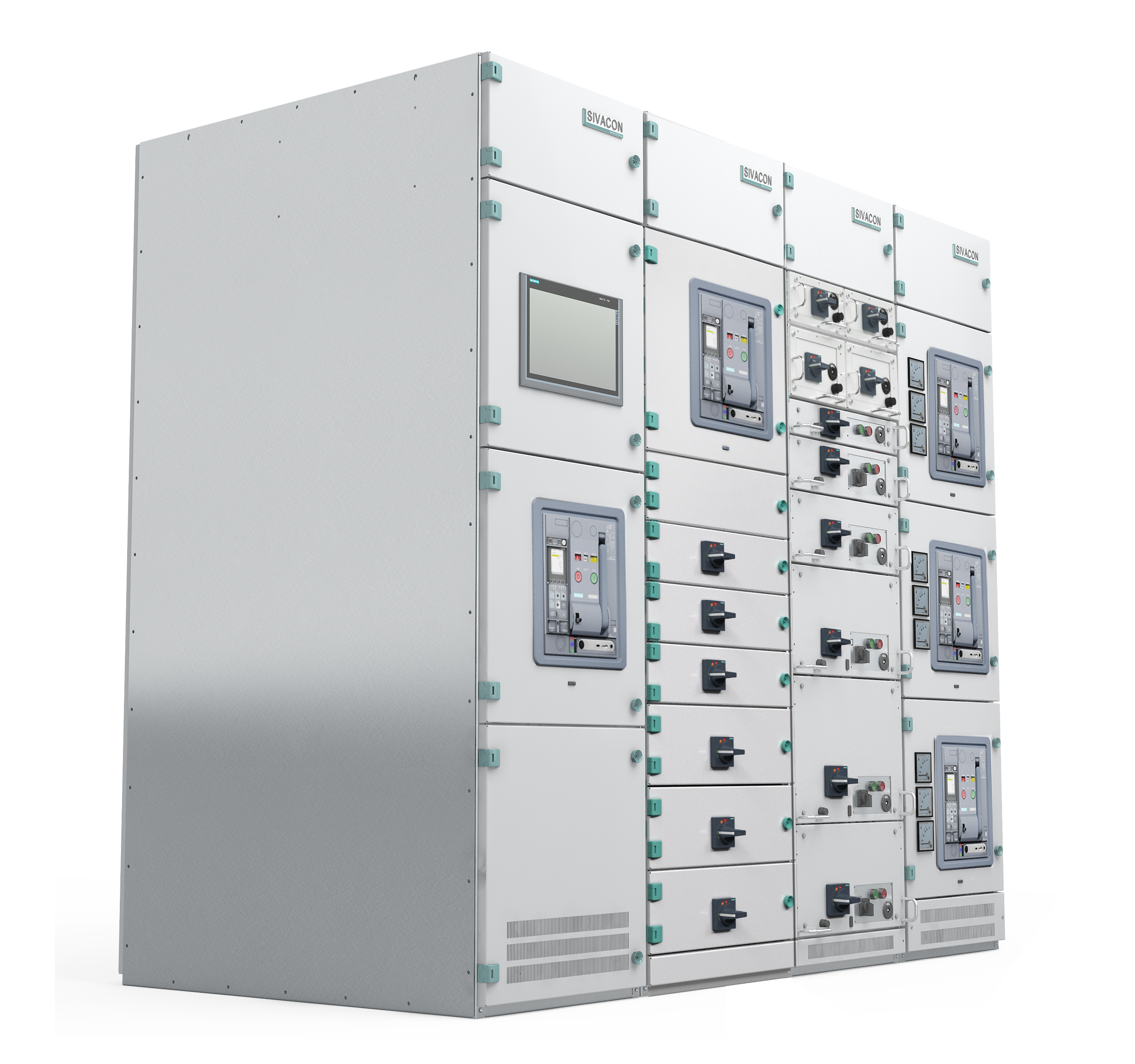

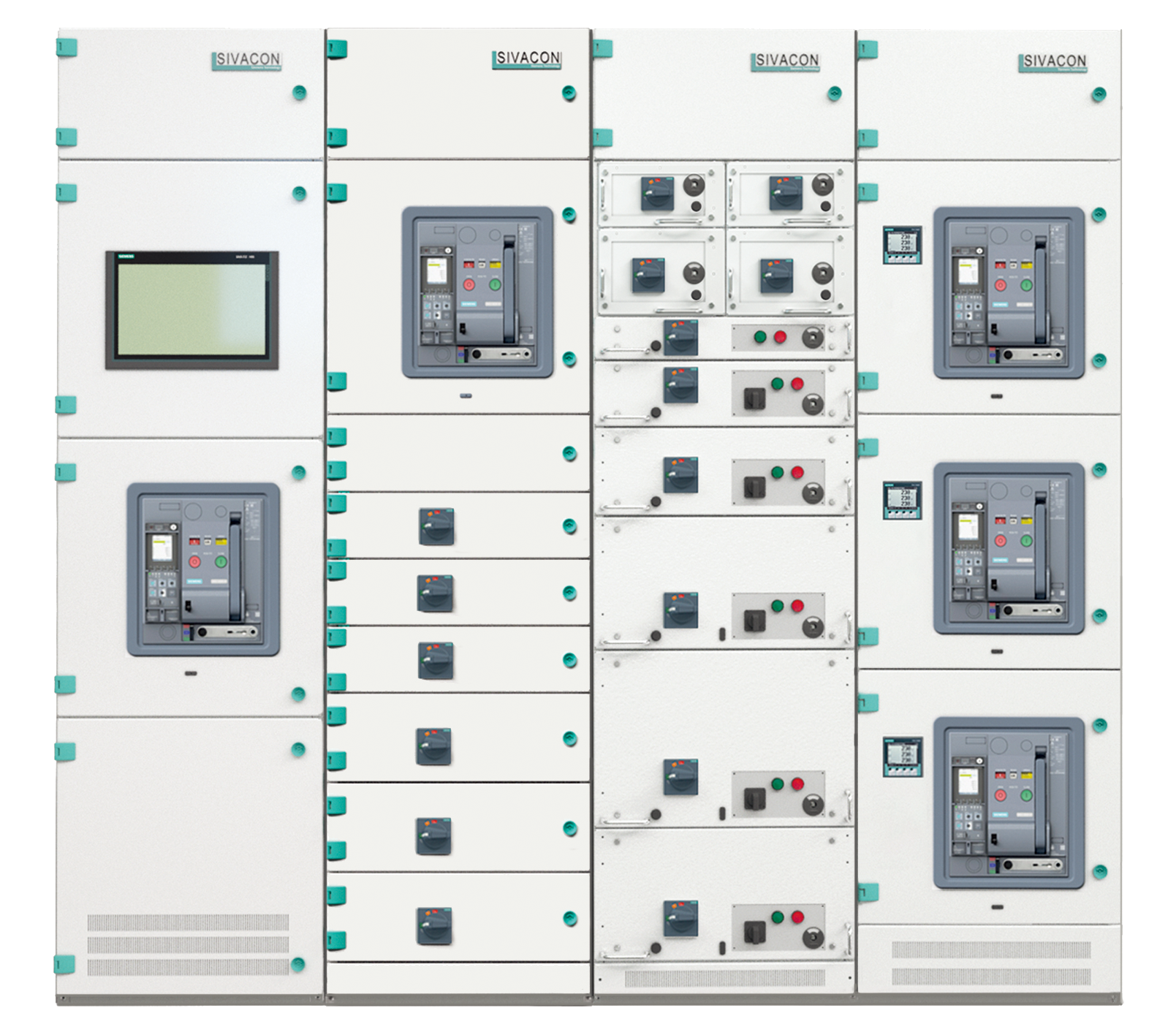

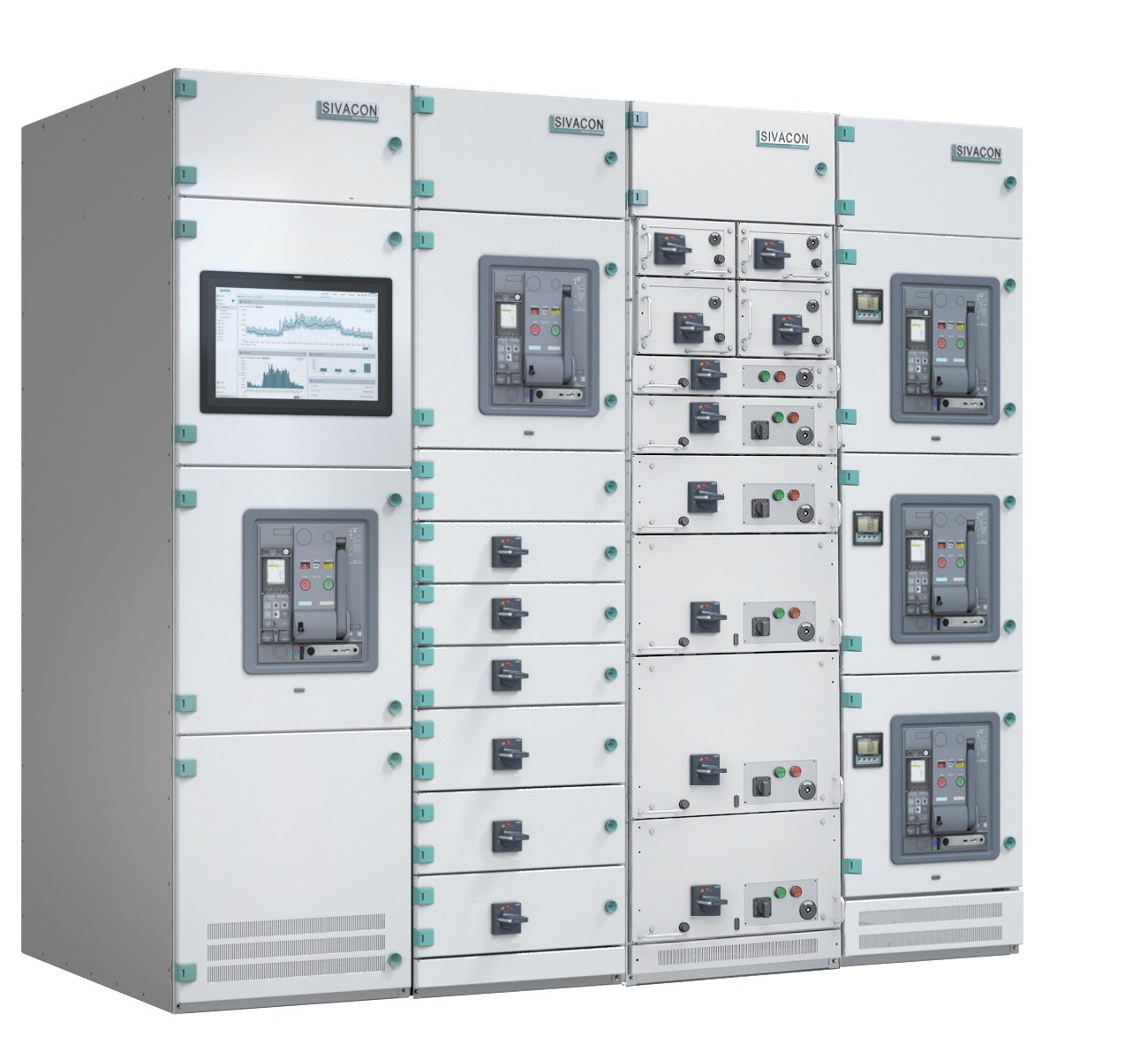

SIVACON 8PT Intelligent Low-Voltage SwitchgearLow-Voltage Switchboard
In industries, buildings and infrastructure, systems need safe and reliable power, brief outages pose severe risks. You need accident-ready products for safety. As a leading low-voltage distribution supplier, we offer stable, reliable, safe and intelligent solutions. For energy security or efficiency, SIVACON 8PT ensures superior protection.
-
More horizontal busbar options, optimized structure for better cost-effectiveness, 1/2 functional units for higher density, dedicated secondary communication connectors, unique wiring channels for quality smart communication; arcing fault test-passed for on-site safety and power reliability.
Core Advantages & Features
-
Safe, reliable & intelligent low-voltage distribution solutions.
01
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated operating voltage | 400 V / 690 V |
| Rated insulation voltage | 1000 V (AC) / 1200 V (DC) |
| Short-time withstand voltage | 2500 V/1min |
| Impulse withstand voltage | 12 kV |
| Rated current | Up to 7400 A |
| Internal separation | Form1~4b |
| Protection degree | IP30~IP54 |
| Executive standard | IEC61439.2/GB/T7251.12-2013 |
| Internal arcing fault certification | IEC61641 100 kA/0.5s |
| Seismic rating | Richter scale 8 |
| Salt spray test | IEC61439 10.22 clause 10.22 |
| EMC test | GB/T7251 10.12 clause 10.12 |
