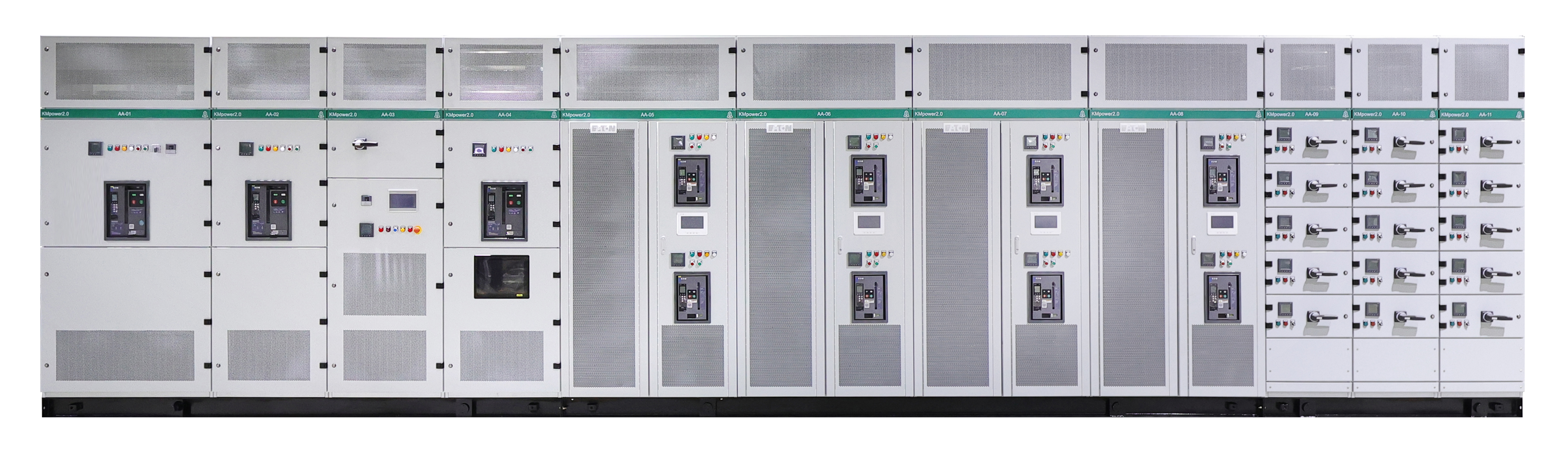

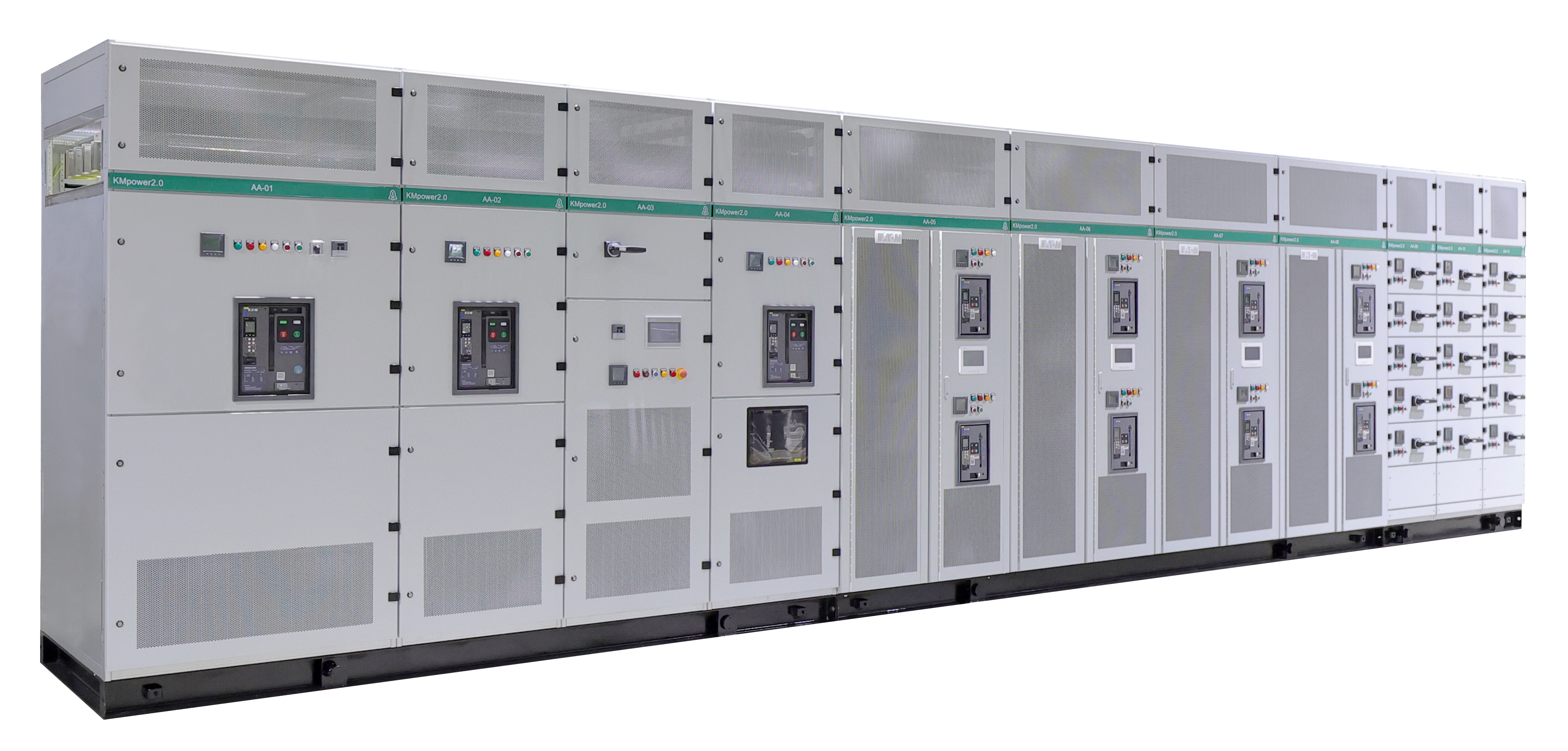

KMpower 2.0 Data Center Power Module SolutionLow-Voltage Switchboard
KMpower 2.0 is a purpose-built low-voltage power distribution solution that helps data centers achieve faster deployment, higher reliability, and more efficient use of space. It combines the transformer cubicle, LV cubicle, power compensation cubicle, UPS cubicle, and feeder cubicle into one pre-engineered system.
All components are factory-assembled and tested before shipment, ensuring a consistent appearance, faster on-site deployment, and intelligent lifecycle operation and maintenance. The solution significantly reduces field installation time, minimizes interface risls, and offers clear advantages in deployment speed, space utilization, and operational reliability.
Core Advantages & Features
-
Pre-engineered Integrated DesignA standardized architecture with factory prefabrication and testing helps shorten the project delivery cycle by approximately 20%.
01 -
Hot-Sync Wireless Parallel TechnologyRequires no communication cables, eliminating a single point of failure. Supports parallel operation of up to 8 units with low load imbalance, and has been proven in hundreds of thousands of installations worldwide.
02 -
Compact and Uniform LayoutThe removable busbar compartment and integrated transport design reduce the installation cycle to only 30%-50% of that required by traditional solutions.
03 -
AC Direct FeedProvides 0 ms transfer for immediate isolation from grid disturbances, along with harmonic and surge filtering, lightning detection, intelligent fault diagnosis, and support for parallel operation.
04 -
Space SavingThe integrated design from transformer to feeder saves approximately 15% of floor space compared with conventional layouts.
05 -
Flexible System ConstructionAvailable in MNS2.0 configuration with front/rear busbar arrangement and 2300 mm height, or as a simplified option with UPS integral isolator and 7180 mm length.
06 -
Optional Full-Link Copper BusbarProvides improved heat dissipation and longer service life.
07 -
Accessible Busbar CompartmentA separate busbar compartment allows easier on-site installation and maintenance.
08 -
High-Efficiency UPSFeatures double-conversion efficiency above 97.3%, hot-swappable power modules, intelligent module sleep, on-demand charge/discharge control.
09 -
Wireless Temperature MonitoringReal-time temperature monitoring is available at all busbar joints, including top busbars, transformer connections, UPS connections, and feeder connections.
10 -
Smart Power Quality ManagementProvides full-link visualization, real-time monitoring, fault localization, and modular monitoring through RS485 with an integrated color touchscreen.
11
Technical Parameters
| Basic Parameters | ||
|---|---|---|
| System Capacity | 1000/1250/1600/2000/2500 kVA | |
| Dimensions | Width | 10200 mm (for 2500 kVA without transformer), customizable according to project requirements |
| Depth | 1000/1200 mm | |
| Height | Standard height: 2500 mm (excluding the 150 mm base). The top busbar compartment height can be adjusted according to project requirements. | |
| System Input Switch | 2000/2500/3200/4000/5000 A | |
| Compensation Capacity | Up to 600 kvar per cabinet, 100 kvar per module, selectable according to project requirements | |
| UPS Configuration | Up to 600 kVA per cabinet, selectable according to project requirements | |
| Feed Output | The capacity, quantity, and number of feeder circuits can be customized | |
| Busbar Connection | Full-link copper busbar connection | |
| Monitoring System | Equipment status detection, fault detection and alarming, power quality analysis (including harmonics, three-phase imbalance, and power factor), selective protection coordination between upstream and downstream circuit breakers, electrical load monitoring, active energy analysis by peak/flat/valley periods, transformer and busbar temperature monitoring, health index evaluation, trend analysis, and intelligent curve display. | |
| Installation Method | Supports integrated on-site installation | |
| Operating Temperature | 0 to +40℃ | |
| Storage Temperature | -40 to +70℃ | |
| Relative Humidity | ≤93% RH (non-condensing) | |
| Altitude | 0 to 4000m, above 1000 m, derating applies according to industry standards | |

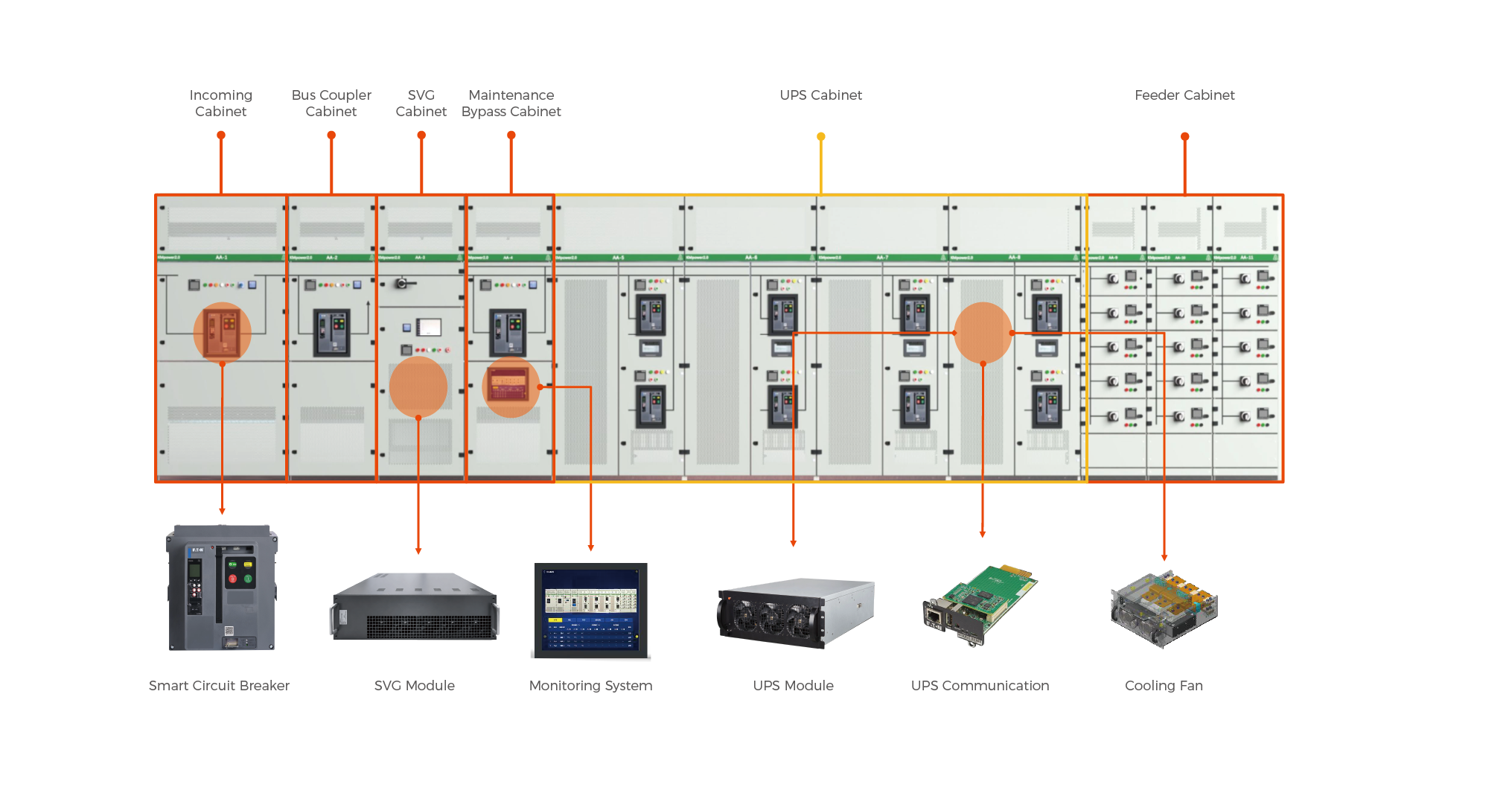

CORE COMPONENTS
