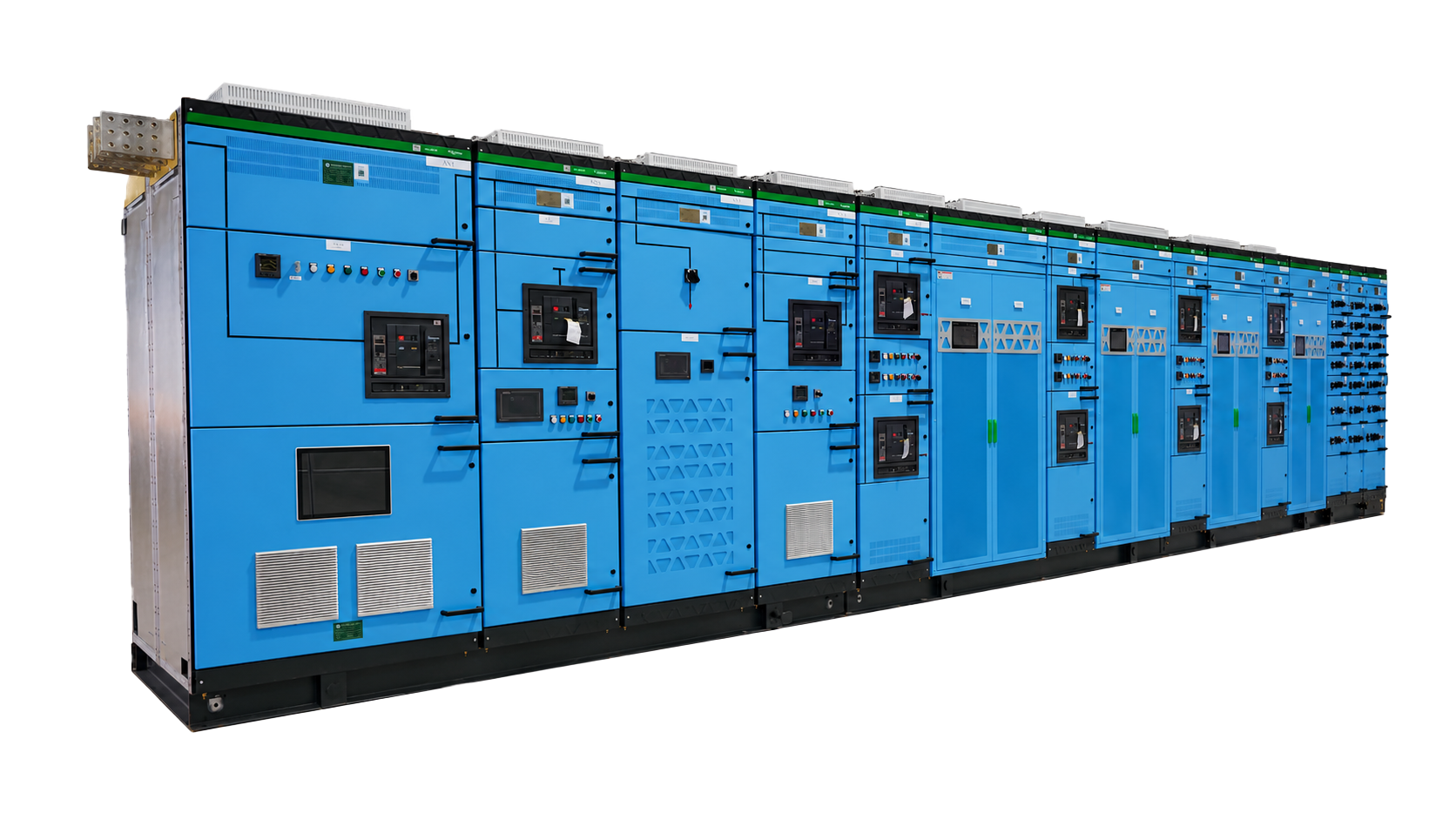

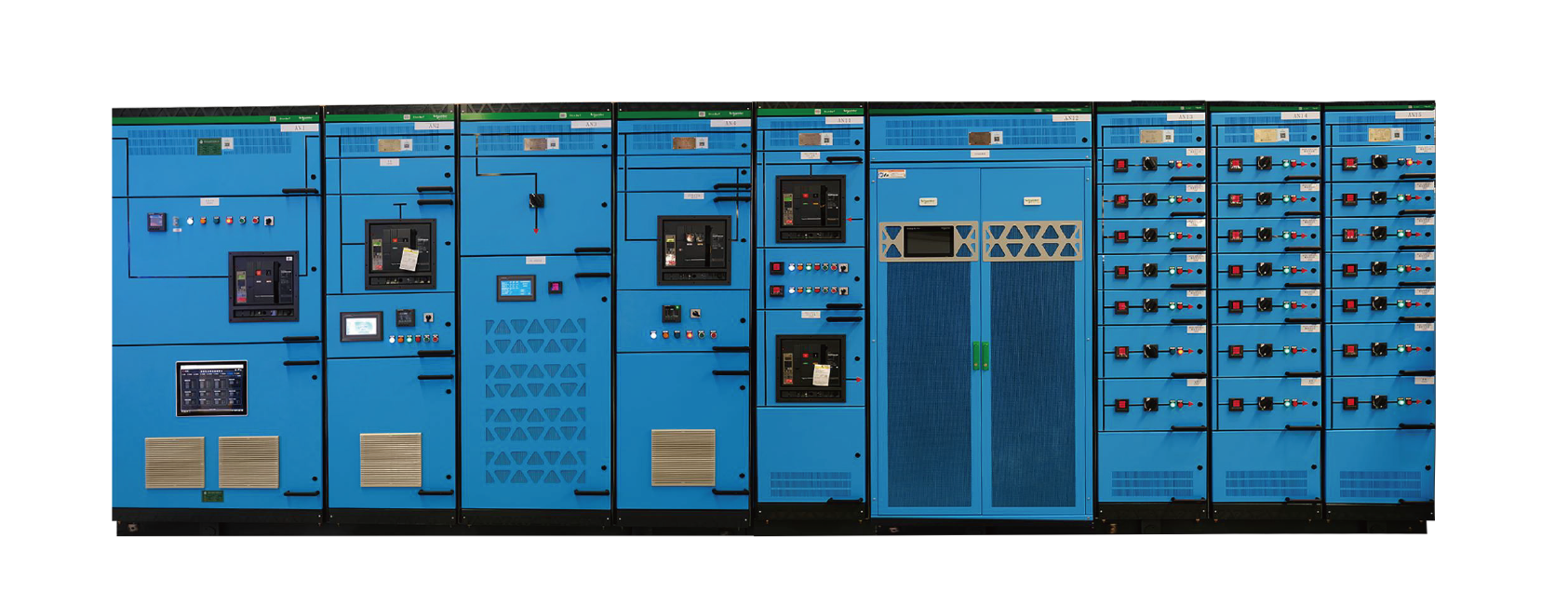

DQMpower 2.0 Data Center Power Module SolutionLow-Voltage Switchboard
The DQMpower2.0 is an integrated, intelligent 10kV/400V power distribution and supply solution. It is customized to combine transformer cabinets, low-voltage cabinets, power compensation cabinets, UPS cabinets, and feeder cabinets into a single assembly. It fully meets the power distribution requirements of data centers for consistent aesthetic design and e cient on-site deployment. The product is fully compliant with IEC61439-2:2020.
Core Advantages & Features
-
Highly Integrated DesignCombines transformer cabinets, low-voltage cabinets, power compensation cabinets, UPS cabinets and feeder cabinets into a customized all-in-one solution.
01 -
Intelligent Power DistributionAll-in-one integrated power distribution and supply design.
02 -
Compact and Uniform LayoutThe removable busbar compartment and integrated transport design reduce the installation cycle to only 30%-50% of that required by traditional solutions.
03 -
Wide Voltage CoverageSupports 10kV/400V power distribution.
04 -
Space SavingThe integrated design from transformer to feeder saves approximately 15% of floor space compared with conventional layouts.
05 -
Unified Aesthetic DesignFeatures consistent cabinet design to meet data center standards.
06 -
E cient On-Site DeploymentEnables fast installation and accelerated project delivery.
07
Technical Parameters
| Basic Parameters | ||
|---|---|---|
| System Capacity | 1000/1250/1600/2000/2500 kVA | |
| Dimensions | Width | 10200 mm (for 2500 kVA without transformer), customizable according to project requirements |
| Depth | 1000/1200 mm | |
| Height | Standard height: 2500 mm (excluding the 150 mm base). The top busbar compartment height can be adjusted according to project requirements. | |
| System Input Switch | 2000/2500/3200/4000/5000 A | |
| Compensation Capacity | Up to 600 kvar per cabinet, 100 kvar per module, selectable according to project requirements | |
| UPS Configuration | Up to 600 kVA per cabinet, selectable according to project requirements | |
| Feed Output | The capacity, quantity, and number of feeder circuits can be customized | |
| Busbar Connection | Full-link copper busbar connection | |
| Monitoring System | Equipment status detection, fault detection and alarming, power quality analysis (including harmonics, three-phase imbalance, and power factor), selective protection coordination between upstream and downstream circuit breakers, electrical load monitoring, active energy analysis by peak/flat/valley periods, transformer and busbar temperature monitoring, health index evaluation, trend analysis, and intelligent curve display. | |
| Installation Method | Supports integrated on-site installation | |
| Operating Temperature | 0 to +40℃ | |
| Storage Temperature | -40 to +70℃ | |
| Relative Humidity | ≤93% RH (non-condensing) | |
| Altitude | 0 to 4000m, above 1000m, derating applies according to industry standards | |

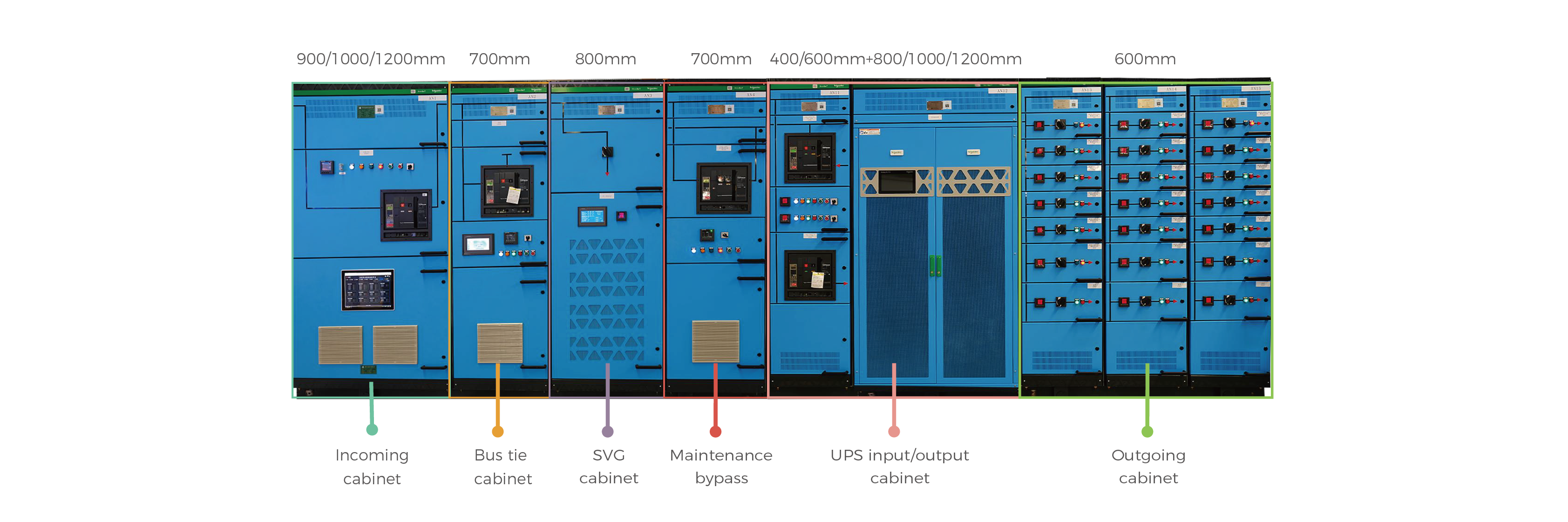

SYSTEM COMPOSITION

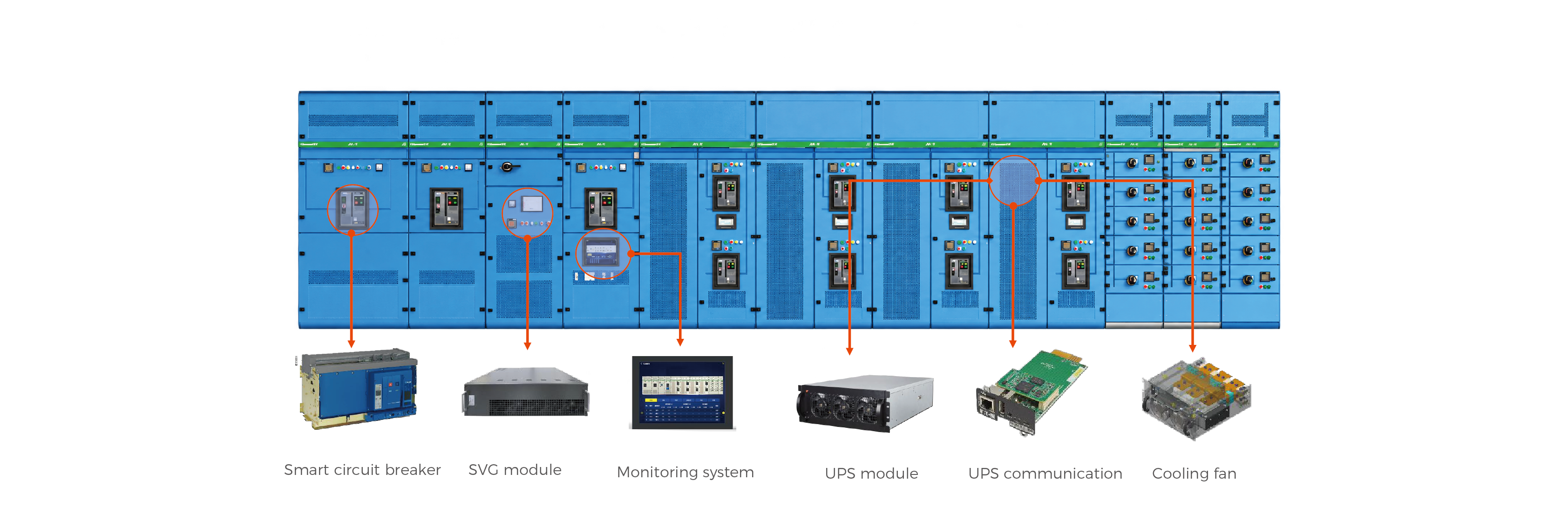

CORE COMPONENTS
