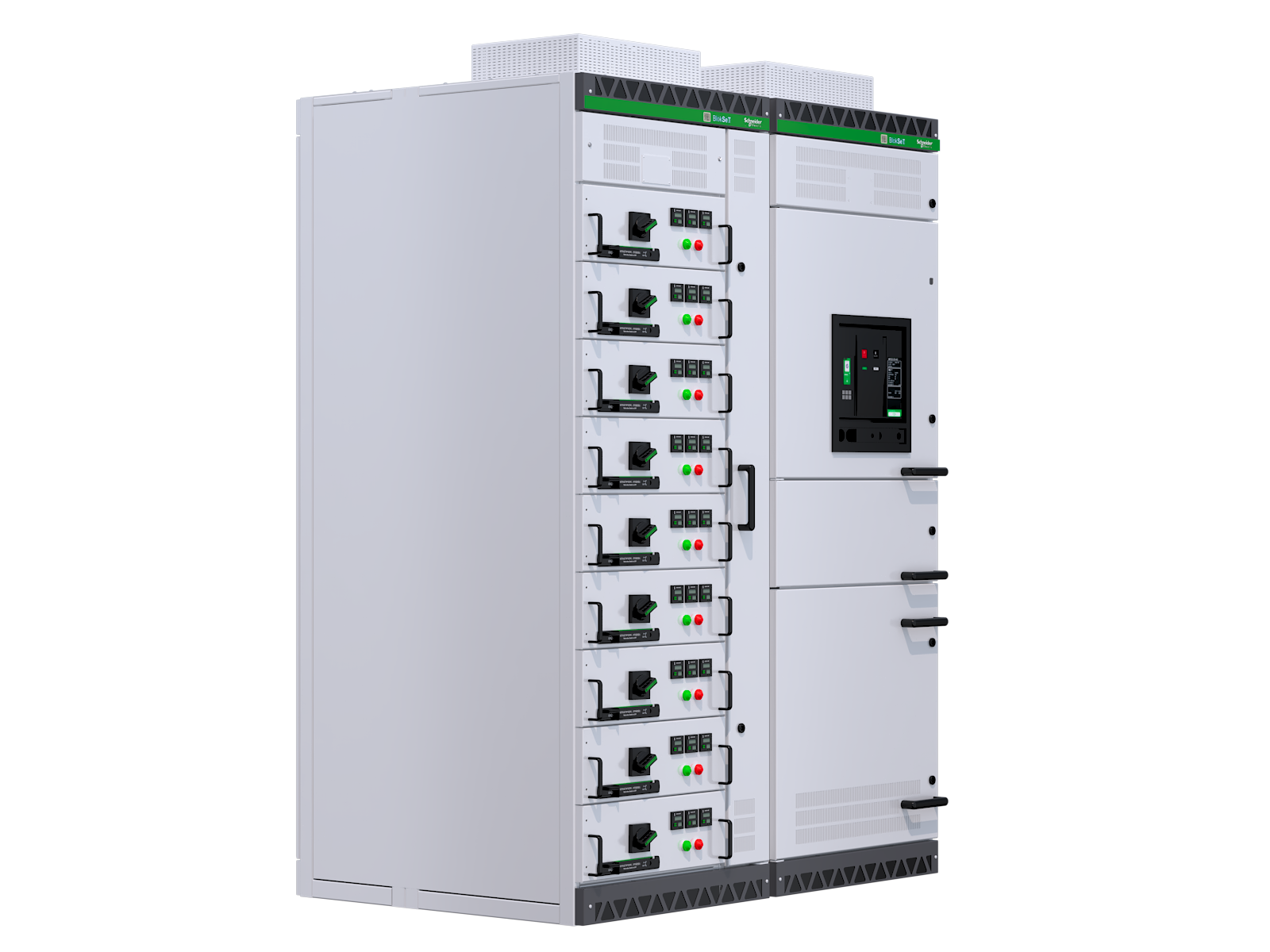

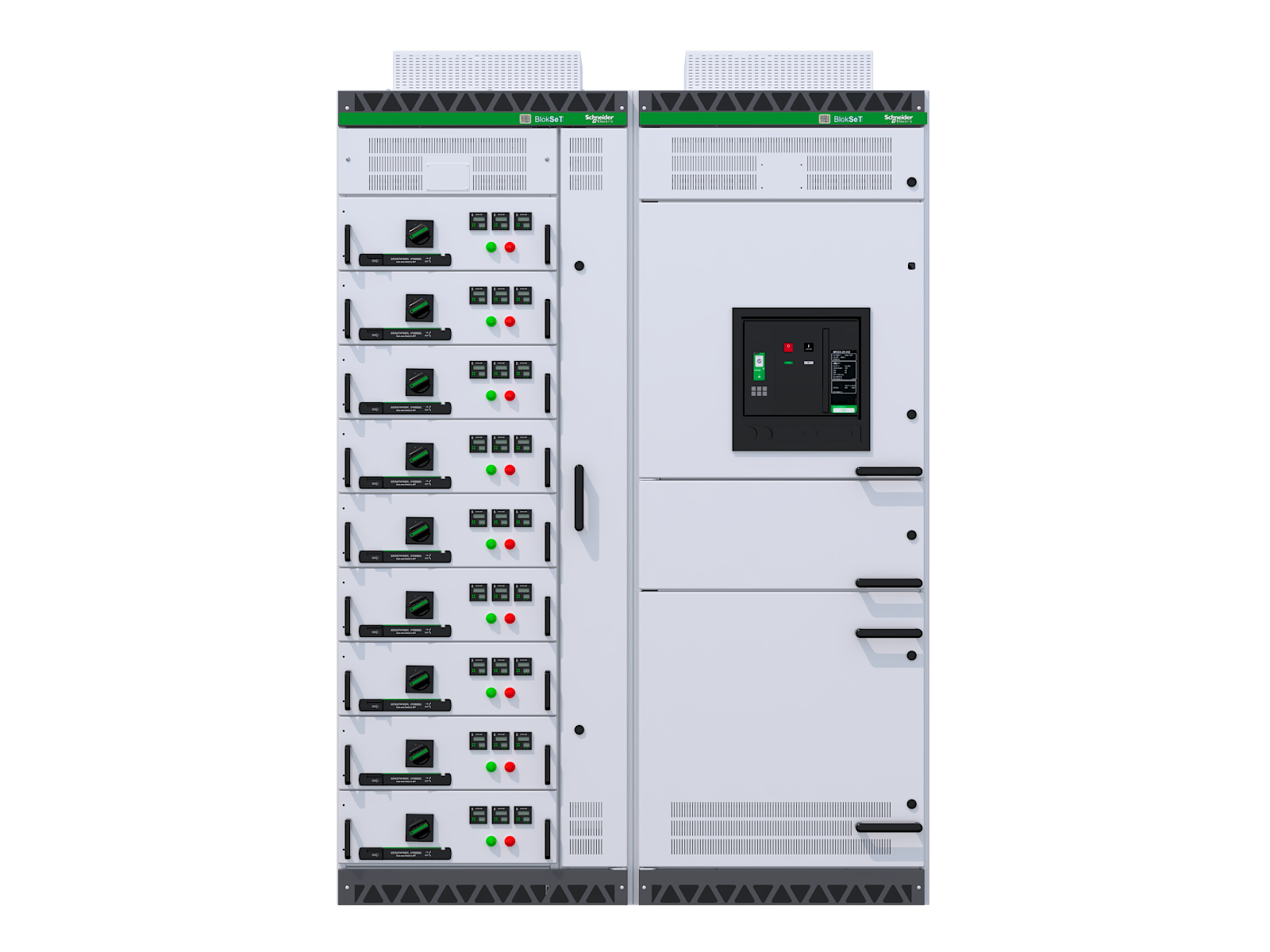

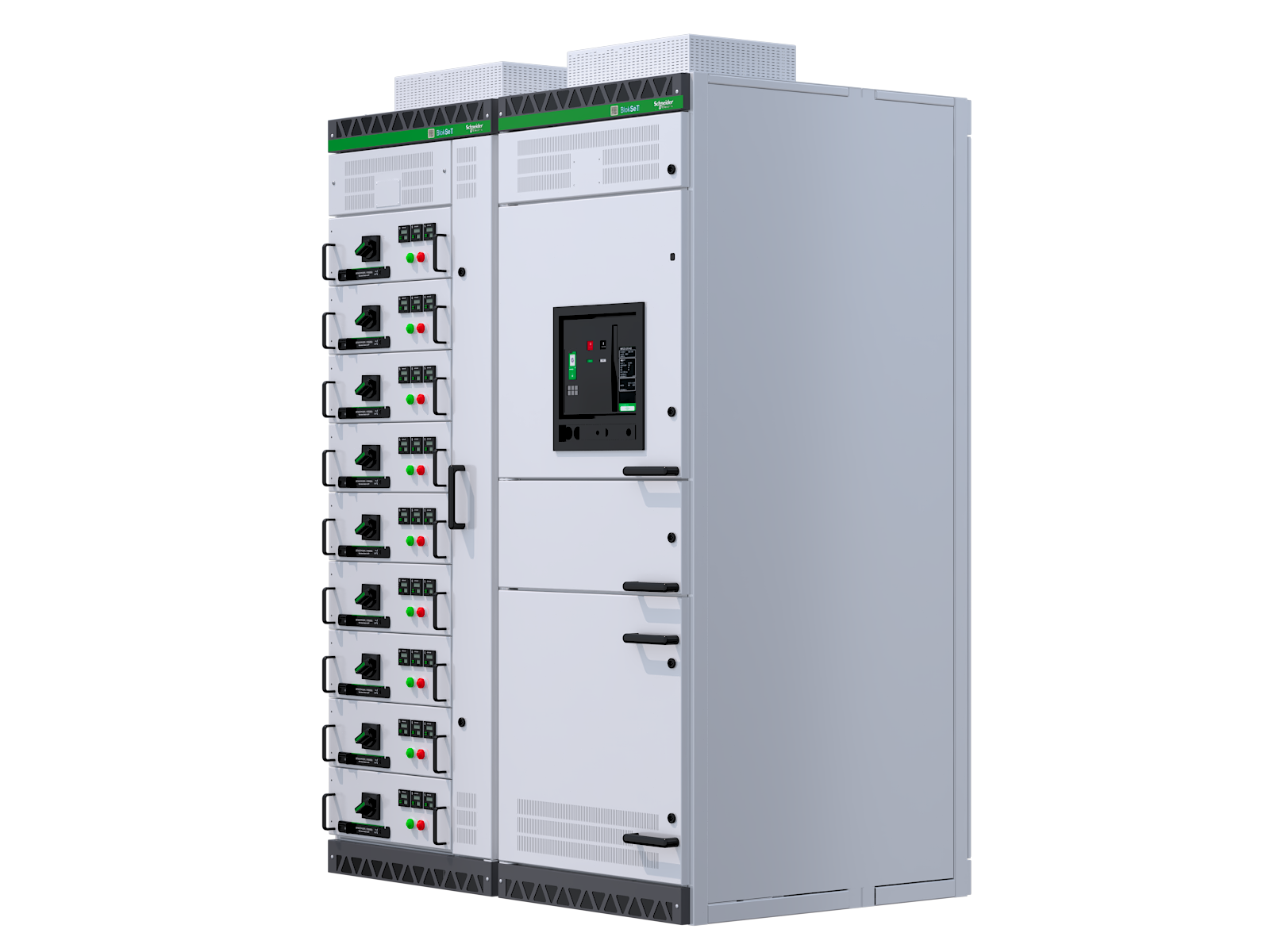

BLOKSET Intelligent Low-Voltage SwitchgearLow-Voltage Switchboard
Schneider-authorized high-quality switchgear for large-capacity applications. Features flexible busbar system (eases installation and maintenance), enhanced drawer protection, and reliable internal arc fault protection. Complies with IEC 61439.2 & GB/T 7251.2-2023, widely used in power systems, data centers, rail transit, medical facilities, and commercial buildings.
Core Advantages & Features
-
Rapid Connection Fishplate DesignHorizontal busbars use bolt-free fishplate tech for quick, reliable connections. Pre-installed sliding fishplates ease on-site integration/assembly.
01 -
Dual Clamp TechnologyVertical busbars use self-compensating dual clamps for tool-free, secure installation and stable performance under operational stress.
02 -
Vertical Busbar Insulation BarrierIP20 red insulation barrier marks live zones. Insulated clamps boost protection for safe maintenance.
03 -
Modular Frame SystemStandardized frames (600/700mm × 600mm W×D) enable flexible expansion via side/rear modules, facilitating easy cable routing and adaptable configuration.
04 -
Standard-Thickness Busbar System5mm uniform busbars for high standardization. Supports single-bus (4000A) and double-bus (6300A) to meet diverse needs.
05 -
Comb-Type Busbar ClampSpecialized comb-type clamps with alloy reinforcement guarantee easy installation, high stability, and exceptional mechanical strength.
06
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 400 V / 690 V |
| Rated insulation voltage | 1000 V |
| Rated current | Up to 6300 A |
| Frequency | 50 Hz / 60 Hz |
| Rated impulse withstand voltage | 12 kV |
Rated short-time withstand current | 100 kA |
| Seismic withstand capability | Level 9 |
| Salt spray test | 200 h |
| Internal arc test | 100 kA/3s |
| High altitude | 4000 m |
| Electromagnetic compatibility (EMC) test report | Available |
| Withdrawal module dimensions | 2M, 4M/2, 3M, 4M, 6M, 8M, 9M, 12M |
| Protection rating | IP30-IP54 |
