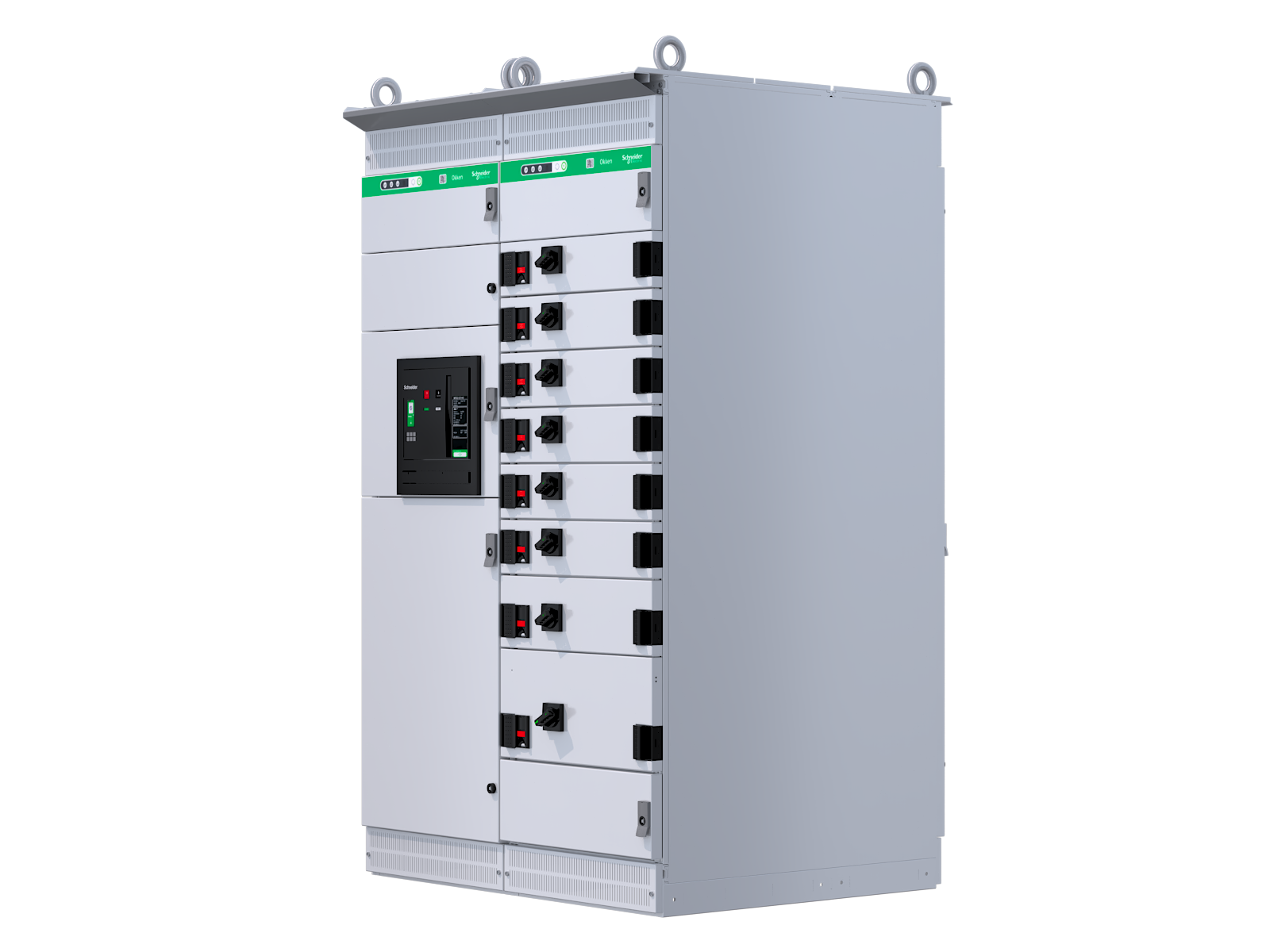

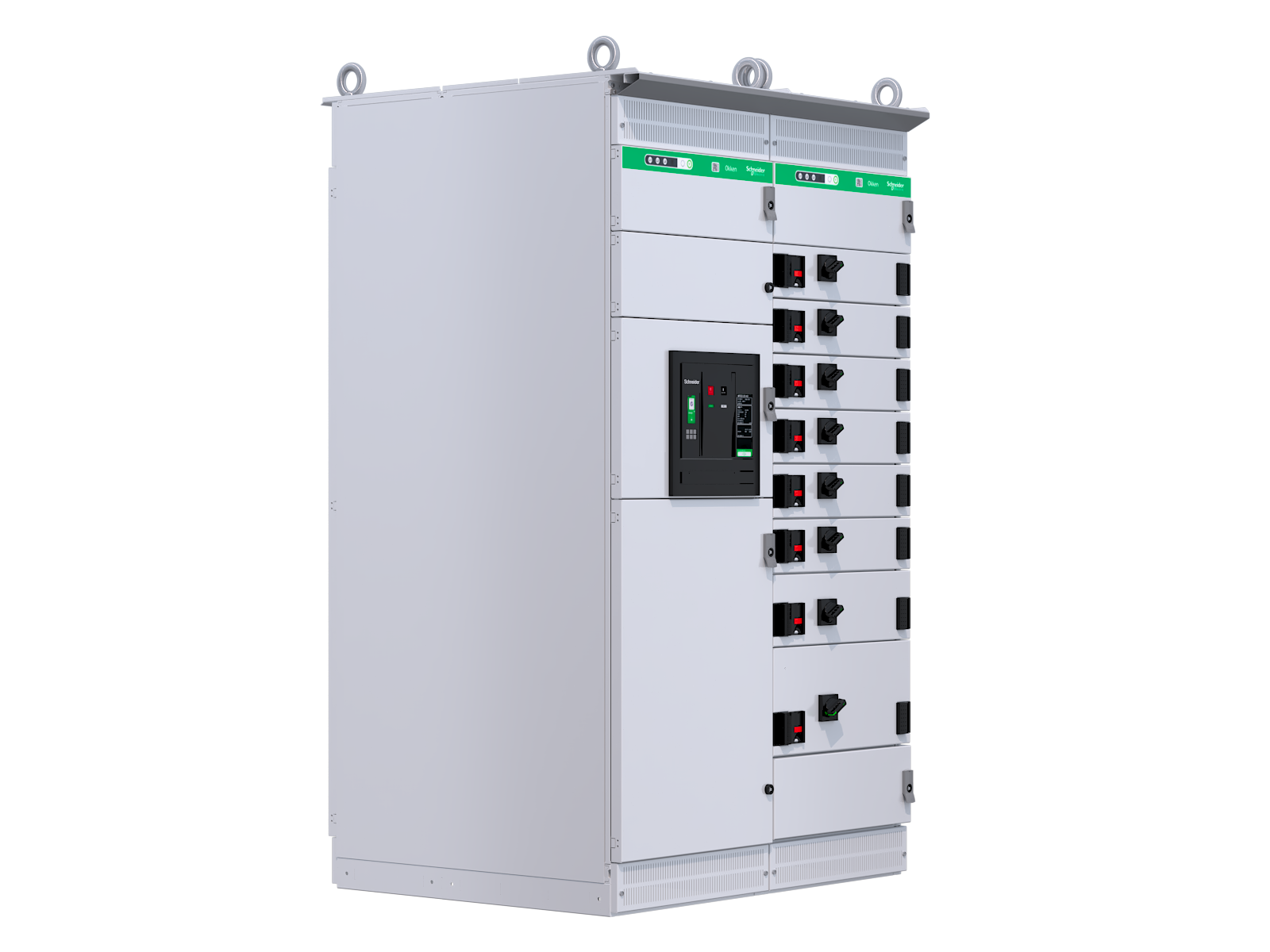

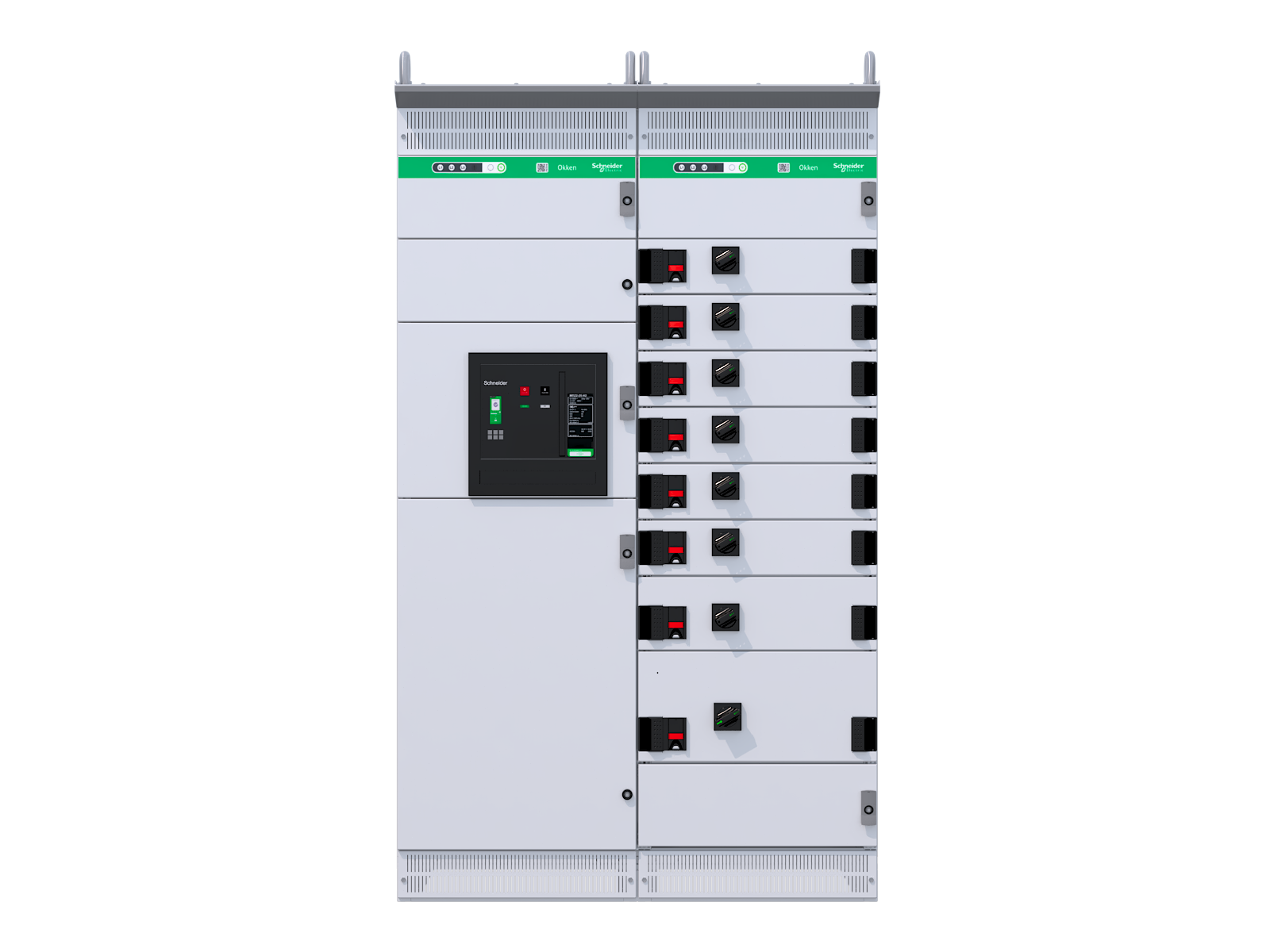

OKKEN Intelligent Low-Voltage SwitchgearLow-Voltage Switchboard
The OKKEN switchgear is an authorized model from Schneider Electric France, featuring leading technical performance. It offers superior flexibility and advanced intelligent solutions.
-
The switchgear integrates innovative designs (ployfast pre-fabricated connection, dual-clamp, sliding fishtail busbar). Enables efficient installation, reliable operation, easy maintenance for complex power distribution.
Core Advantages & Features
-
Rapid Connection Fishplate DesignHorizontal busbars use bolt-free fishplate tech for quick, reliable connections. Pre-installed sliding fishplates simplify on-site integration/assembly.
01 -
Dual Clamp TechnologyVertical busbars with self-compensating dual clamps: tool-free secure installation, stable performance under stress.
02 -
Direct Busbar Insulation BarrierIP20 red insulation barrier marks live zones. Insulated clamps boost protection for safe maintenance.
03 -
Detachable Cabinet Top BeamRemovable top beams facilitate efficient cabinet alignment and integration on-site, reducing assembly time.
04 -
Unified Busbar SpecificationThe standardized 10×40 busbar dimension achieves up to 7300A with dual sets, ensuring easy scalability and current rating consistency.
05 -
Integrated Transport BasePre-installed transport bases simplify handling, ensuring stable, efficient logistics and installation.
06
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 400 V / 690 V |
| Rated insulation voltage | 1000 V |
| Rated current | Up to 7300 A |
| Frequency | 50 Hz / 60 Hz |
| Rated impulse withstand voltage | 12 kV |
Rated short-time withstand current | 150 kA |
| Seismic withstand capability | Nuclear grade seismic resistance |
| Salt spray test | 192 h |
| Internal arc test | 100 kA/0.5s |
| High altitude application | 4000 m |
| Electromagnetic compatibility (EMC) test report | Available |
| Drawer modular | 4M, 6M, 6M/2, 8M, 12M, 18M |
| Ingress protection rating | IP30-IP54 |
