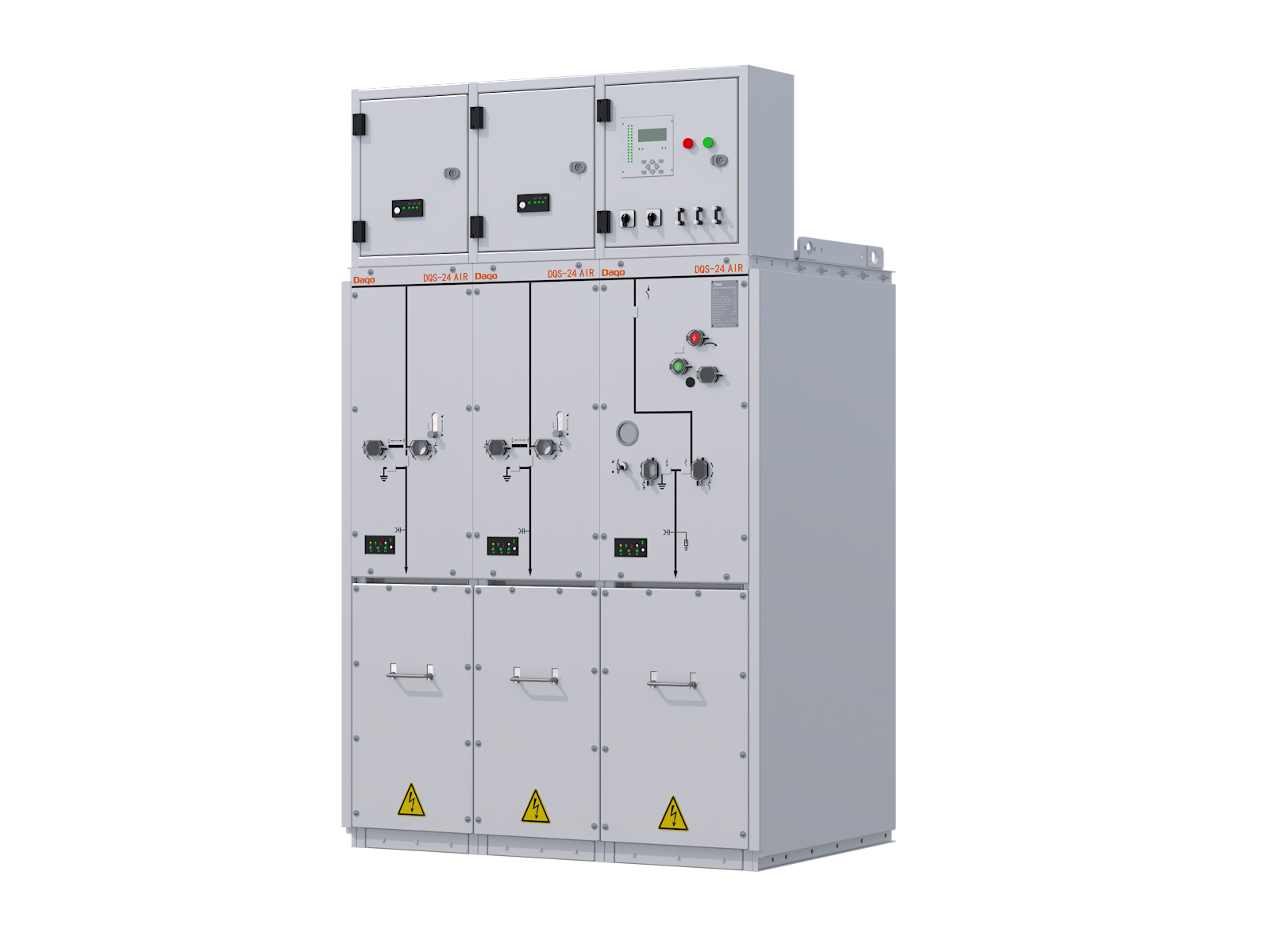

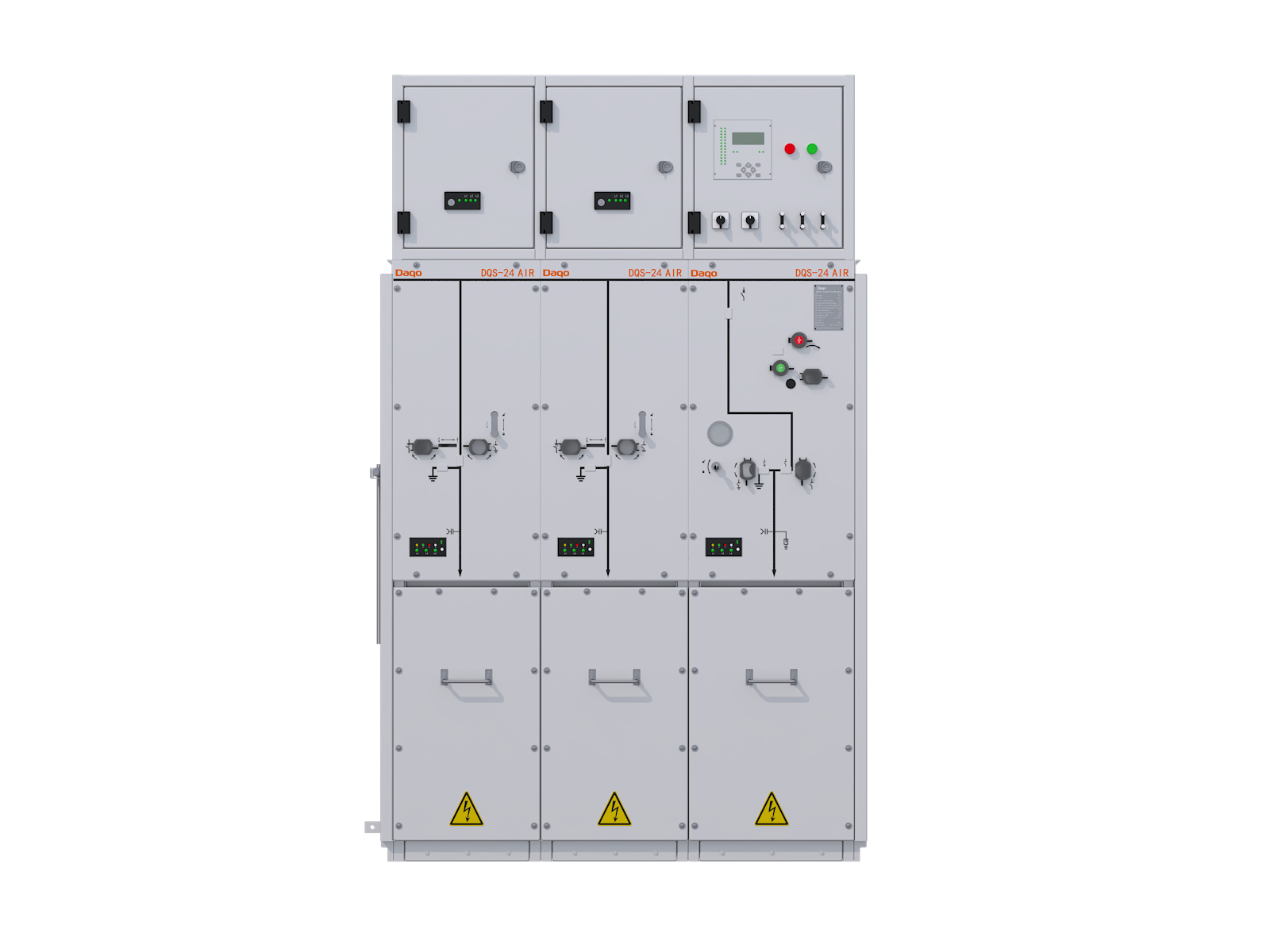

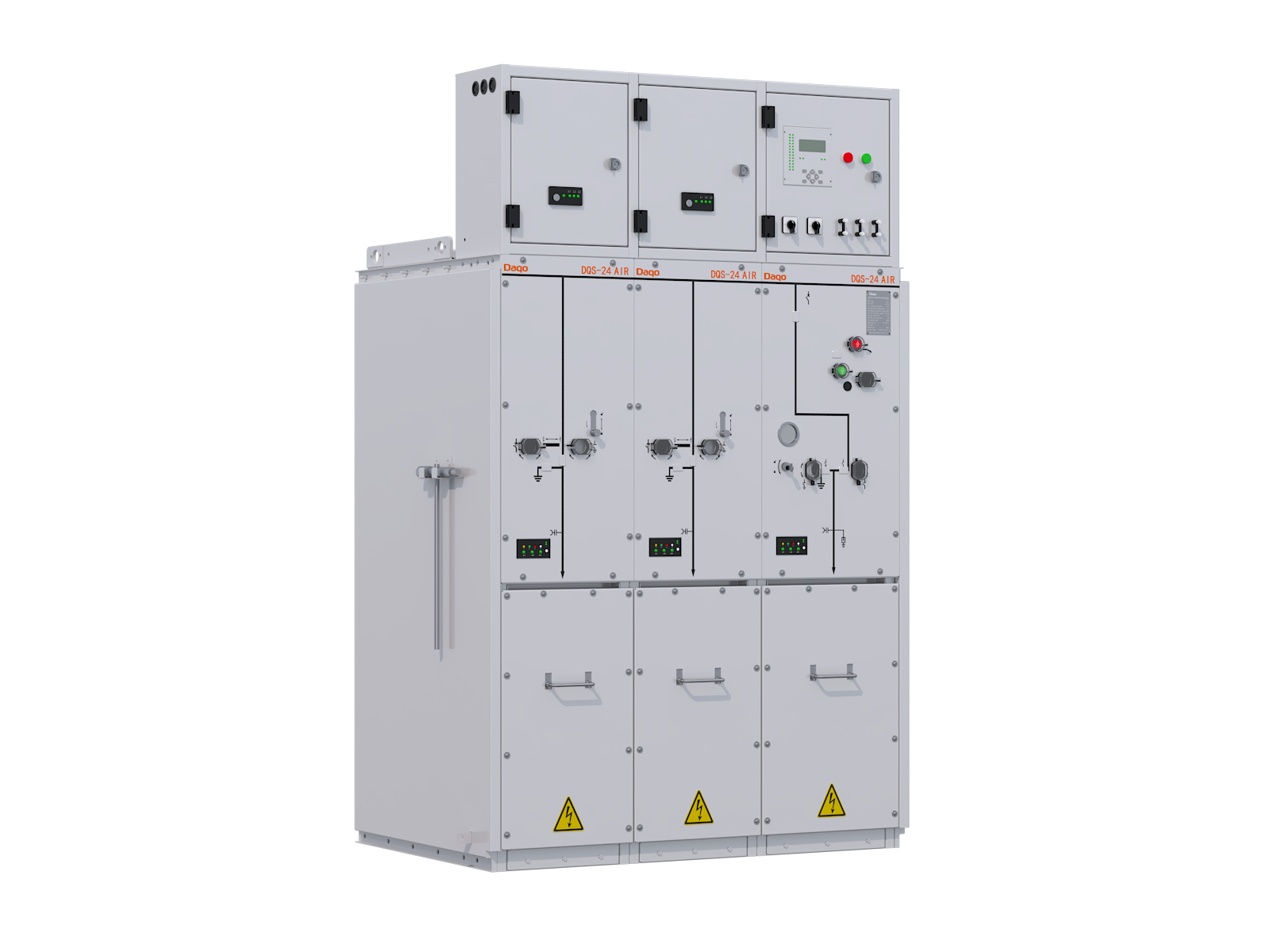

DQS-24 AIR Eco-Friendly Gas Insulated Ring Main Unit (SF₆-Free)Medium-Voltage Switchboard
The DQS AIR series eco-friendly gas-insulated ring main unit is a newly developed product by Daqo. It integrates internationally advanced technologies and builds on the Daqo's years of experience in designing and manufacturing fully gas-insulated switchgear, featuring eco-friendly gas insulation and vacuum arc extinguishing.
-
Innovatively designed with globally leading manufacturing, this product embodies energy efficiency and environmental protection across its full lifecycle, from production and use to end-of-life recycling. Compact, maintenance-free, and easy to operate, it delivers high performance and reliable safety. As a green, energy-efficient alternative to SF₆-insulated and solid-insulated switchgear, it is ideal for power distribution network upgrades and construction.
Core Advantages & Features
-
KEMA CertifiedCome with comprehensive KEMA technical certification, meeting rigorous global quality and safety standards.
01 -
Sealed & ResilientSealed high-voltage parts (clean air insulation) resist external interference. Vacuum interrupters extinguish arcs, breakers enable early fault interruption. Optional pressure relief for lifelong maintenance-free safety.
02 -
Space-Saving Compact StructureBoasts a highly compact design, making it ideal for installation in space-constrained areas.
03 -
Durable, High-Strength Gas Tank3mm 304 stainless steel, German TRUMPF laser-crafted, withstands 0.24MPa pressure. Ensures internal arcing safety, airtightness and aesthetics.
04 -
Ultra-Leakproof, Long-Lasting PerformanceGerman SEILER equipment ensures ≤0.1% annual leak rate and 99.99% pure eco-friendly gas, supporting a 40-year service life.
05 -
Flexible Modular ExpansionModular design allows single and common-tank combinations with side and top expansion options, extended busbars are fully enclosed and grounded for safety.
06 -
Misoperation PreventionIntegrated mechanical and electrical interlocking eliminates faults caused by incorrect operations.
07 -
Long Mechanical LifespanVacuum circuit breakers (10,000 times), load switches (5,000 times), three-position switches (3,000 times) boast robust durability, grounding switches handle 5 short-circuit closures.
08 -
Smart Monitoring & AutomationAdvanced monitoring (temperature, density, current and voltage) and automation enable unattended operation and substation "five remote functions".
09 -
Consistent Quality AssuranceClean workshops, fully automated assembly lines, and factory inspection, testing equipment ensure product consistency and quality.
10
Technical Parameters
| Basic Parameters | Circuit Breaker Unit | Load Break Switch Unit |
|---|---|---|
| Rated voltage | 24 kV | 24 kV |
| Rated frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| Rated power frequency withstand voltage (1min) | 50 kV / 60 kV | 50 kV / 60 kV |
| Rated lightning impulse withstand voltage | 125 kV / 145 kV | 125 kV / 145 kV |
| Rated continuous current | 630 A | 630 A |
| Rated short-time withstand current (3s) / Rated peak withstand current | 21 kA / 54.6 kA | 21 kA / 54.6 kA |
| Rated short-time withstand current of earthing circuit (2s) | 21 kA / 54.6 kA | 21 kA / 54.6 kA |
| Rated making current | 54.6 kA | 54.6 kA |
| Rated making current of earthing switch | 54.6 kA | 54.6 kA |
| Rated short-circuit breaking current | 21 kA | / |
| Mechanical endurance | 10000 Times | 5000 Times |
| Electrical endurance | Grade E2 | Grade E3 |
| Internal arc classification | 21 kA, 1 s | 21 kA, 1 s |
| Maximum permissible gas leakage rate | ≤0.1% / Year | ≤0.1% / Year |
| Gas compartment protection level | IP 67 | IP 67 |
| Enclosure protection class | IP 54 / IP 4X | IP 54 / IP 4X |
