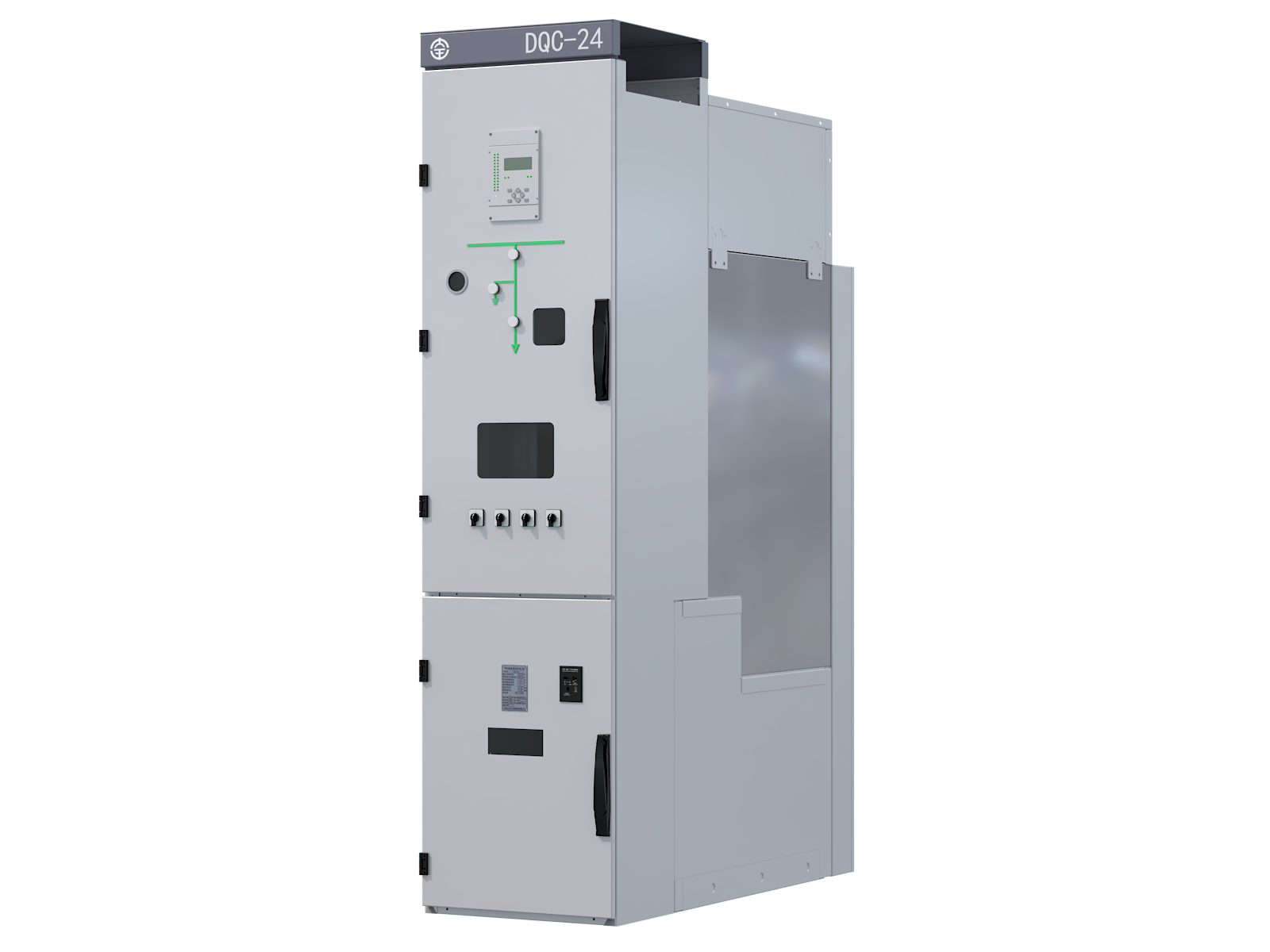

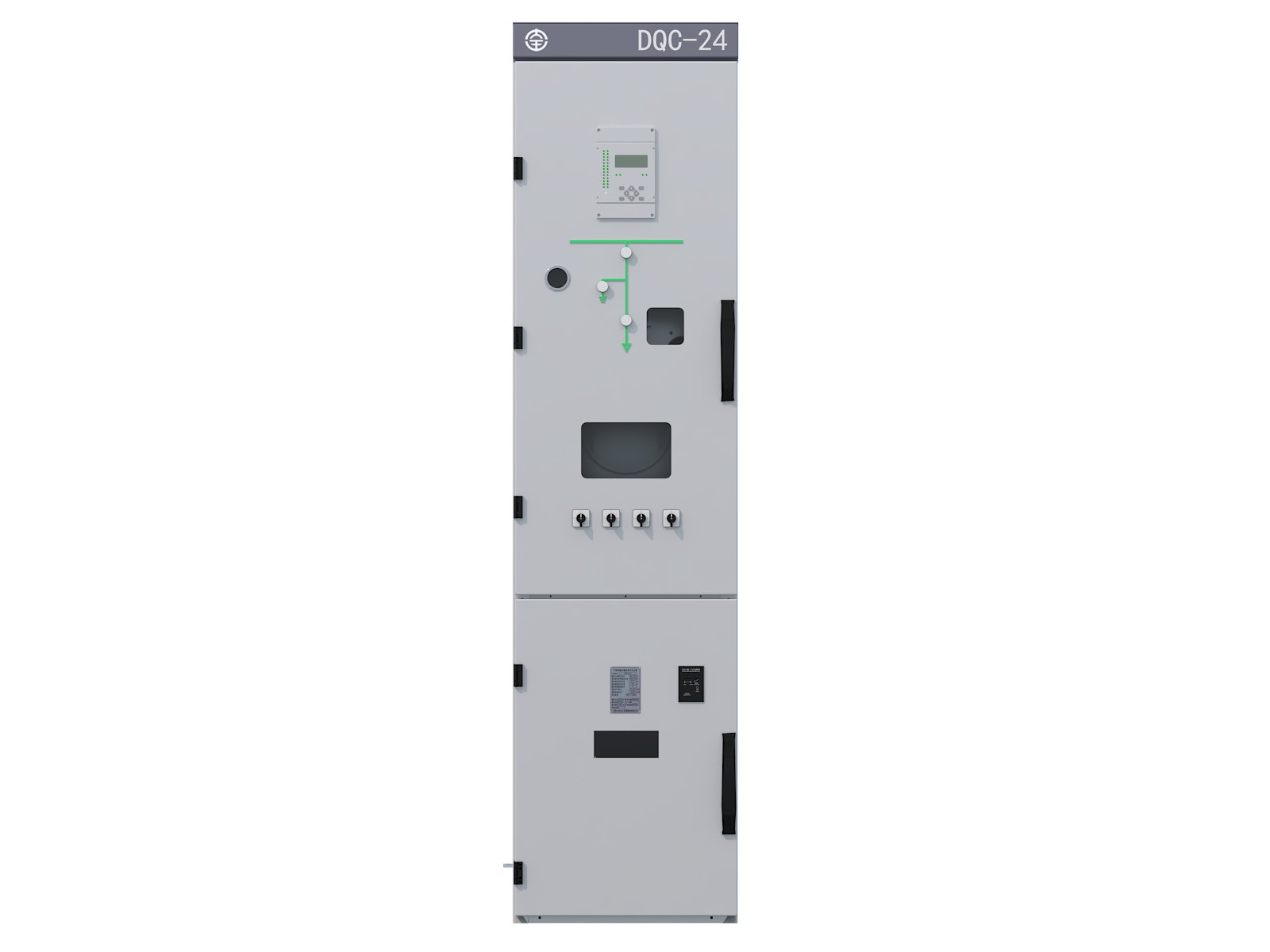

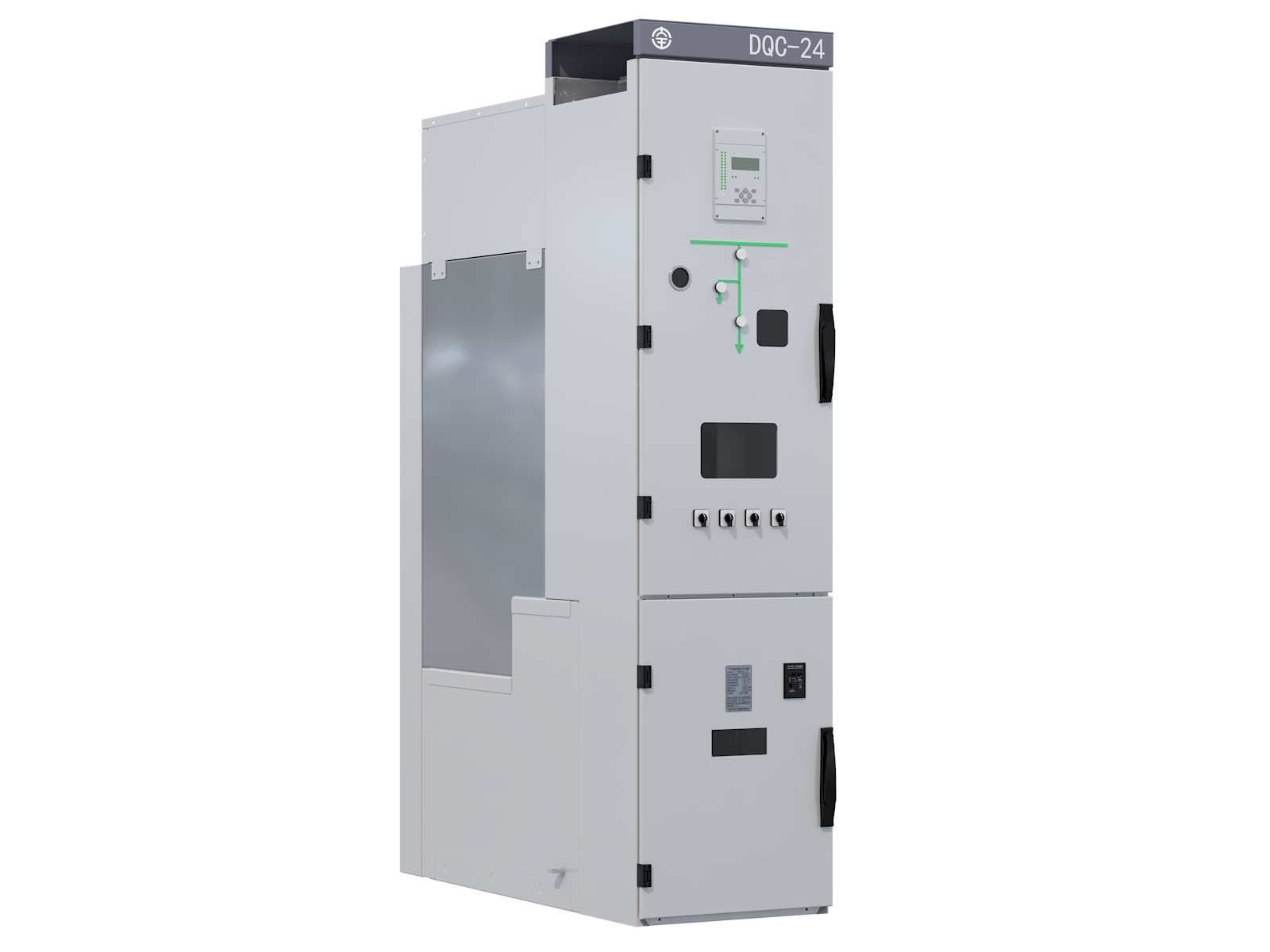

DQC-24 Gas-Insulated Digital SwitchgearMedium-Voltage Switchboard
The DQC-24 C-GIS utilizes advanced laser welding and helium leak detection processes to create a sealed, maintenance-free system for small substations and commercial complexes.
-
It features a direct-acting three-position mechanism for stable performance and a long lifespan
-
The modular operating mechanism is maintenance-free and easily replaceable
-
Customized design meets various non-standard requirements
Core Advantages & Features
-
Gas-Insulated ReliabilityHigh-voltage components insulated with gas for dependable performance.
01 -
Compact & Efficient DesignOptimized structure reduces spatial footprint while maintaining full functionality.
02 -
Modular Interface SystemPlug-in insulation interfaces allow easy cabinet connection and expansion.
03 -
Advanced Interlocking MechanismsIntegrated interlocks between disconnectors and breakers prevent misoperation.
04 -
Solid Insulated Busbar SystemSolid inter-cabinet busbars eliminate gas refilling and ensure system safety.
05 -
High-Precision ManufacturingLaser welding and helium detection provide long-term airtightness.
06 -
Maintenance-Free SystemNo regular servicing required, reducing life-cycle costs.
07
Technical Parameters
| Basic Parameters | |
|---|---|
| Rated voltage | 24 kV |
| Rated frequency | 50 Hz |
| Rated current | 1250 A |
| Rated power frequency withstand voltage | 65/79 kV (Isolation gap) |
| Rated lightning impulse withstand voltage | 125/145 kV (Isolation gap) |
| Mechanical life | 1000 times |
Rated short-circuit breaking current | 31.5 kA |
| Main circuit rated short-time withstand current (4s) | 31.5 kA |
| Main circuit rated peak withstand current | 82 kA |
| Internal arc classification | AFLR, 31.5 kA, 1s |
| Rated working pressure (20°C gauge) | 0.03 MPa |
| Minimum working pressure (20°C gauge) | 0.02 MPa |
| Enclosure protection level | IP42 |
| Gas chamber protection level | IP67 |
| Annual gas leakage rate | ≤0.01% |
产品文档
-
Product Brochure
-
DQC-24 Gas-Insulated Digital Switchgear
2025-11-25
Download PDF
