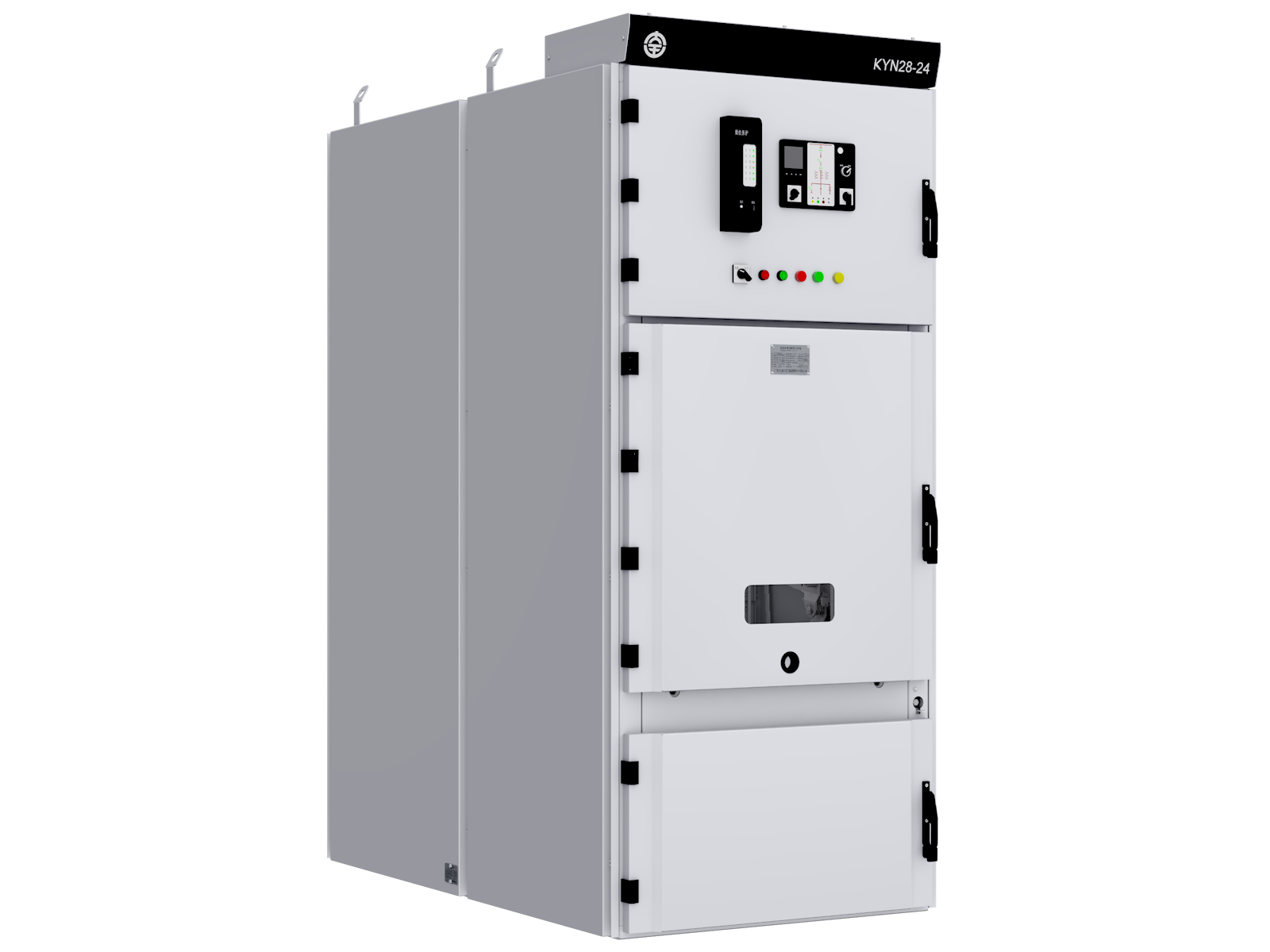

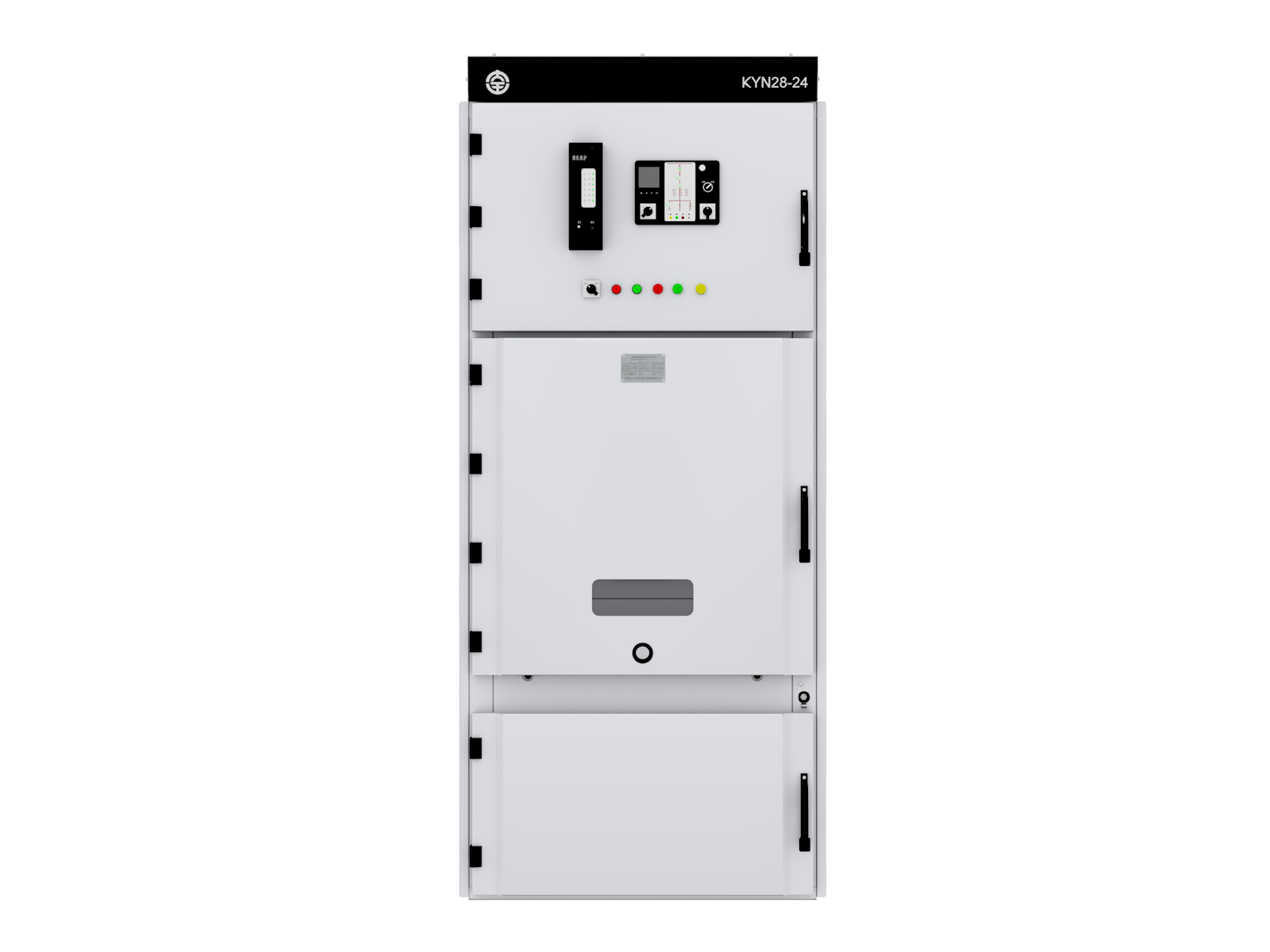

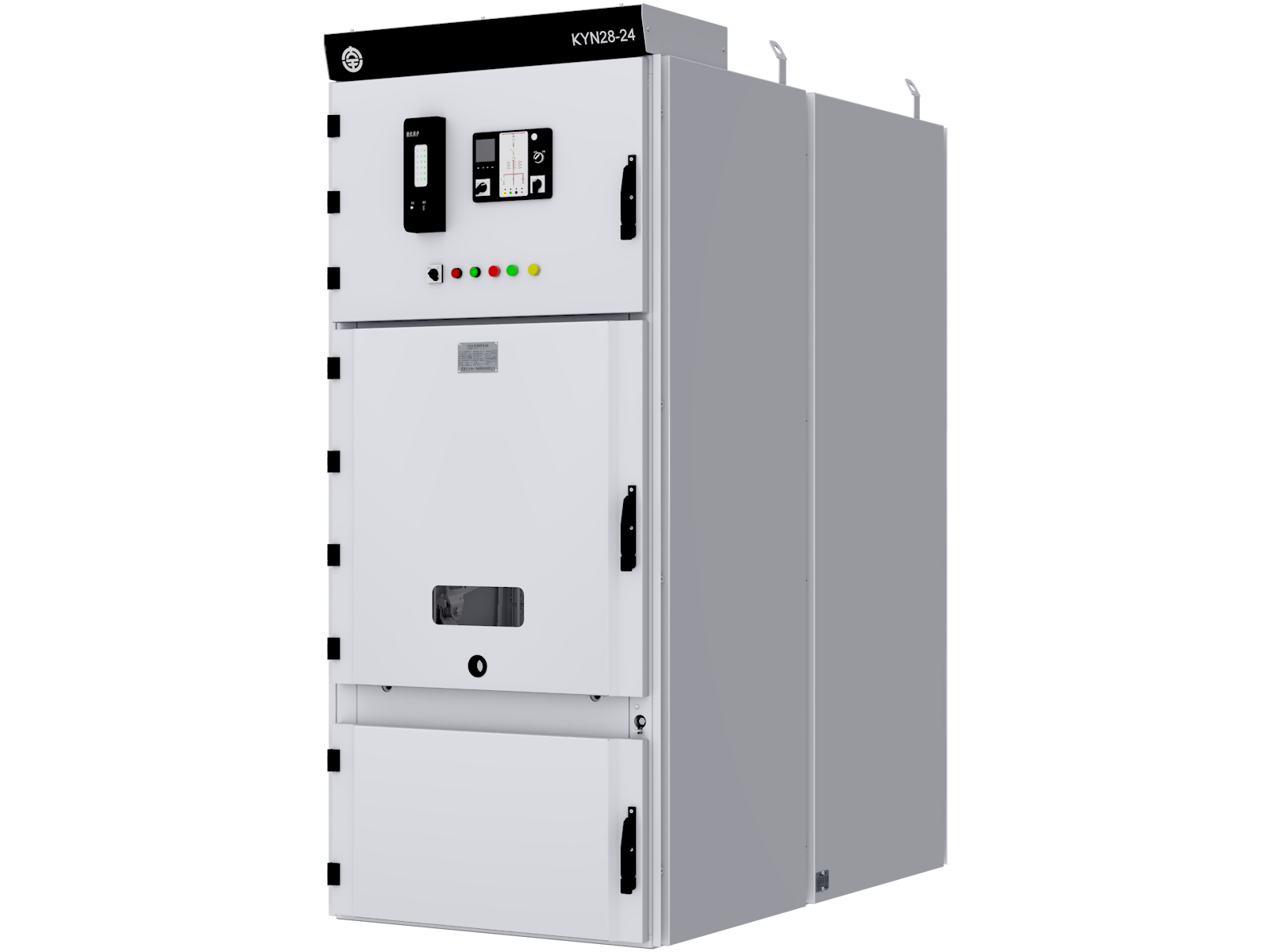

KYN28-24 Digital SwitchgearMedium-Voltage Switchboard
The KYN28-24 armored switchgear is designed for 24kV single-busbar power systems, providing reliable power distribution, control, and monitoring. It is built for critical applications requiring high safety standards.
-
Switchgear with full internal arc-resistant design and AG5 (intensity 9) high seismic rating. Features five-interlock protection and rational heat dissipation for meeting safety standards, compliant with state Grid/Southern Power Grid requirements.
Core Advantages & Features
-
Metal-Clad Safety StructureEffectively prevents accident propagation and ensures system reliability.
01 -
Complete Compartment IsolationProvides independent separation between high- and low-voltage areas.
02 -
Double-Sided MaintenanceCompact design with accessible structure for easy servicing.
03 -
Modular Circuit Breaker UnitEnsures structural simplicity, reliability, and longer lifespan.
04 -
Five-Protection Interlock SystemPrevents misoperation and supports safe closed-door functionality.
05 -
Internal Arc ResistanceWithstands internal arc faults up to 31.5kA/1s.
06 -
Certified ComplianceMeets both Chinese and international standards and has passed all type tests.
07 -
Flexible Switch OptionsCompatible with vacuum circuit breakers, contactors, and load switch trolleys.
08 -
Motorized OperationSupports remote driving of breakers and grounding switches.
09 -
Intelligent MonitoringEquipped with smart modules for real-time condition tracking and lifecycle data analysis.
10
Technical Parameters
| Basic Parameters | |
|---|---|
| Insulation voltage | 24 kV |
| Rated power frequency withstand voltage | 65 kV /1min |
| Rated Lightning Impulse Withstand Voltage | 125 kV |
| Rated frequency | 50 Hz |
| Rated short-time withstand current (4s) | 40 kA |
| Rated peak withstand current | 100 kA |
| Busbar rated current | 4000 A |
| Branch busbar rated current | 4000 A |
| Internal fault arc withstand current | 31.5 kA/1s |
| IP rating | IP41 |
| IK rating | IK10 |
| Dimensions (width × depth × height, excluding front and rear doors) | 1000（1200）mm × 1800（2200）mm × 2360 mm |
| Weight | 800-1450 kg |
