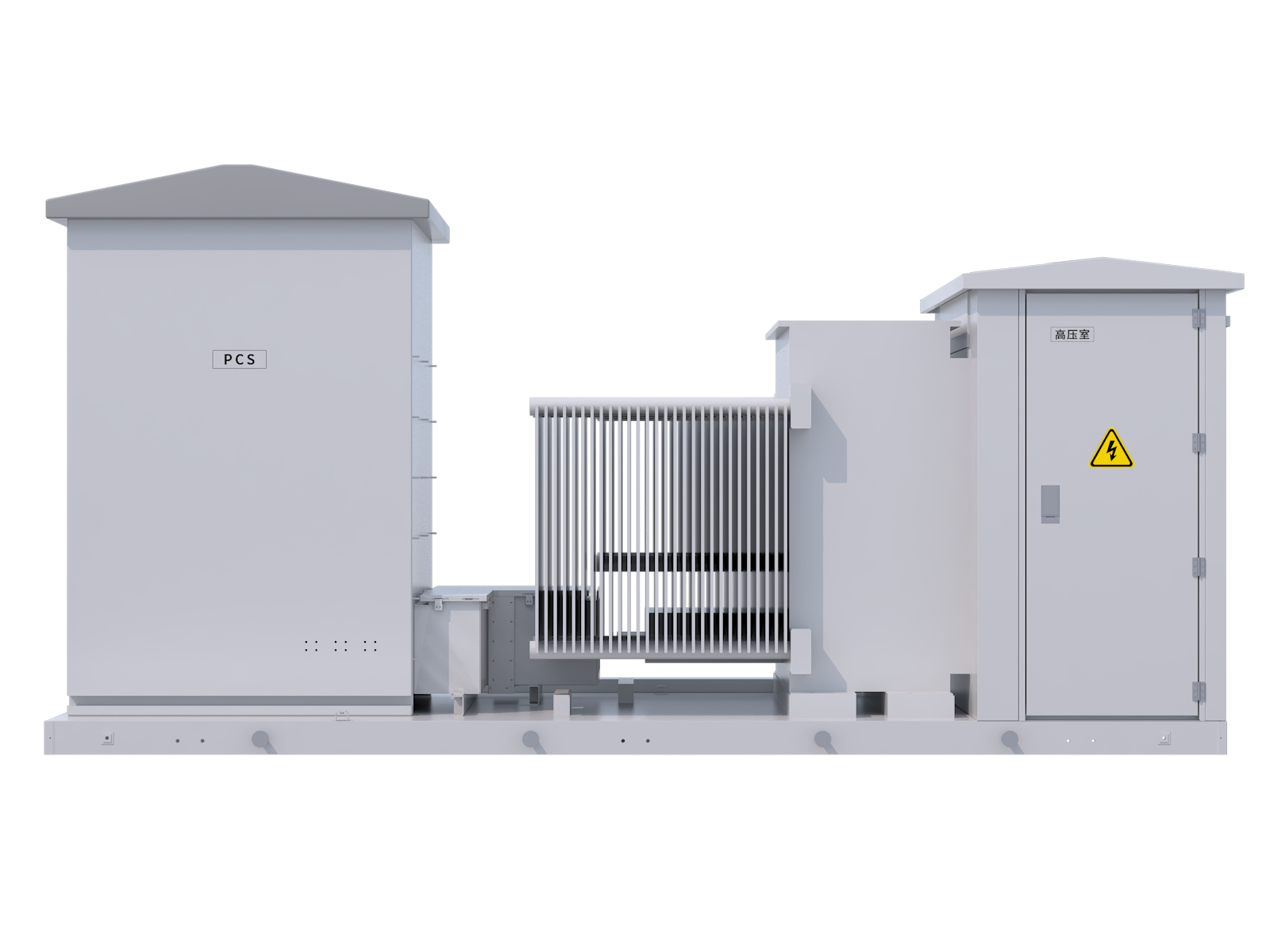

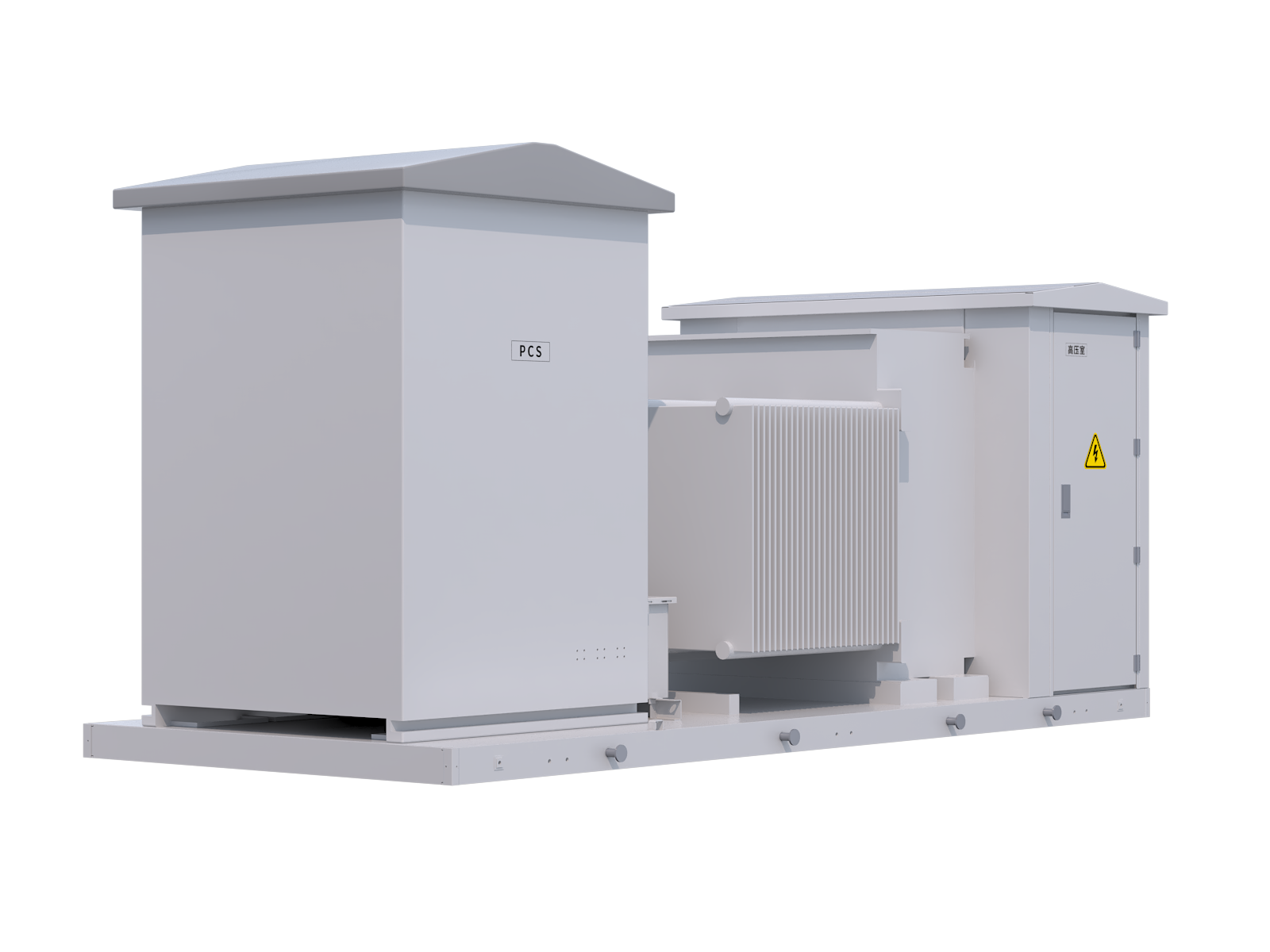

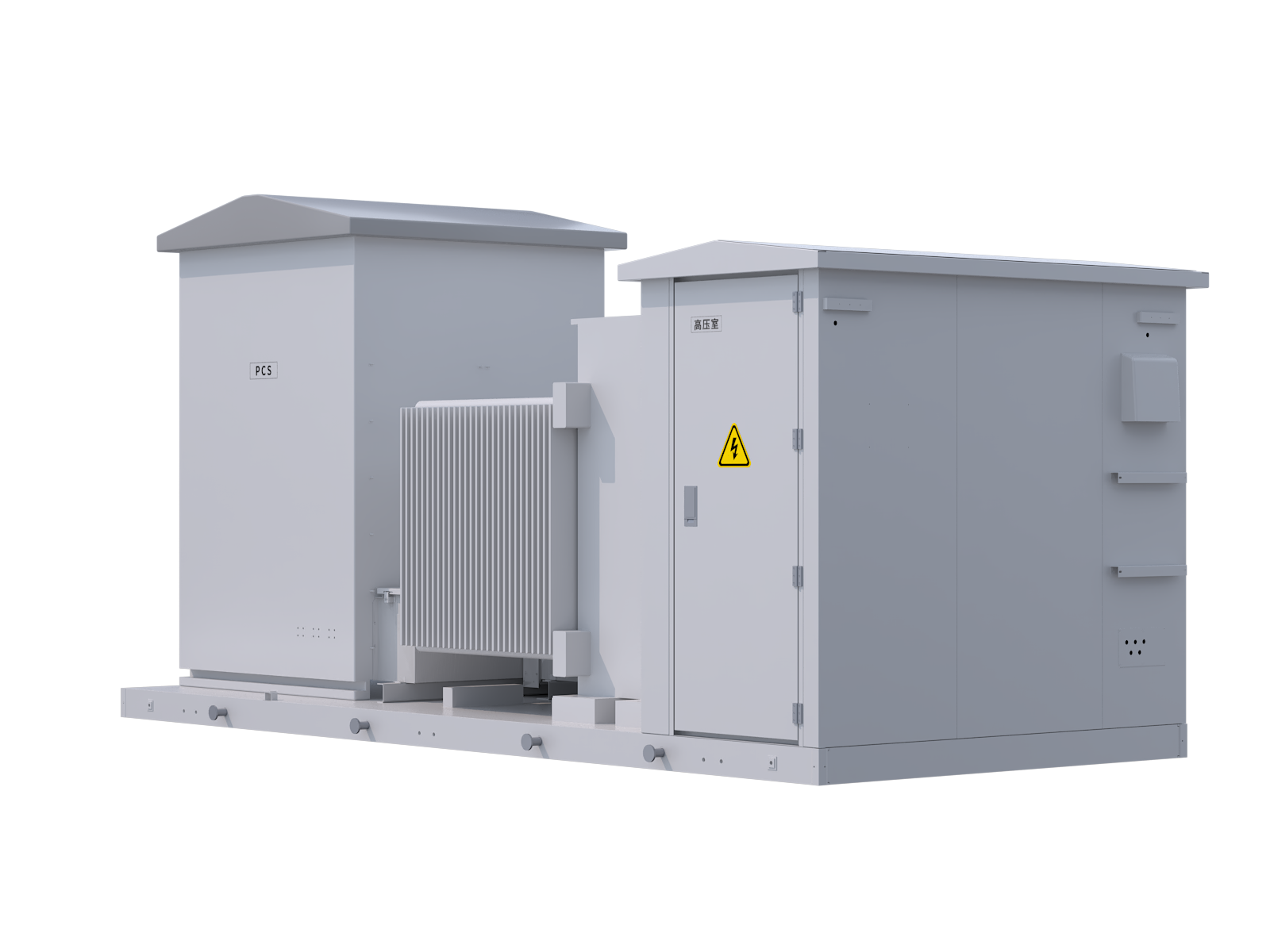

Energy Storage Integrated MachineCubicle Type Substation
The Energy Storage Boost Integrated Machine is a new type of electrical equipment that highly integrates the energy storage converter, step-up transformer, high-voltage switchgear, intelligent control system and related auxiliary systems into a standardized enclosure. Featuring a highly integrated design, it addresses the problems of long construction cycle, difficult coordination and large land occupation associated with the traditional split solution, and serves as one of the core hubs for modern energy storage power stations.
-
High integration and enhanced efficiency
-
Intelligent bidirectional conversion
-
Fast response and precise control
-
Superior safety and reliability
-
Simplified construction and operation management
-
Flexible deployment and scalability
Technical Parameters
| Basic Parameters | |
|---|---|
High-voltage rated voltage | 10 kV~35 kV |
Low-voltage rated voltage | 0.4 kV / 0.69 kV / 0.8 kV |
Maximum operating voltage | 40.5 kV |
| Rated frequency | 50/60 Hz |
Rated capacity | 1500 kVA~6500 kVA @40℃ |
Transformer cooling method | ONAN |
| Operating ambient temperature | -25~60℃ |
| High-voltage switchgear | SF₆ gas-insulated RMU, eco-friendly gas switchgear |
| Protection grade | IP55 (Substation) / IP68 (Transformer) |
| Altitude | 1000~4000 M |
