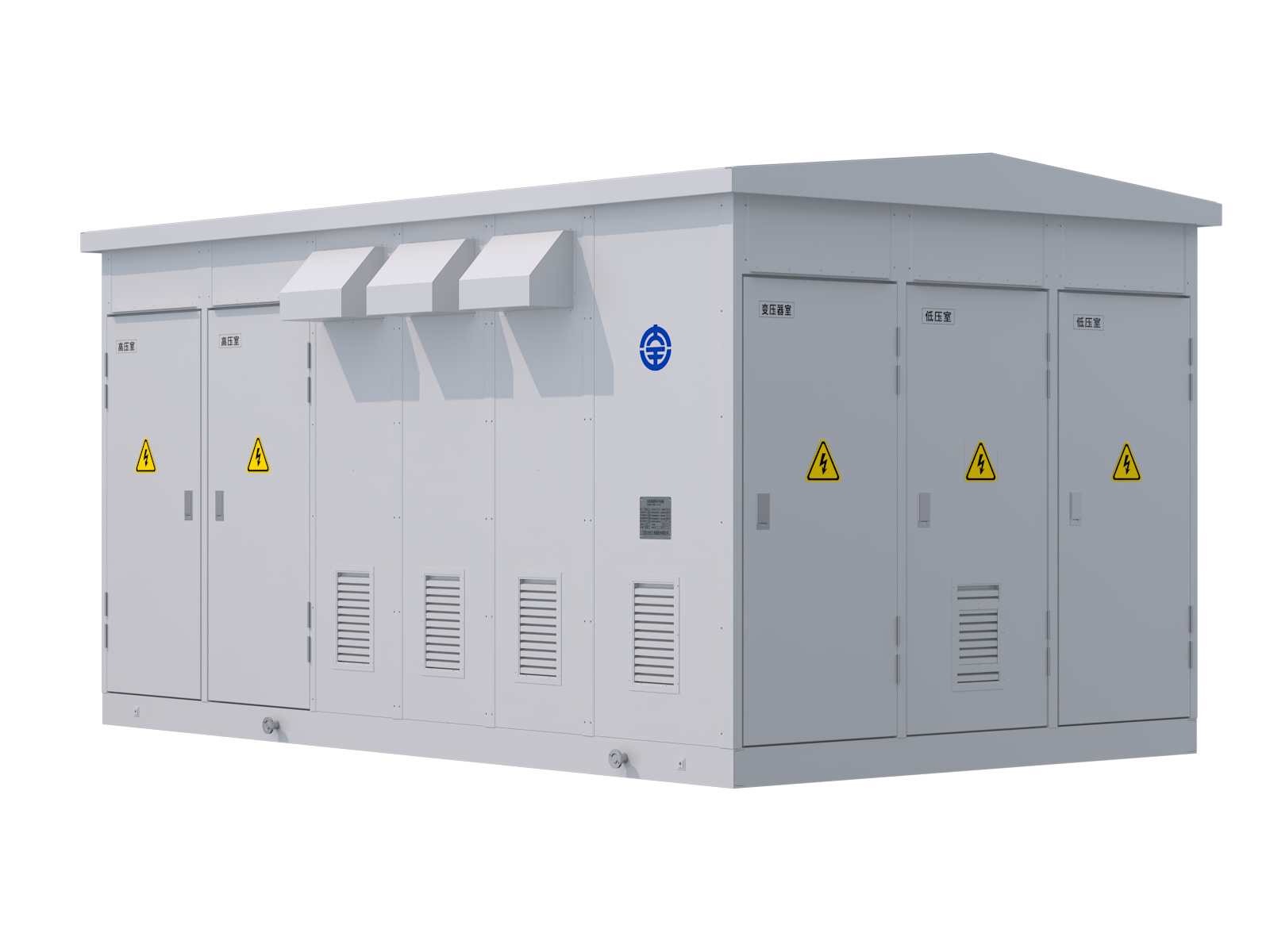

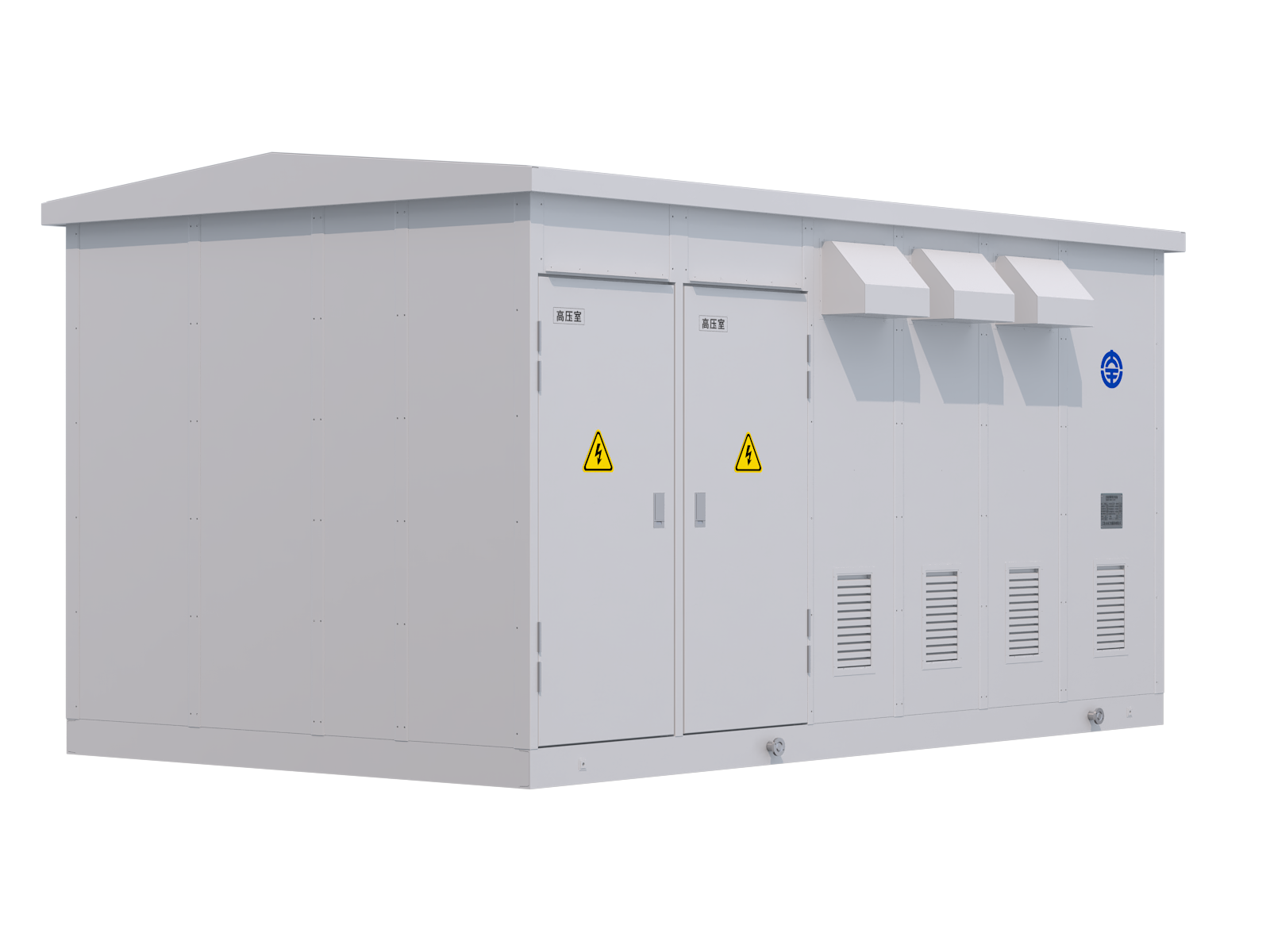

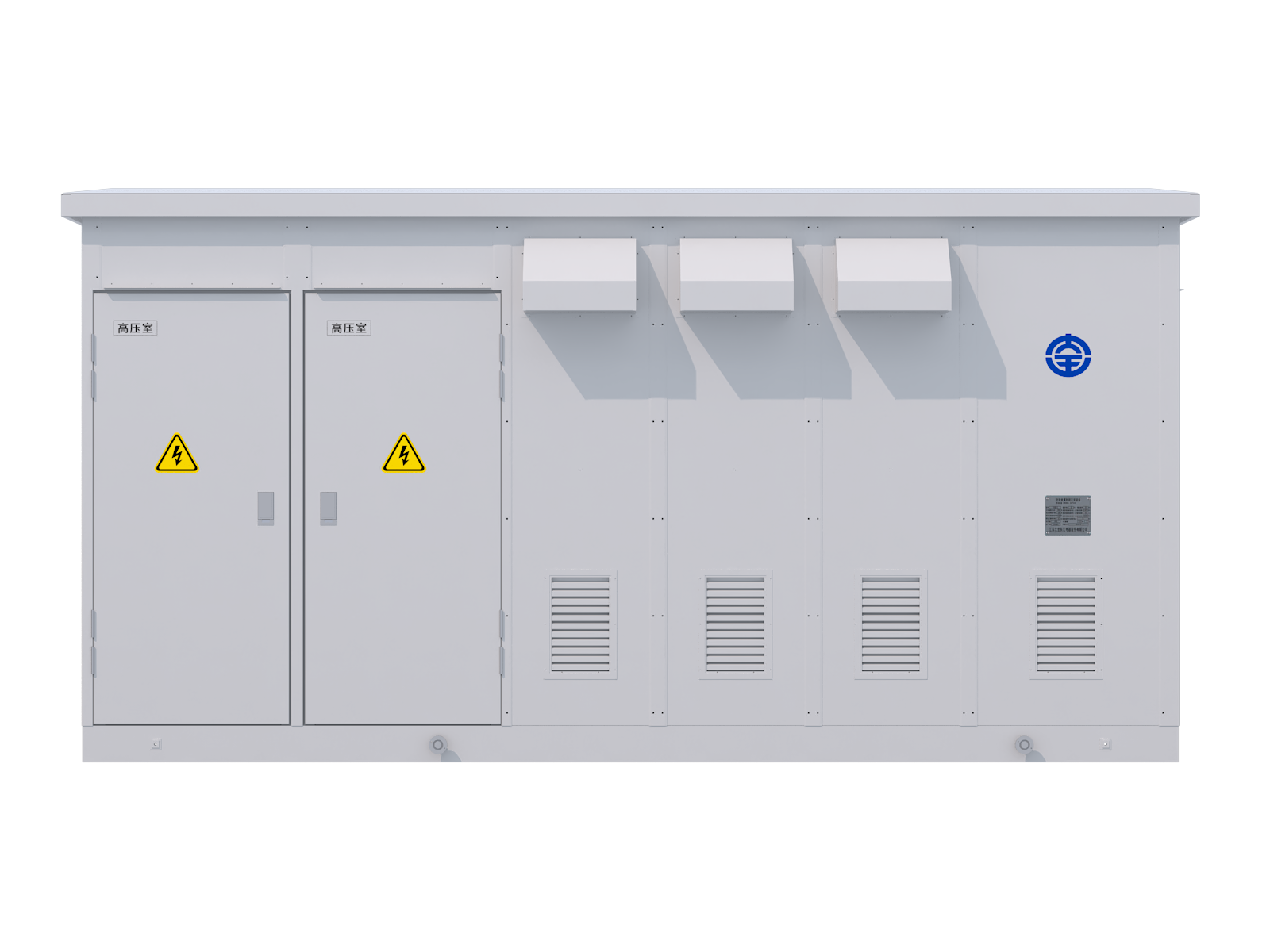

European Type SubstationCubicle Type Substation
It integrates three core components, high-voltage switchgear, transformer, and low-voltage switchgear, each installed in separate, isolated compartments, all enclosed within a single cubicle-type housing.
-
Modular design for maximum flexibility
-
Wide capacity range & versatile application scenarios
-
Safe, reliable & easy to maintain
-
Advanced technology with high-level intelligence
-
Sleek appearance for excellent environmental compatibility
Technical Parameters
| Basic Parameters | |
|---|---|
High-voltage rated voltage | 6 kV~35 kV |
Low-voltage rated voltage | 0.4 kV / 0.69 kV / 0.8 kV / 1.14kV |
Maximum operating voltage | 40.5 kV |
| Rated frequency | 50/60 Hz |
Rated capacity | 1000 kVA~8000 kVA |
| Operating ambient temperature | -25~55℃ |
| Protection grade | IP55 |
| Altitude | ~1000/>1000 M (Customized products) |
