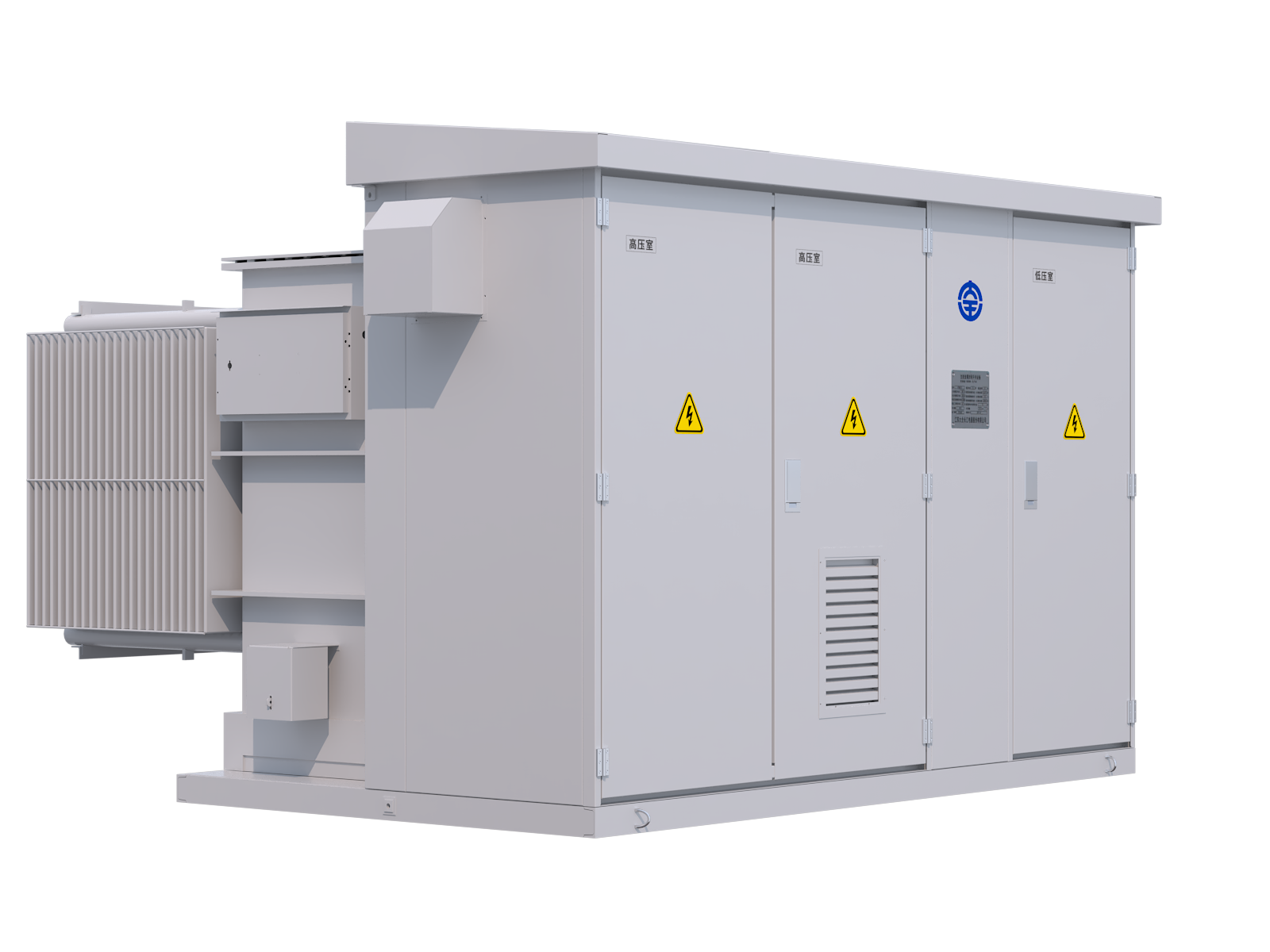

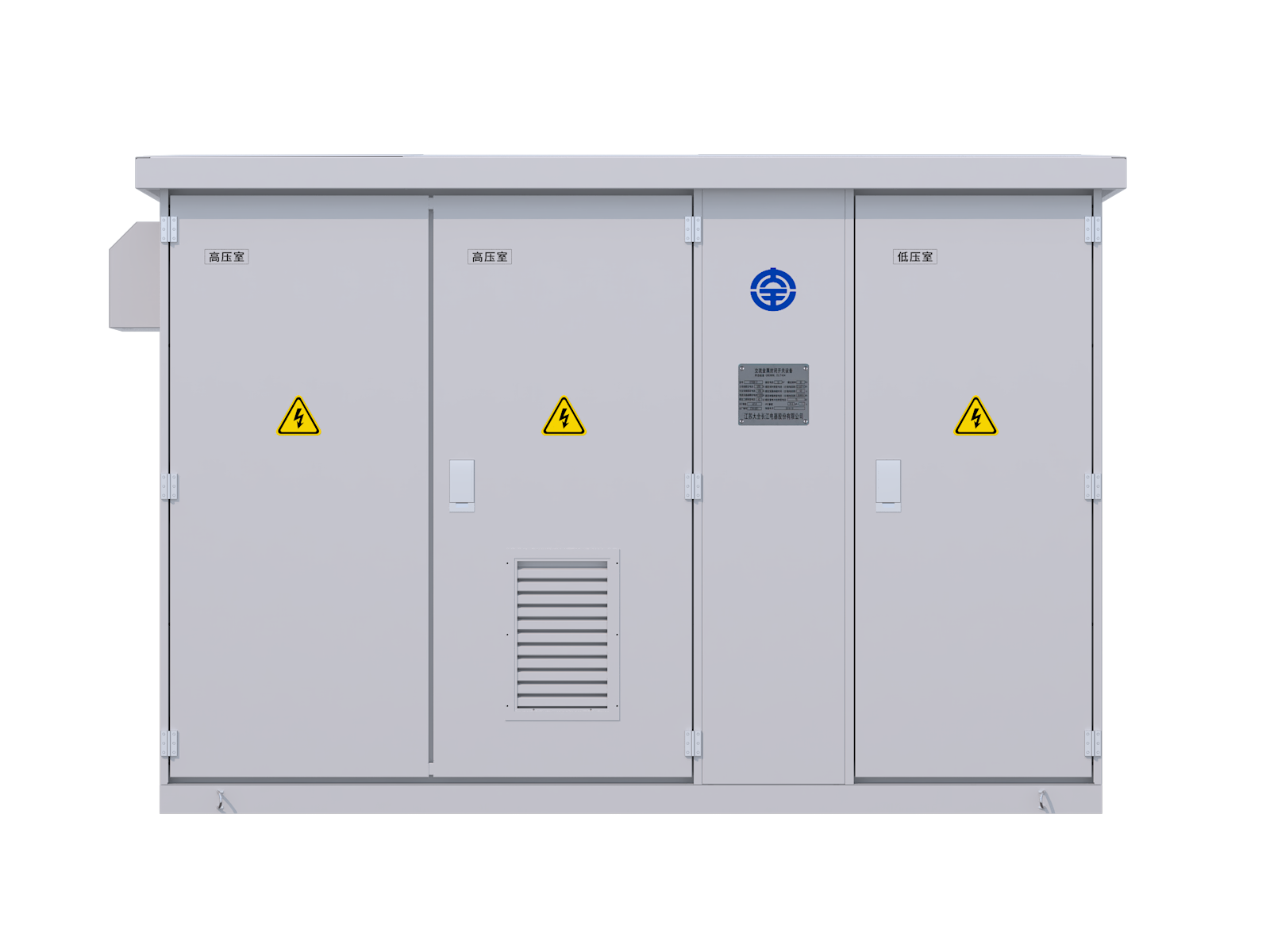

American Type SubstationCubicle Type Substation
The American Type Substation tightly integrates multiple components, including high-voltage load switches, protective fuses, transformer bodies and low-voltage distribution equipment, into a shared oil-filled tank. It does not simply place equipment in an enclosure, but adopts a symbiotic integrated structure.
-
Small size & compact structure
-
Low construction cost & excellent cost-efficiency
-
High power supply reliability
-
Easy installation & short construction cycle
Technical Parameters
| Basic Parameters | |
|---|---|
High-voltage rated voltage | 10 kV~35 kV |
Low-voltage rated voltage | 0.4 kV/0.69kV/0.8kV |
Maximum operating voltage | 40.5 kV |
| Rated frequency | 50/60 Hz |
Rated capacity | ~3300 kVA |
| Transformer cooling method | ONAN |
| Operating ambient temperature | -25~55℃ |
| High-voltage switch | Oil-immersed load switch |
| Protection grade | IP54 (Substation) / IP68 (Transformer) |
| Altitude | ~3000 M |
