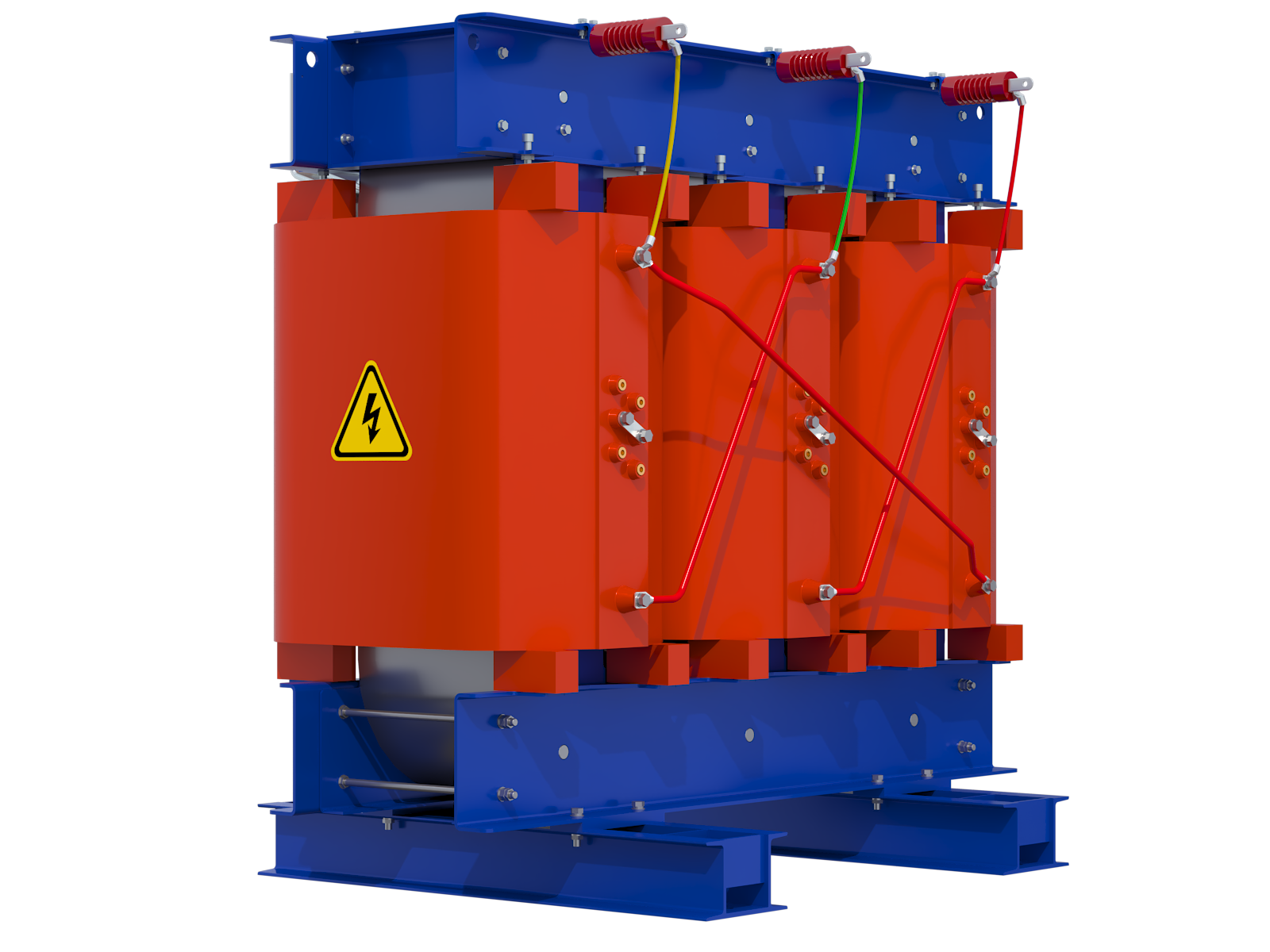

SCBH Series 10kV Amorphous Alloy Dry-Type TransformerTransformer
This transformer combines the low no-load losses of amorphous alloy with the safety benefits of dry-type construction. It is an energy-efficient choice for airports, metros, and high-rise buildings.
-
It offers significant energy savings, reduced operational costs, and enhanced safety features like flame retardancy, complying with IEC, GB, and other key standards.
Core Advantages & Features
-
Amorphous Alloy Use amorphous alloy as core material
01 -
Low No-Load LossReduces no-load loss by 60–70% compared with silicon steel transformers.
02 -
High-Strength Resin CastingVacuum-cast with Class H flame-retardant epoxy resin for a durable and attractive finish.
03 -
Superior Mechanical & Moisture ResistanceStrong short-circuit endurance and reliable performance under humid conditions.
04 -
No Preheating RequiredEnables convenient startup without dehumidification.
05 -
Compact & ReliableLightweight, crack-free, and low partial discharge design.
06 -
High Insulation StrengthExcellent lightning impulse withstand capability.
07 -
Maintenance-Free CoolingHigh heat dissipation and long service life.
08 -
Energy-Saving PerformanceLow losses ensure remarkable energy efficiency.
09
Technical Parameters
| Basic Parameters | |
|---|---|
| Operating Conditions | Indoor Installation |
| Model | SCBH15、SCBH17、SCBH19 |
| Capacity | 30~4000 kVA |
| Rated voltage | High voltage/low voltage：10/0.4 kV（customizable for non-standard voltages） |
| Impedance | 4~10% |
| Insulation class | Class F、Class H |
| Vector group | Dyn11 |
| Insulation level | LI75AC35/AC5 |
Executive standards | GB 20052-2024 energy efficiency limits and grades for power transformers GB/T 22072-2018 technical parameters and requirements for dry-type amorphous core distribution transformers GB/T 1094.11-2022 power transformers - part 11: dry-type transformers |
Product Documents
-
Product Brochure
-
SCB Series Transformer
2025-09-02
Download PDF
