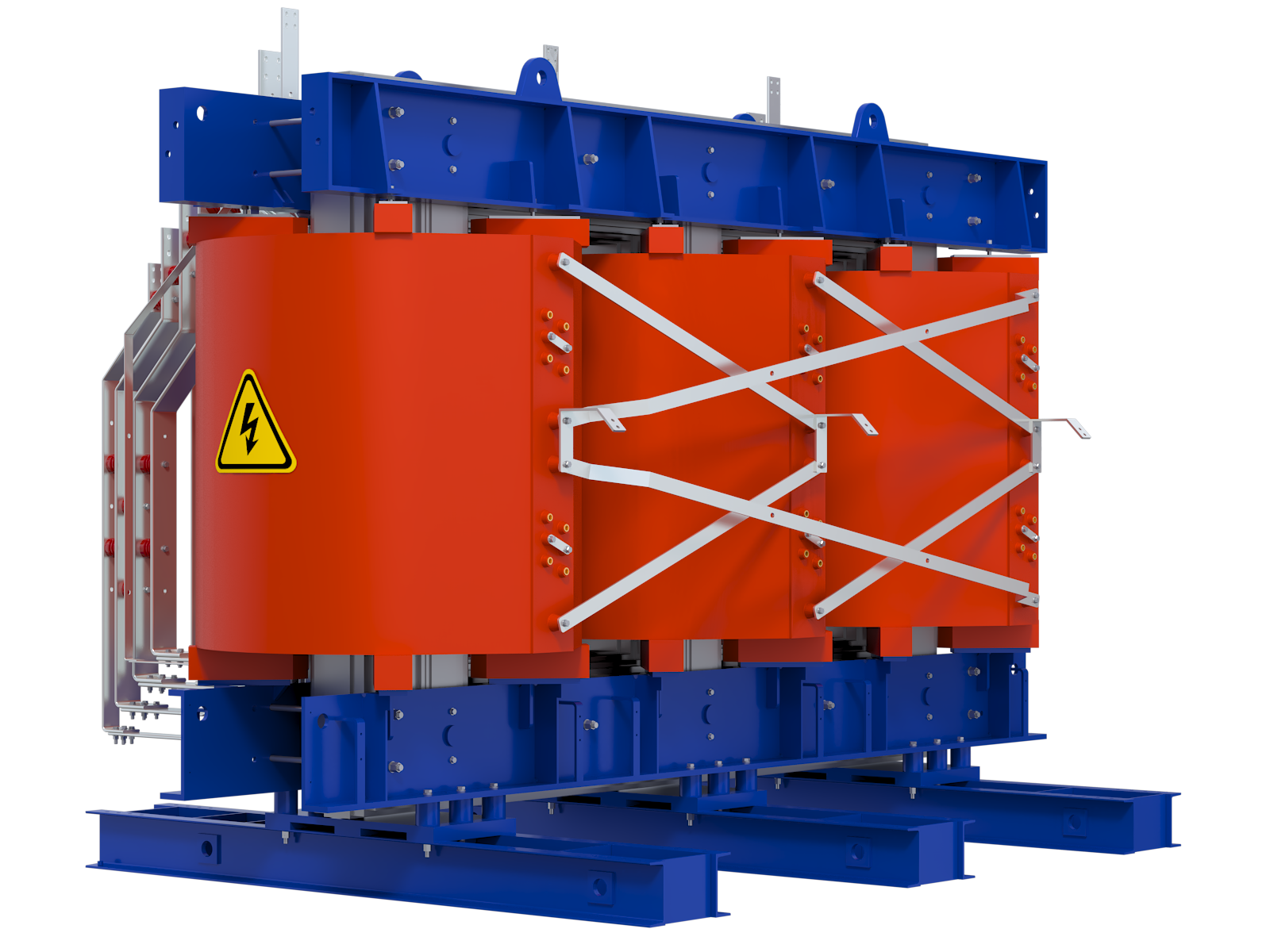

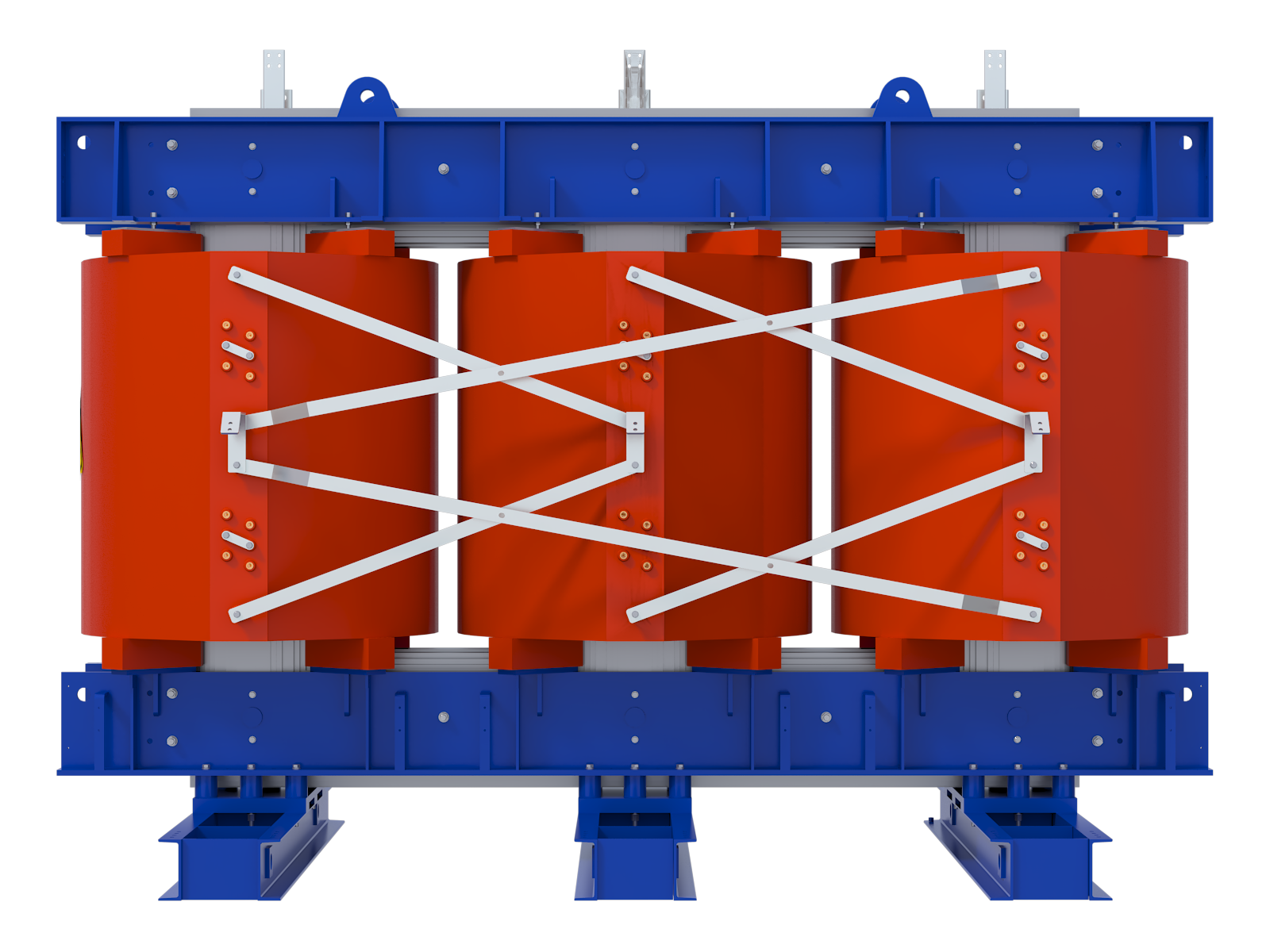

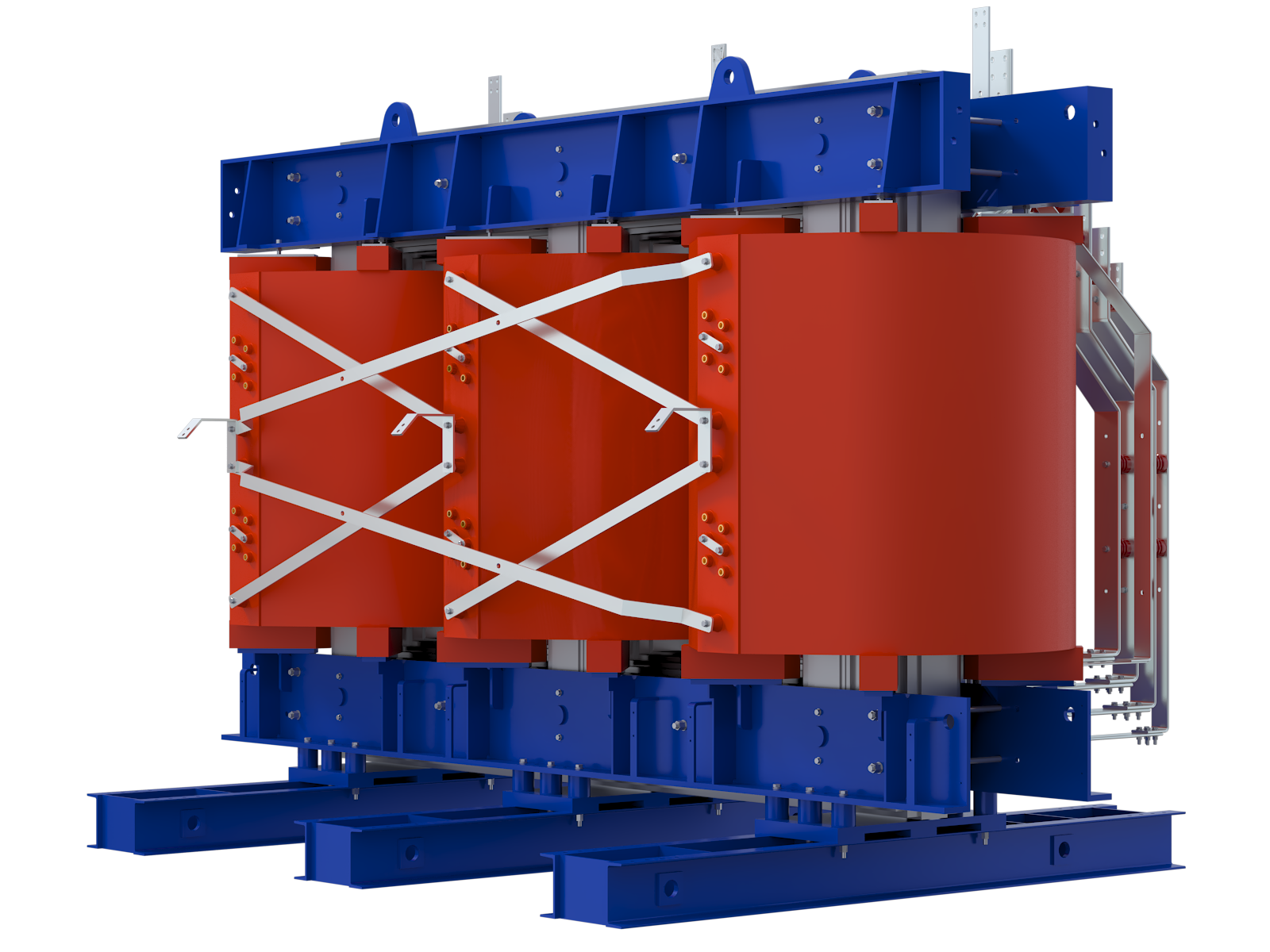

ZSCB Series Polysilicon Reduction Furnace TransformerTransformer
This transformer is pivotal in polysilicon production, stepping down grid voltage to the low-voltage, high-current power required by reduction furnaces.
-
With high-voltage ratings up to 20kV, down to 0.25kV and a maximum capacity of 25,000kVA, it ensures a continuous and stable power supply for furnace heating processes in the photovoltaic industry.
Core Advantages & Features
-
High Insulation ReliabilityEnsures stable operation under demanding conditions.
01 -
Energy-Saving PerformanceLow no-load loss increases efficiency.
02 -
Low Partial DischargeMinimal partial discharge extends service life.
03 -
Strong Short-Circuit EnduranceResists grid disturbances and electrical shocks effectively.
04
Technical Parameters
| Basic Parameters | |
|---|---|
| Operating conditions | Indoor installation |
| Model | ZSCB |
| Capacity | 3150~25000 kVA |
| Rated voltage | High voltage: 10 kV, 20 kV Low voltage: 3.0 kV, 1.4 kV, 0.65 kV, 0.4 kV, 0.25kV |
| Impedance | 6~10% |
| Insulation class | Class F, Class H |
| Connection group | Diii |
| Insulation level | 10 kV: LI75AC35/LI40AC10 20 kV: LI125AC50/LI40AC10 |
Executive standards | GB/T 10228-2023 technical parameters and requirements for dry-type power transformers GB/T 1094.11-2022 power transformers - part 11: dry-type transformers |
