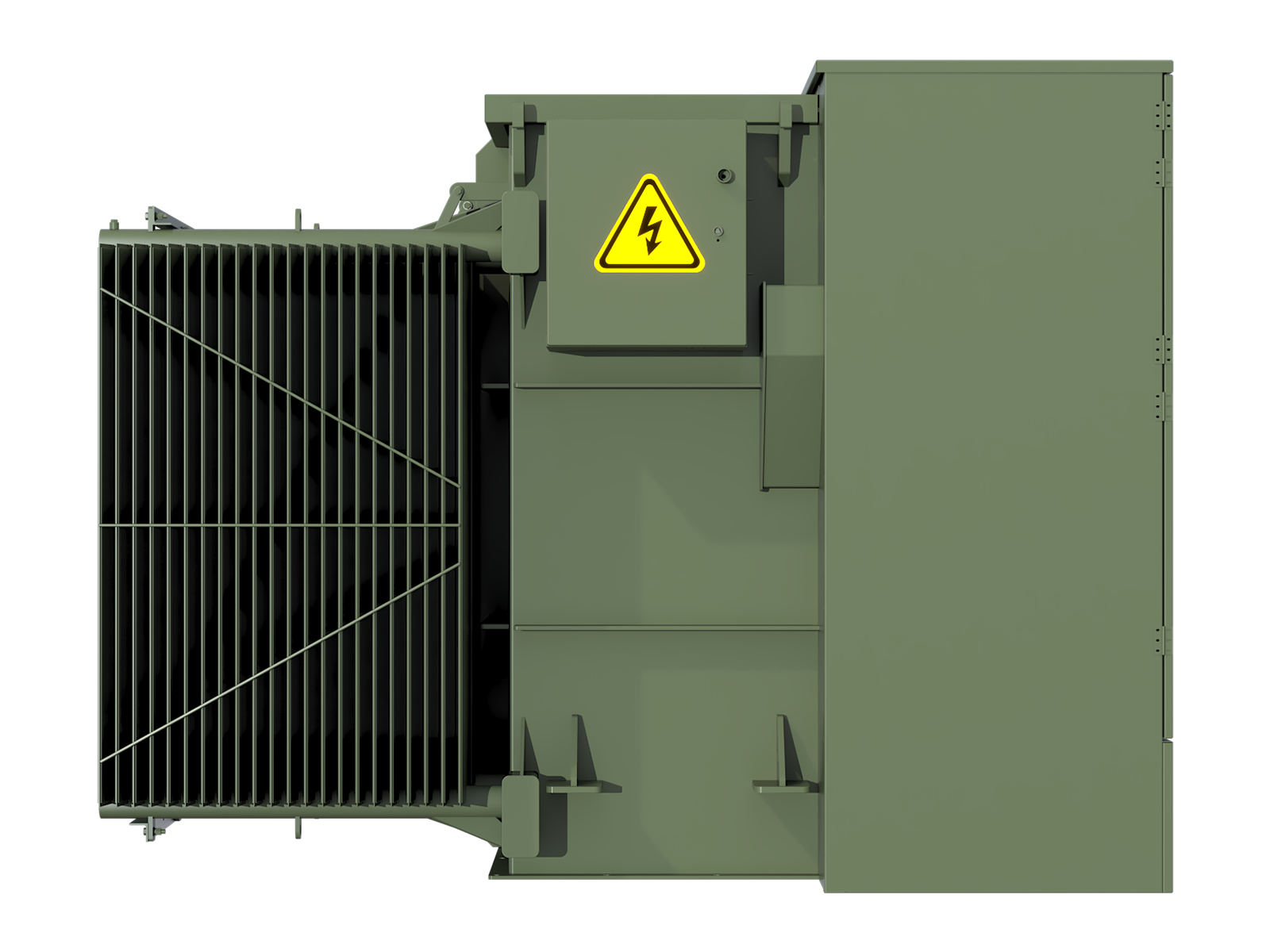

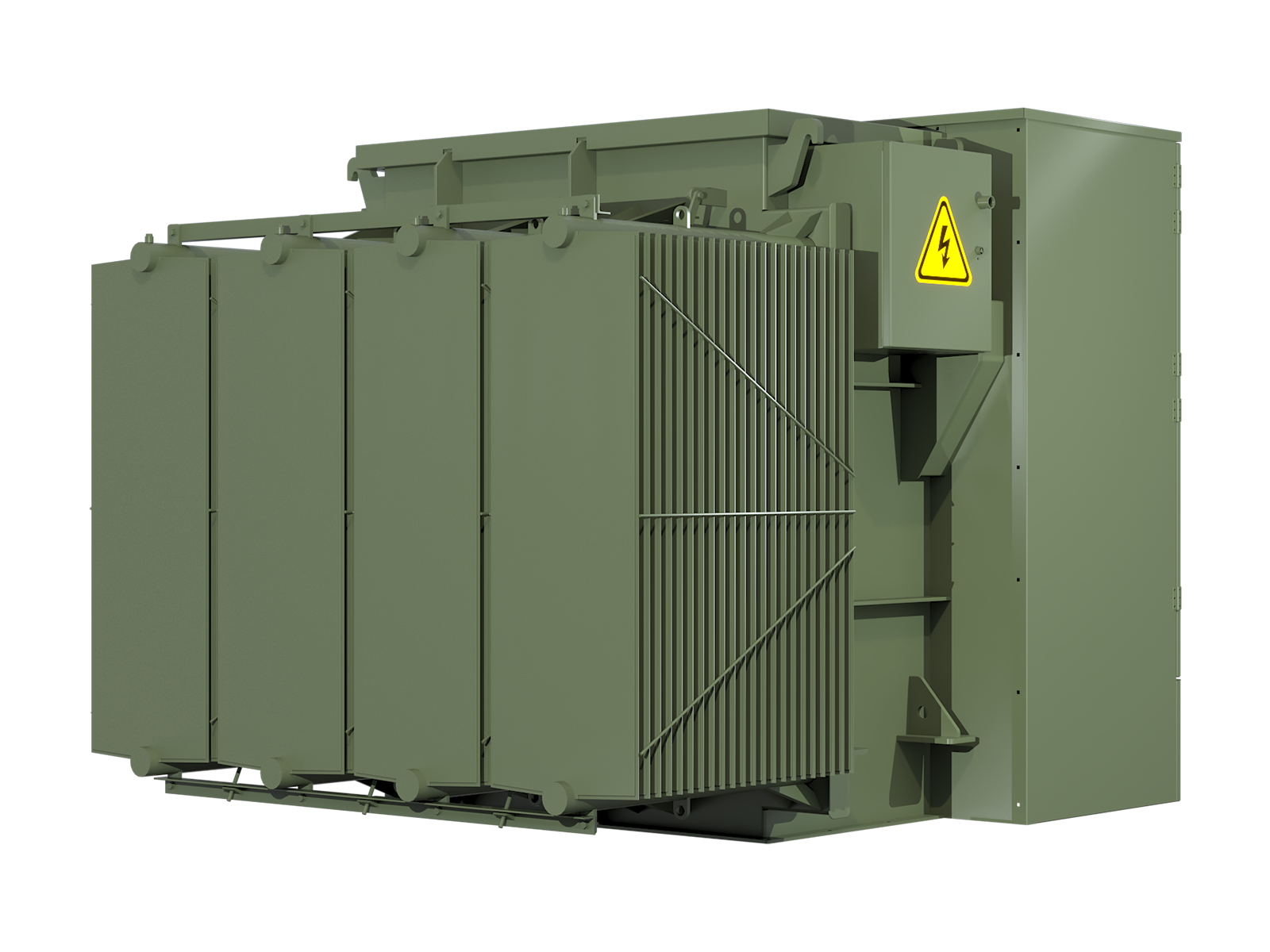

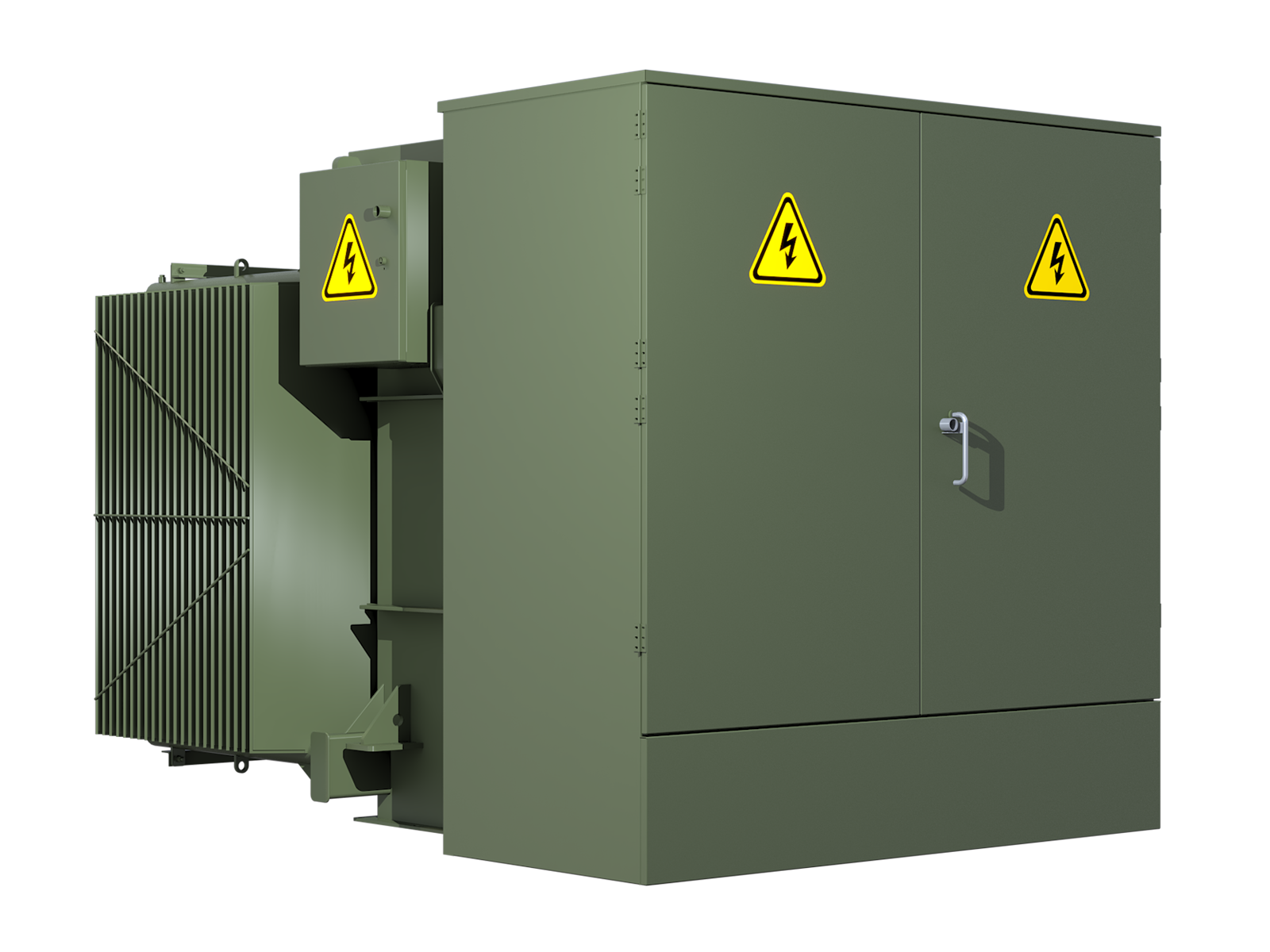

ZGSL New Energy North American Type TransformerTransformer
This product is designed for 60Hz North American power systems below 40kV, with capacities from 225 to 5000kVA. It is a standard American-style pad-mounted transformer for export markets.
-
It integrates current-limiting fuses, composite switches, and IEEE-compliant accessories like pressure gauges and temperature controllers for comprehensive protection and reliability.
Core Advantages & Features
-
Compact & Flexible DesignSmall footprint with easy installation and high adaptability.
01 -
Fully Insulated & SealedSafe, reliable, and maintenance-free structure.
02 -
Low Noise, Low Loss CoreRobotically stacked 45° mitered joint core reduces losses and noise.
03 -
High-Performance HV CoilAutomatic winding with E-class adhesive insulation ensures conductivity and durability.
04 -
Efficient LV CoilFoil winding with argon-protected welding and F-class insulation improves electrical strength.
05 -
Reliable Robotic WeldingEnsures precision and long-term durability.
06 -
Advanced Coating SystemRobotic painting guarantees uniform film, strong adhesion, and corrosion resistance.
07 -
Integrated Coil WindingBoth high- and low-voltage coils are wound directly on the core column for stability.
08
Technical Parameters
| Basic Parameters | |
|---|---|
| Operating conditions | Outdoor installation |
| Model | ZGSL |
| Capacity | 225~5000 kVA |
| Rated voltage | High voltage / low voltage: 15 kV, 25 kV, 34.5 kV / 0.4 kV, 0.48 kV, 0.415 kV, 0.6 kV, 0.69 kV |
| Impedance | 3~7% |
| Connection group | Dyn1/YNd1/Yyn0 |
Executive standards | 1. IEEE C57.12.00 2. IEEE C57.12.28 3. IEEE C57.12.34 4. IEEE C57.12.50 |
Product Documents
-
Product Brochure
-
Oil-Immersed Power Transformer
2025-09-02
Download PDF
