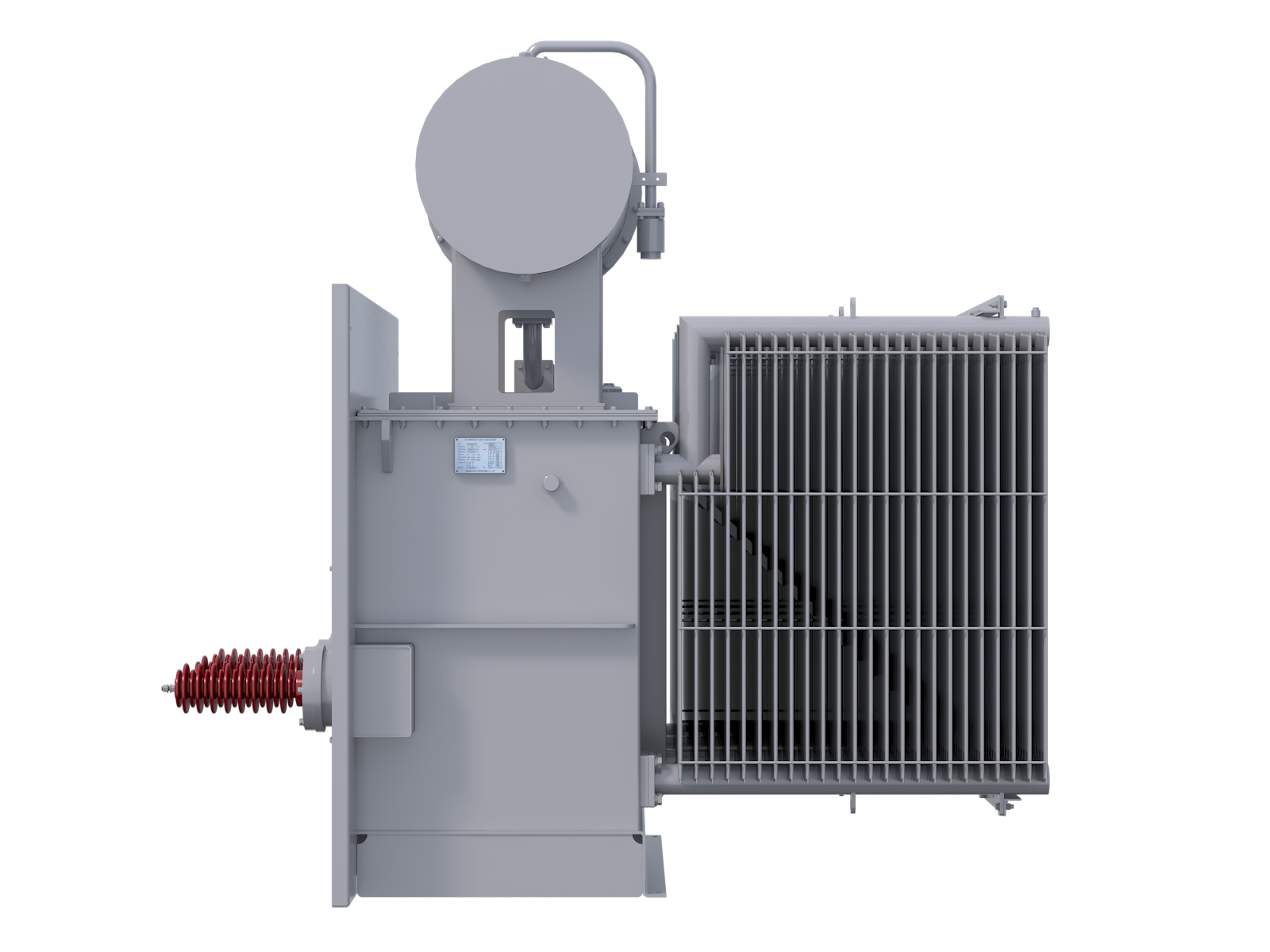

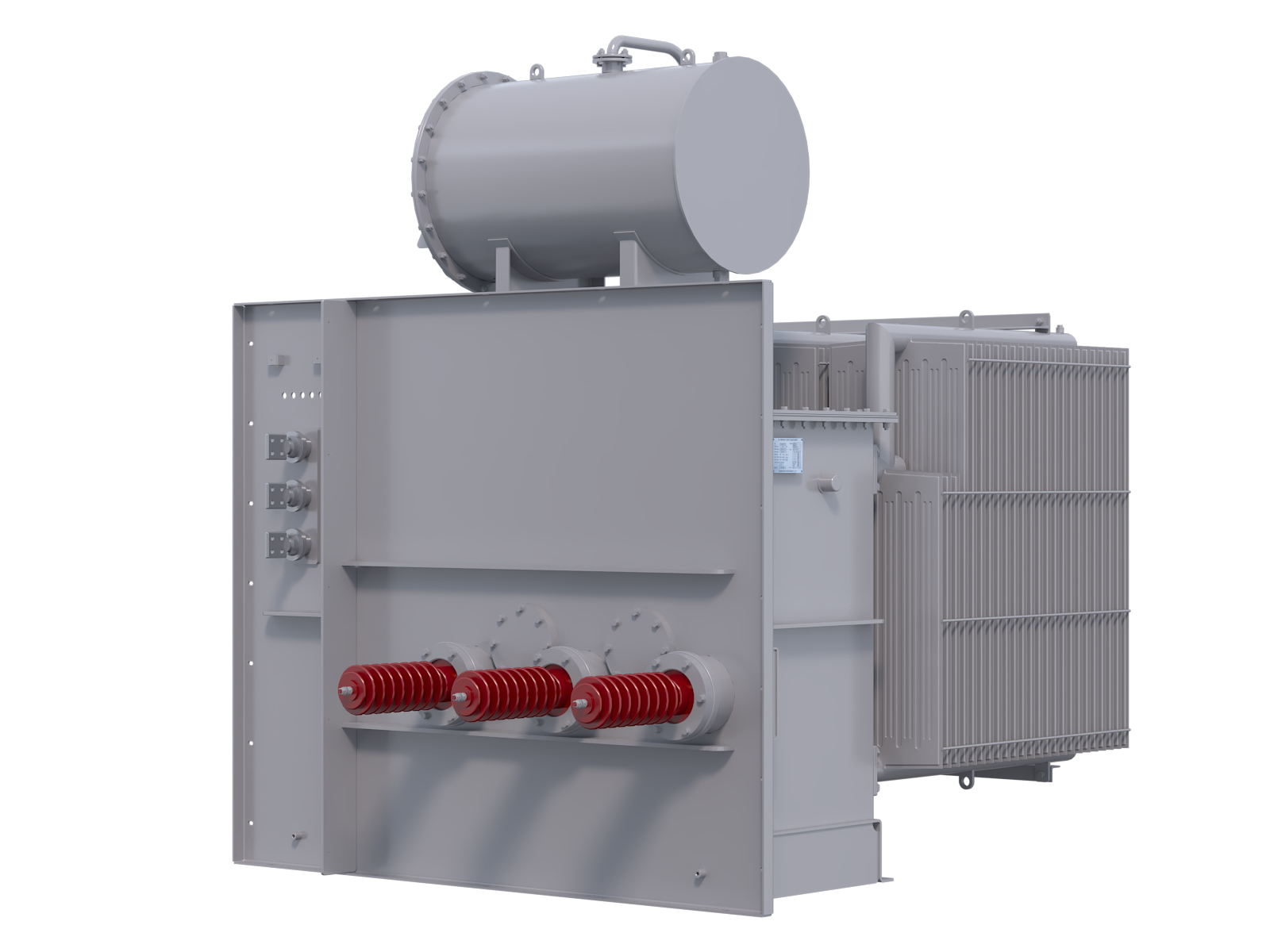

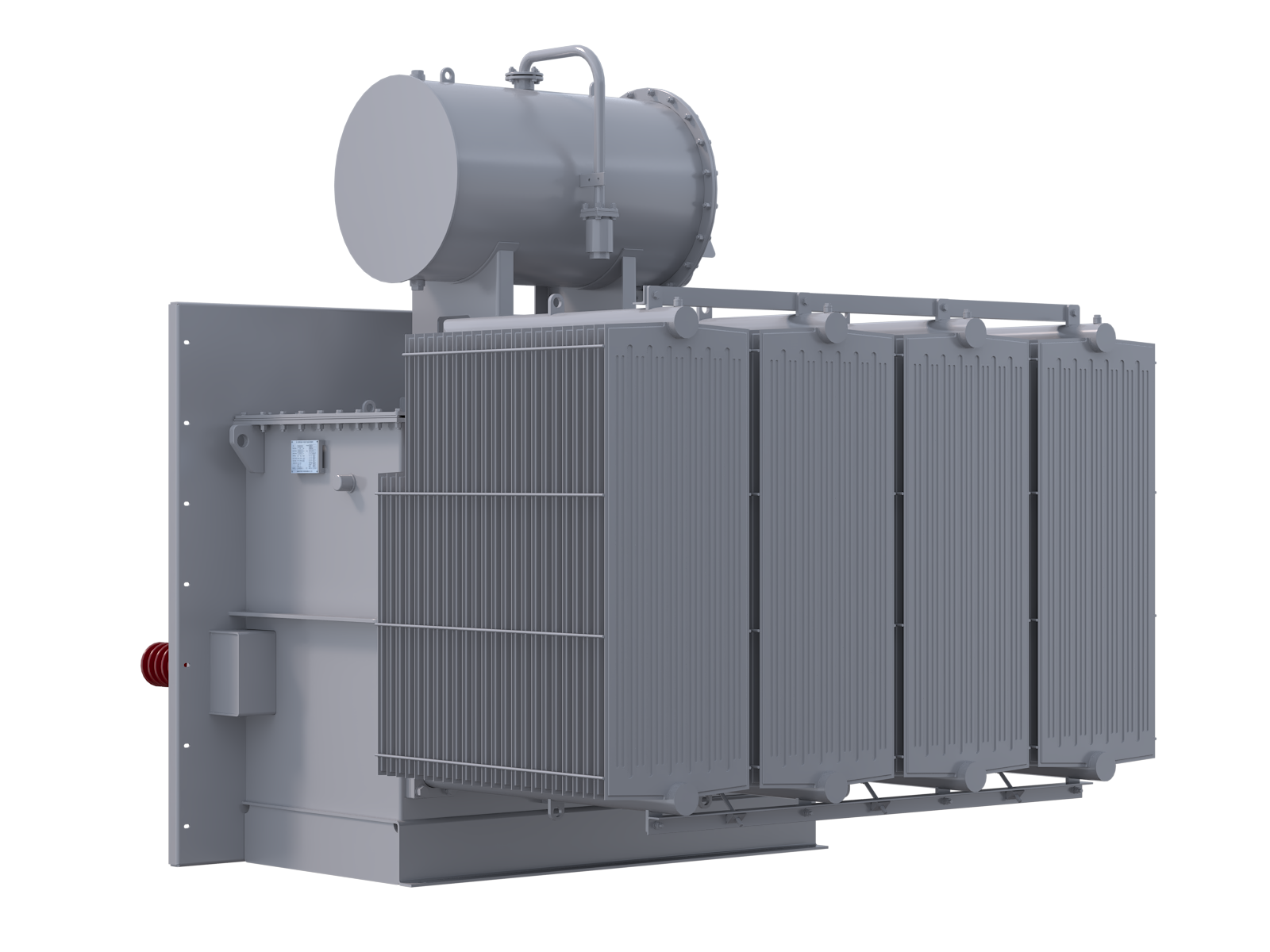

S-Series New Energy Chinese Type TransformerTransformer
The S-Series is a high-capacity (4000-10000 kVA) step-up transformer engineered for utility-scale photovoltaic and wind power plants. It efficiently converts generator-level low voltage to transmission-level high voltage (up to 40kV), facilitating efficient grid injection.
-
Engineered for renewable generation's variable loads, these transformers deliver high reliability and stability. Used as primary step-up units in wind/solar farms, they transmit power to grid substations via cable or overhead line.
Core Advantages & Features
-
Optimized for PV SystemsDesigned for photovoltaic applications with a compact, automated configuration.
01 -
Efficient Heat DissipationExternal radiator and oil conservator ensure temperature stability and extended service life.
02 -
Safe Busbar ConnectionHigh-voltage switch connected to transformer via busbar for enhanced operational safety.
03 -
Low Loss & Low Noise CoreAutomatic core stacking reduces losses, current, and noise.
04 -
High-Strength HV CoilWound using automatic machinery with DPE glue-coated paper insulation.
05 -
Low-Resistance LV CoilAutomatic foil winding with argon-protected welding ensures excellent electrical performance.
06 -
Reliable Robotic WeldingRobotically welded tank guarantees consistent quality.
07 -
Corrosion-Resistant FinishRobotic painting provides uniform thickness and strong adhesion.
08 -
Compact Coil ConfigurationHigh and low-voltage coils wound together for improved efficiency.
09
Technical Parameters
| Basic Parameters | |
|---|---|
| Operating conditions | Outdoor installation |
| Model | S18, S20, S22 |
| Capacity | 4000 kVA~10000 kVA |
| Rated voltage | High voltage / low voltage: 38.5 kV, 37 kV, 36.75 kV, 35 kV / 0.69 kV, 0.8 kV, 0.95 kV, 1.14 kV |
| Impedance | 7~10% |
| Connection group | Dyn11 |
| Insulation level | LI200AC85/AC5 |
Execution standards | 1. JB/T10217-2000 combined transformer |
