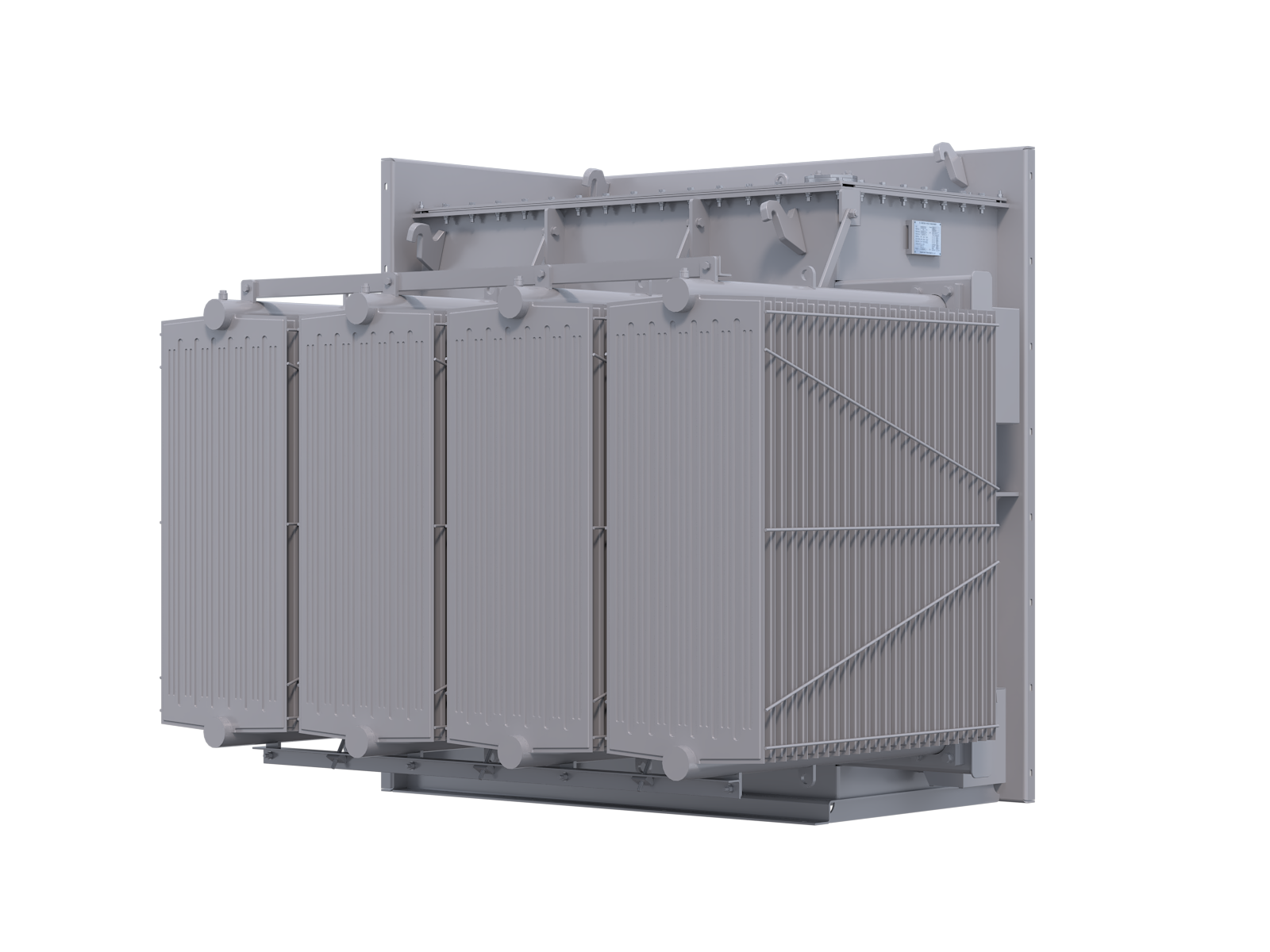

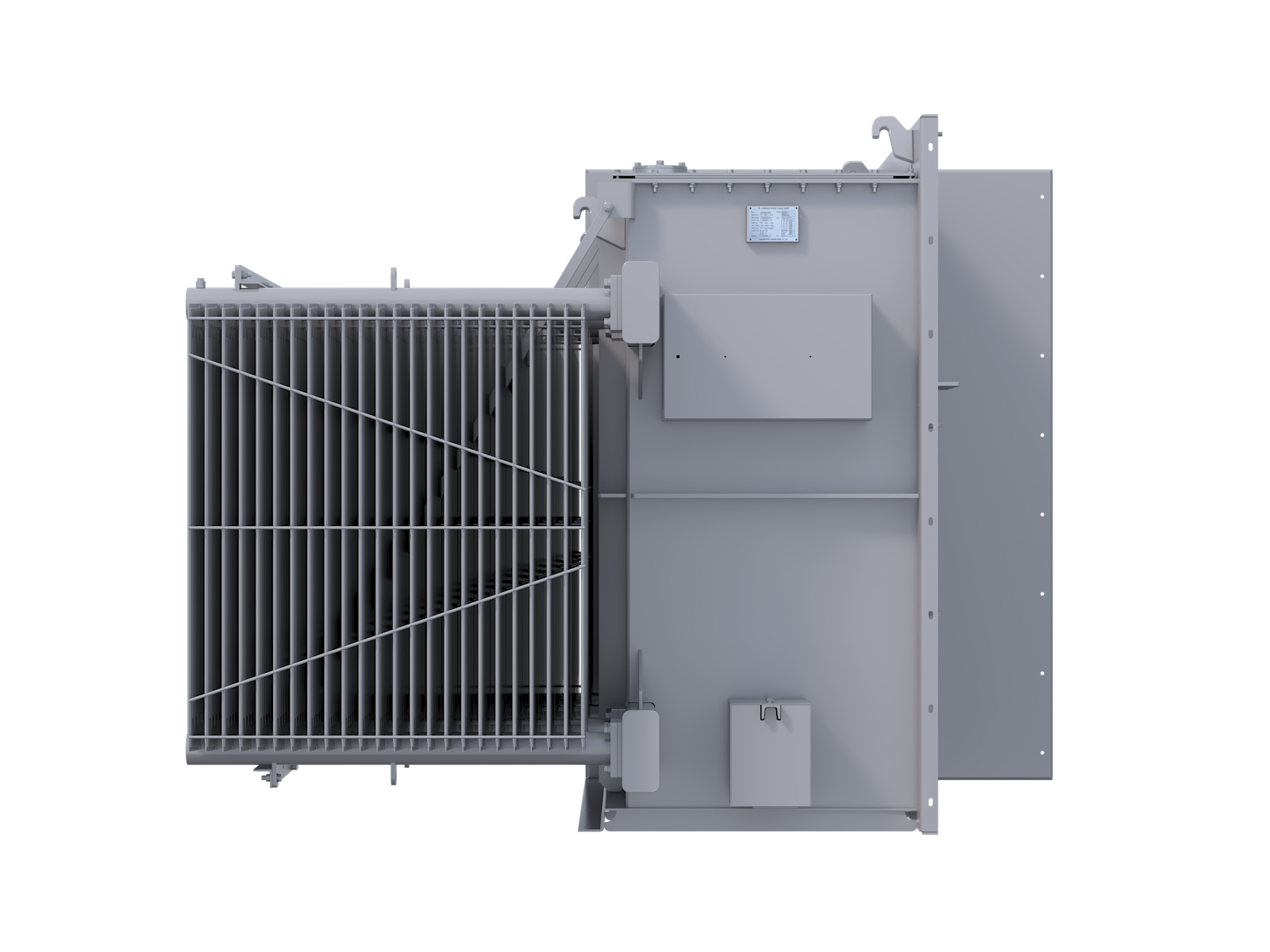

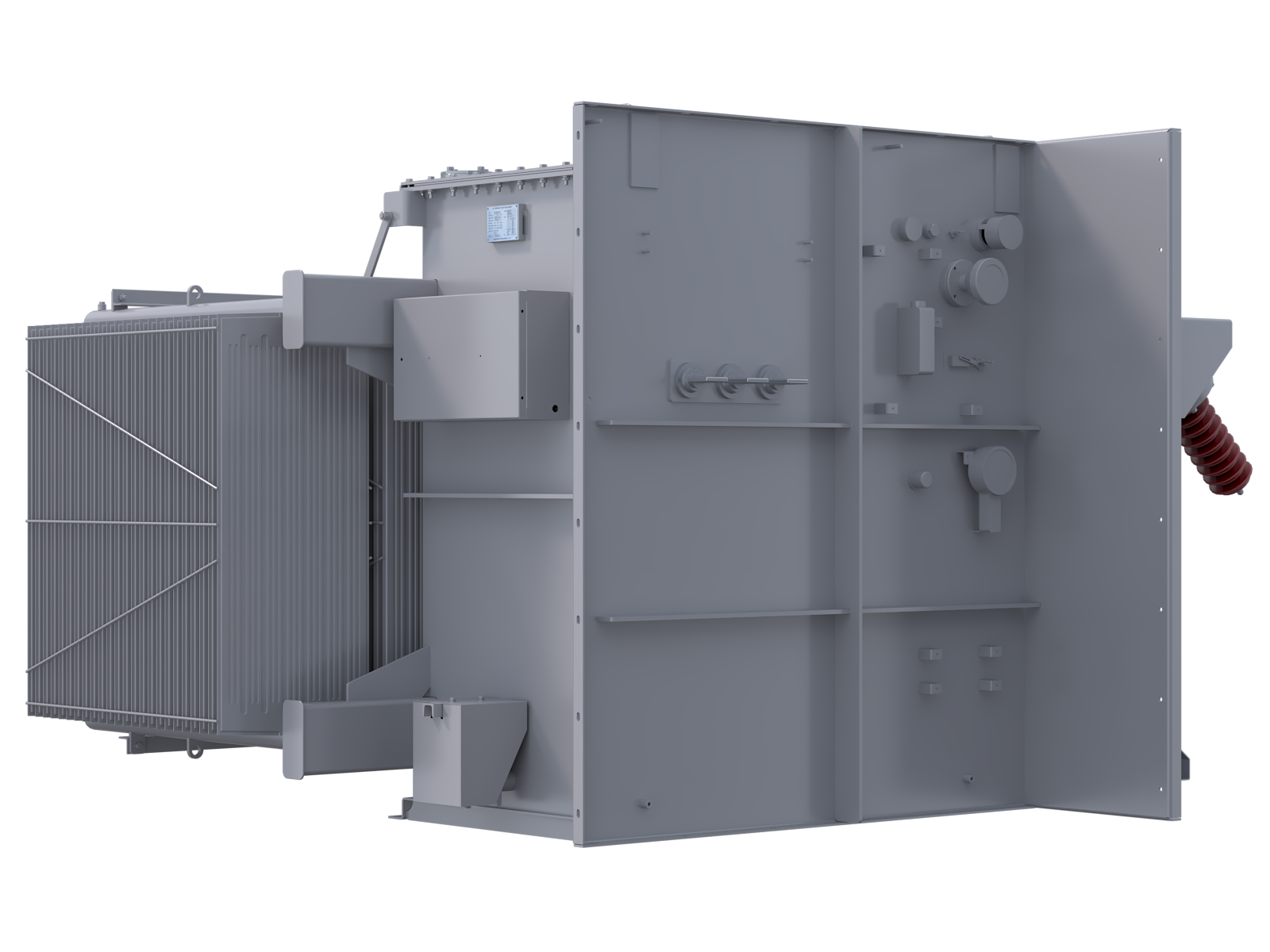

ZGS New Energy Integrated TransformerTransformer
The ZGS series is an integrated transformer specifically designed for new energy power generation systems below 40kV. With a capacity range of 500-4000kVA, it is ideal for photovoltaic power plants.
-
It integrates the transformer, load switch, and high-voltage fuse within a single tank using transformer oil as the insulating and cooling medium, offering a compact and efficient solution for renewable energy applications.
Core Advantages & Features
-
Compact Integrated DesignCombines transformer, load switch, and high-voltage fuse in one enclosure, minimizing footprint.
01 -
Fully Sealed & Insulated StructureEnhances safety and prevents electric shock risks.
02 -
Low Loss & Low Noise CoreRobotically stacked cores reduce no-load loss, current, and operational noise.
03 -
High-Performance HV CoilWound on an automatic machine using high-density DPE paper insulation for improved conductivity and short-circuit strength.
04 -
Durable LV Coil ConstructionAutomatic foil winding with argon-protected internal welding ensures low resistance and high mechanical integrity.
05 -
Robotic Welding QualityOil tank welded by robots for precision and reliability.
06 -
Advanced Coating SystemRobotic painting ensures even film thickness, strong adhesion, and corrosion resistance for harsh environments.
07 -
Direct Core Column WindingBoth high-voltage and low-voltage coils are wound directly on the core for superior stability.
08
Technical Parameters
| Basic Parameters | |
|---|---|
| Operating conditions | Outdoor installation |
| Model | ZGS22\ZGS20\ZGS18 |
| Capacity | 500~4000 kVA |
| Rated voltage | High voltage/low voltage：38.5、37、36.75、35/0.8 kV |
| Impedance | 6.5~7% |
| Connection group | Dy11//Yd11 |
| Insulation level | LI200AC85/AC5 |
Execution standards | 1.JB/T10217-2000 combined transformer 2.GB1094.1-2013 power transformers 3.GB3804-1990 3~63kV AC voltage load switch 4.GB7251.1-1997 Low-voltage switchgear and controlgear part 1 type-tested and partially type-tested switchboard |
