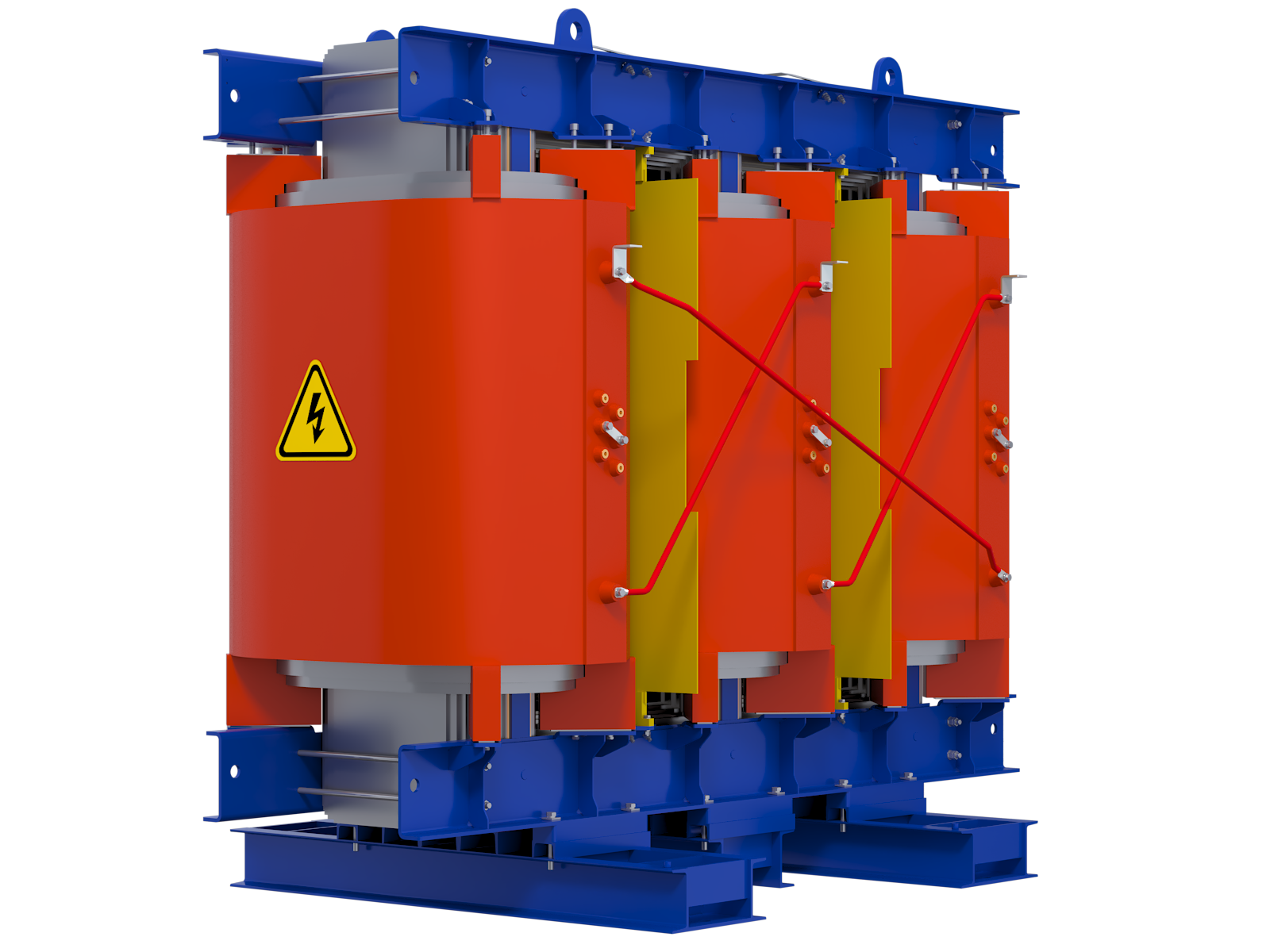

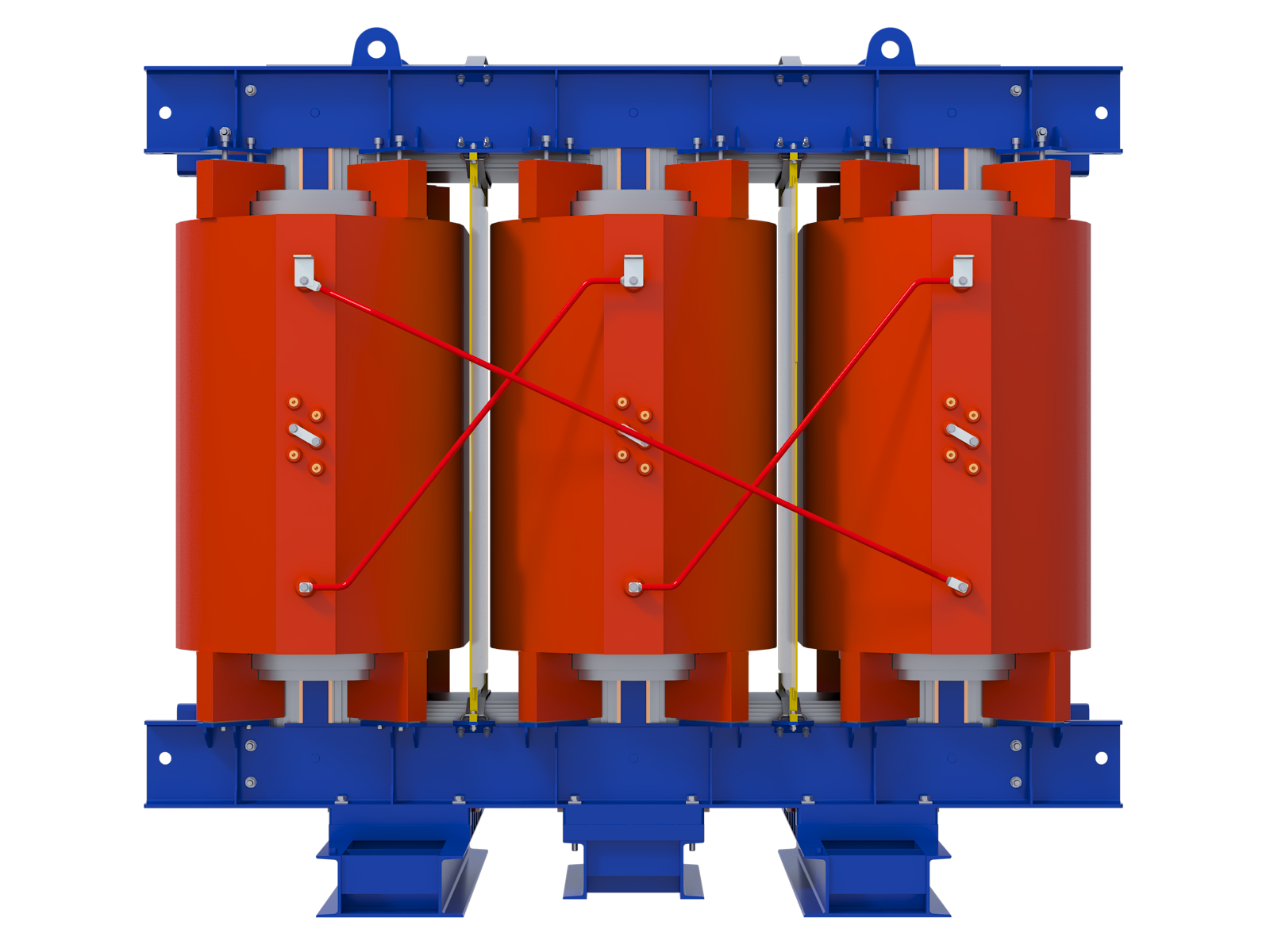

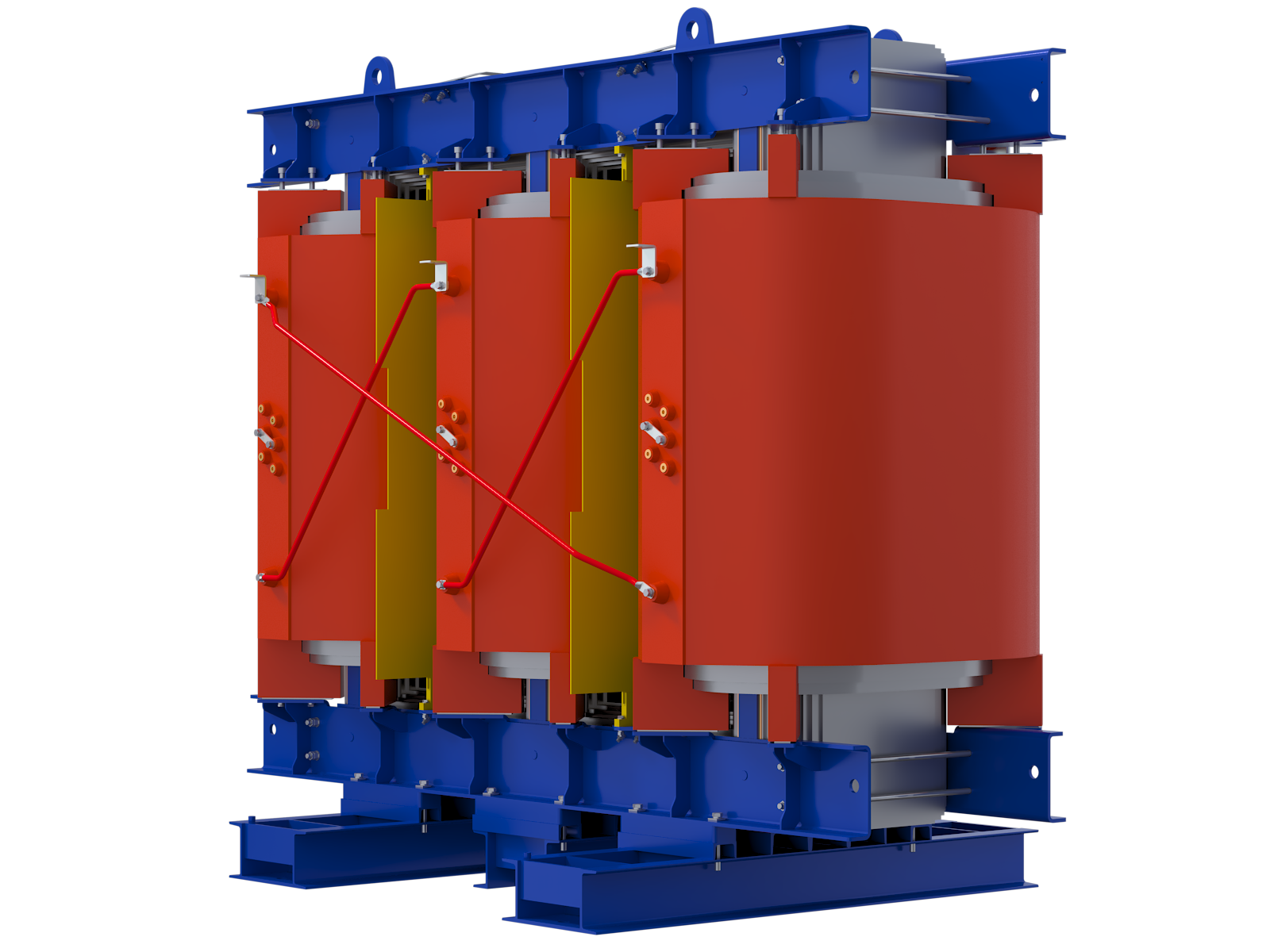

SCB Series Wind-Solar Energy Storage Dry-TypeTransformer
This specialized transformer is the core power conversion equipment for renewable energy and storage systems. It addresses voltage compatibility and ensures safe, efficient power transmission.
-
With an innovative winding structure and compact design, it is highly reliable and adaptable, offering customized solutions for the specific needs of wind, solar, and energy storage applications.
Core Advantages & Features
-
Enhanced ReliabilityHigh-voltage leads and low-voltage busbars extracted from the coil base for stable operation and reduced maintenance.
01 -
Energy-Efficient DesignMinimizes transmission losses and boosts renewable system efficiency.
02 -
Superior Cooling PerformanceMulti-layer air ducts enhance heat dissipation, allowing 30% overload capacity under forced-air cooling.
03 -
Compact ConstructionSpace-efficient design ideal for energy storage and renewable installations.
04 -
Smart Monitoring CapabilityEquipped with sensors for real-time monitoring and remote control of voltage, current, and temperature.
05
Technical Parameters
| Basic Parameters | |
|---|---|
| Operating conditions | Indoor installation |
| Model | SCB Series |
| Capacity | 800~25000 kVA |
| Rated voltage | High voltage: 10 kV, 20 kV, 35 kV Low voltage: 0.69 kVA, 0.72 kVA, 1.14 kVA |
| Impedance | 6~10% |
| Insulation class | Class F, Class H |
| Connection group | Dy11 |
| Insulation level | 10 kV: LI75AC35/AC5, 20 kV: LI125AC50/AC5, 35 kV: LI170AC70/AC5 |
Executive standards | GB/T 10228-2023 technical parameters and requirements for dry-type power transformers GB/T 1094.11-2022 power transformers - Part 11: dry-type transformers |
