Reliable Power Distribution for Wastewater Treatment: Building Resilient Infrastructure with KYN Series MV Switchgear

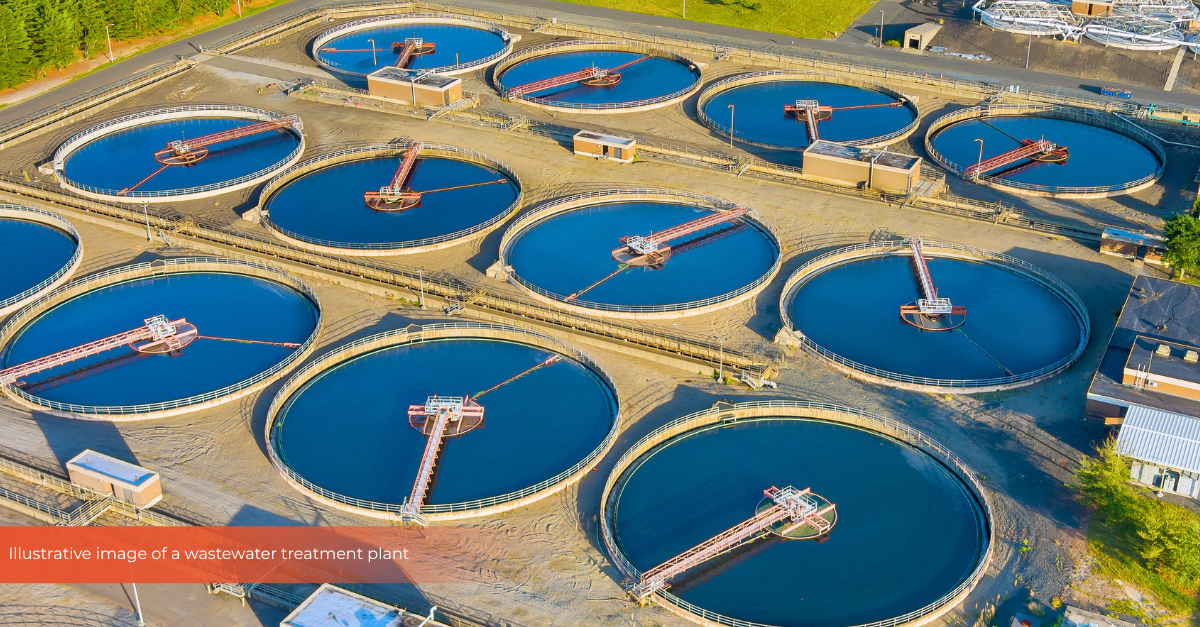

Reliability in water infrastructure is about more than technical specifications - it is about ensuring the continuous operation of critical treatment processes. Heavy-duty pumps, aeration blowers, and other core systems often run around the clock, and even a brief interruption in power supply can disrupt treatment performance, affect plant efficiency, and create environmental compliance risks.

Power distribution systems in these facilities must also operate in demanding conditions. High humidity, corrosive gases, and continuous motor loads place significant stress on medium-voltage equipment, increasing the need for safety, thermal stability, and long-term mechanical durability.

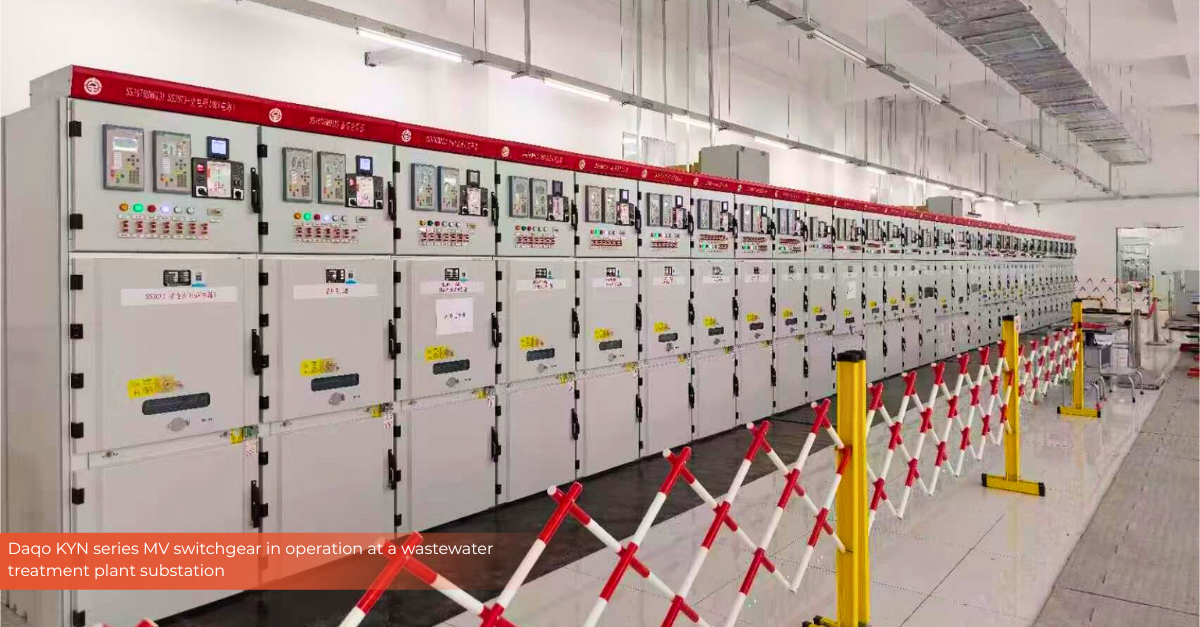

Changjiang Electric, the medium-voltage subsidiary of Daqo Group, developed the KYN series air-insulated switchgear to address these challenges in industrial and municipal infrastructure environments.

Enhanced protection under extreme fault conditions

In medium-voltage systems, internal short-circuit faults can generate electric arcs with temperatures exceeding 20,000°C. These events can cause a rapid rise in internal pressure, creating serious risks for both equipment and operating personnel.

The KYN series switchgear is designed with reinforced structures and optimized pressure-relief channels to improve safety under arc-fault conditions. Its internal arc resistance reaches up to 1 second, compared with the more common industry benchmark of 0.5 seconds. In the event of an arc fault, the cabinet's top-mounted pressure-relief system directs high-temperature gases upward, helping prevent door rupture or structural damage and significantly improving operator protection.

The cabinet frame is also reinforced to maintain structural integrity under extreme fault conditions.

Reduced thermal stress for long-term operation

Wastewater treatment plants rely heavily on motor-driven equipment such as pumps and blowers. Because these systems often operate continuously, switchgear must withstand sustained high current levels over long periods, which can increase thermal stress.

To support stable operations, the KYN switchgear incorporates optimized contact box cooling structures and an improved ventilation design for more effective heat dissipation. Carefully engineered busbar structures also help reduce contact resistance, minimizing localized overheating and supporting stable long-term performance.

Robust structure for industrial environments

In wastewater applications, mechanical strength and ease of maintenance are both important. Equipment must not only withstand harsh operating conditions, but also allow safe and efficient servicing over its lifecycle.

The KYN series features a reinforced cabinet frame with high-strength structural connections to enhance rigidity and long-term durability. Cabinet doors are fitted with alloy hinges and can open to approximately 180 degrees, providing convenient access for inspection and maintenance.

The switchgear also adopts the separate compartment design to simplify installation and servicing. Because there are no external bolts on the cabinet sides, individual panels can be removed or replaced without affecting adjacent units. This helps improve maintenance efficiency while providing flexibility for future expansion or system upgrades.

Digital monitoring capabilities for smarter maintenance

As power systems become more digital and data-driven, medium-voltage switchgear is increasingly expected to support condition-based and predictive maintenance strategies.

Changjiang Electric's KYN series can be equipped with optional monitoring functions, including breaker mechanical characteristic monitoring, spring charging motor current monitoring, wireless temperature measurement, and partial discharge detection.

These capabilities provide real-time visibility into key operating parameters, helping operators identify potential issues earlier and reduce the risk of unplanned outages. For critical infrastructure such as wastewater treatment, this added visibility can support more proactive maintenance and improved operational continuity.

Support reliable infrastructure development

Changjiang Electric's KYN series switchgear is certified to multiple international standards, including ASTA and CE, reflecting compliance with recognized requirements for electrical performance, safety, and quality.

The products are widely deployed across energy, industrial manufacturing, and municipal infrastructure projects. As investment in water treatment and environmental infrastructure continues to grow worldwide, the importance of reliable power distribution will only increase.

Changjiang Electric remains committed to supporting these projects with robust, high-quality medium-voltage solutions that help ensure stable operation of critical infrastructure.
